Accelerator & Brake Pedal ASSY: Components

Fig 1: Identifying Accelerator & Brake Pedal Assy Components (1 Of 2)
G04393051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

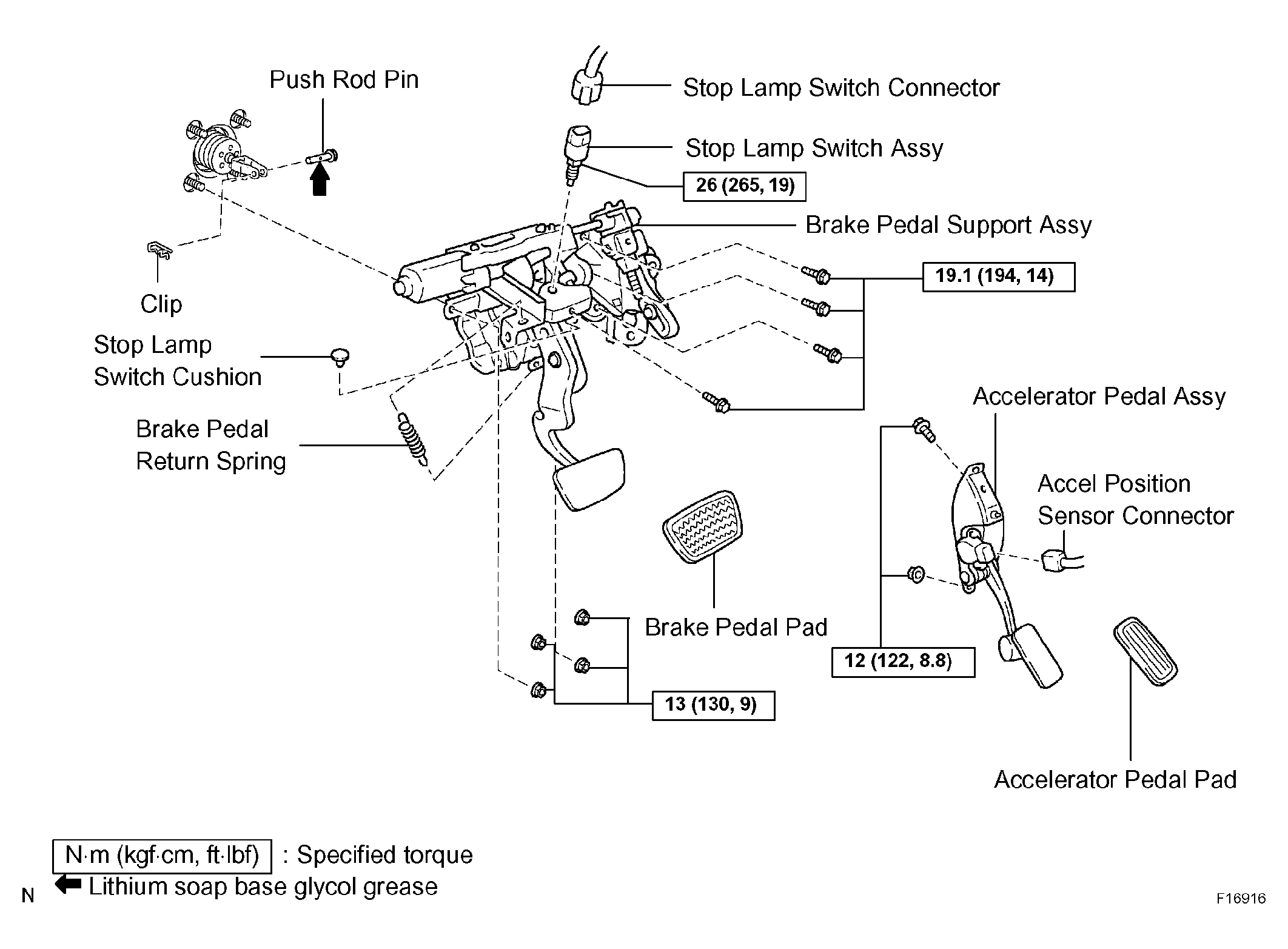

Fig 2: Identifying Accelerator & Brake Pedal Assy Components (2 Of 2)
G04393052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
