DTC C1251/51: Pump Motor Is Locked/Open Circuit In Pump Motor Ground: Wiring Diagram

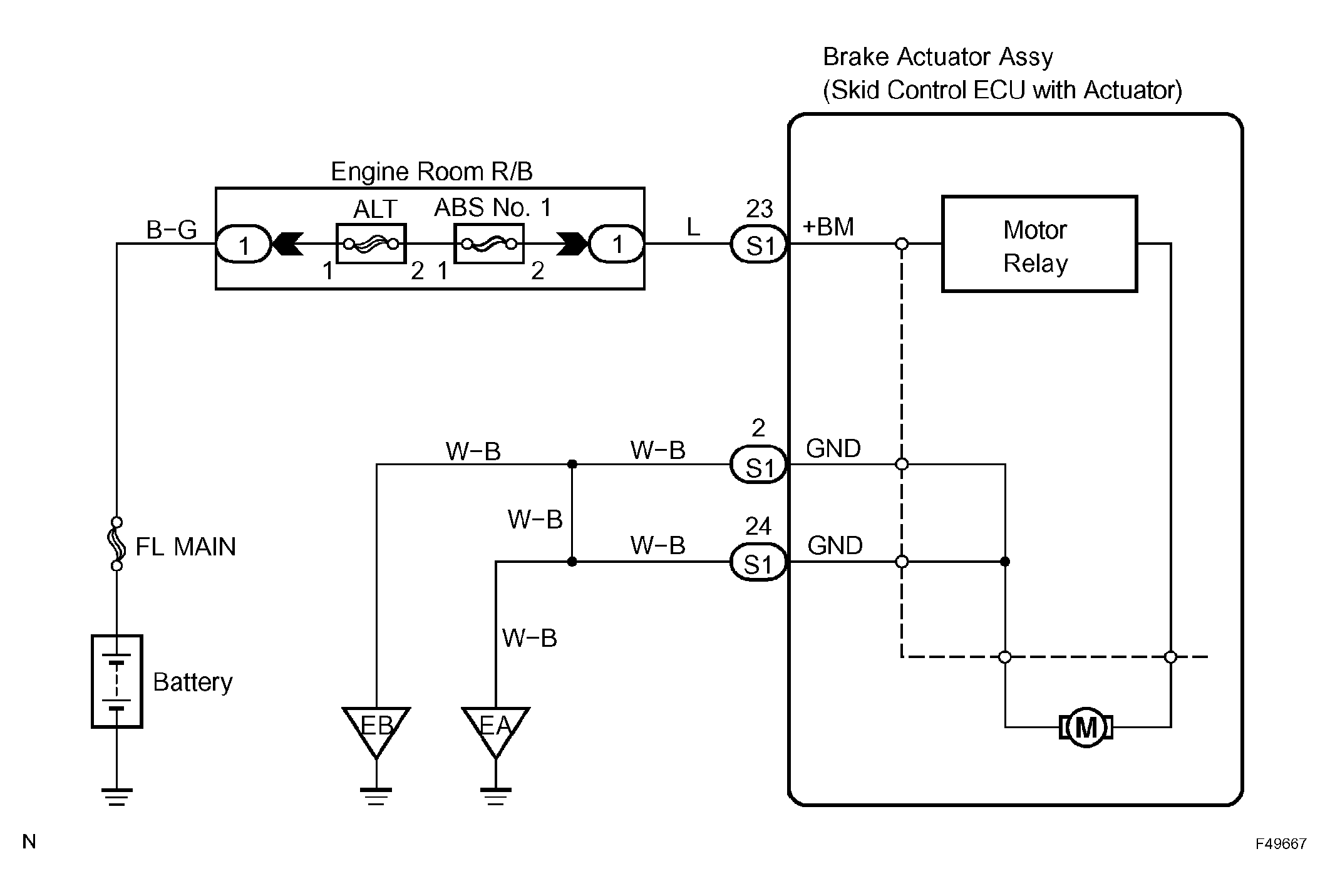

Fig 1: DTC C1251/51 - Wiring Diagram

G04389991

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
