DTC C1249/49: Open Circuit In Stop Light Switch Circuit: Wiring Diagram

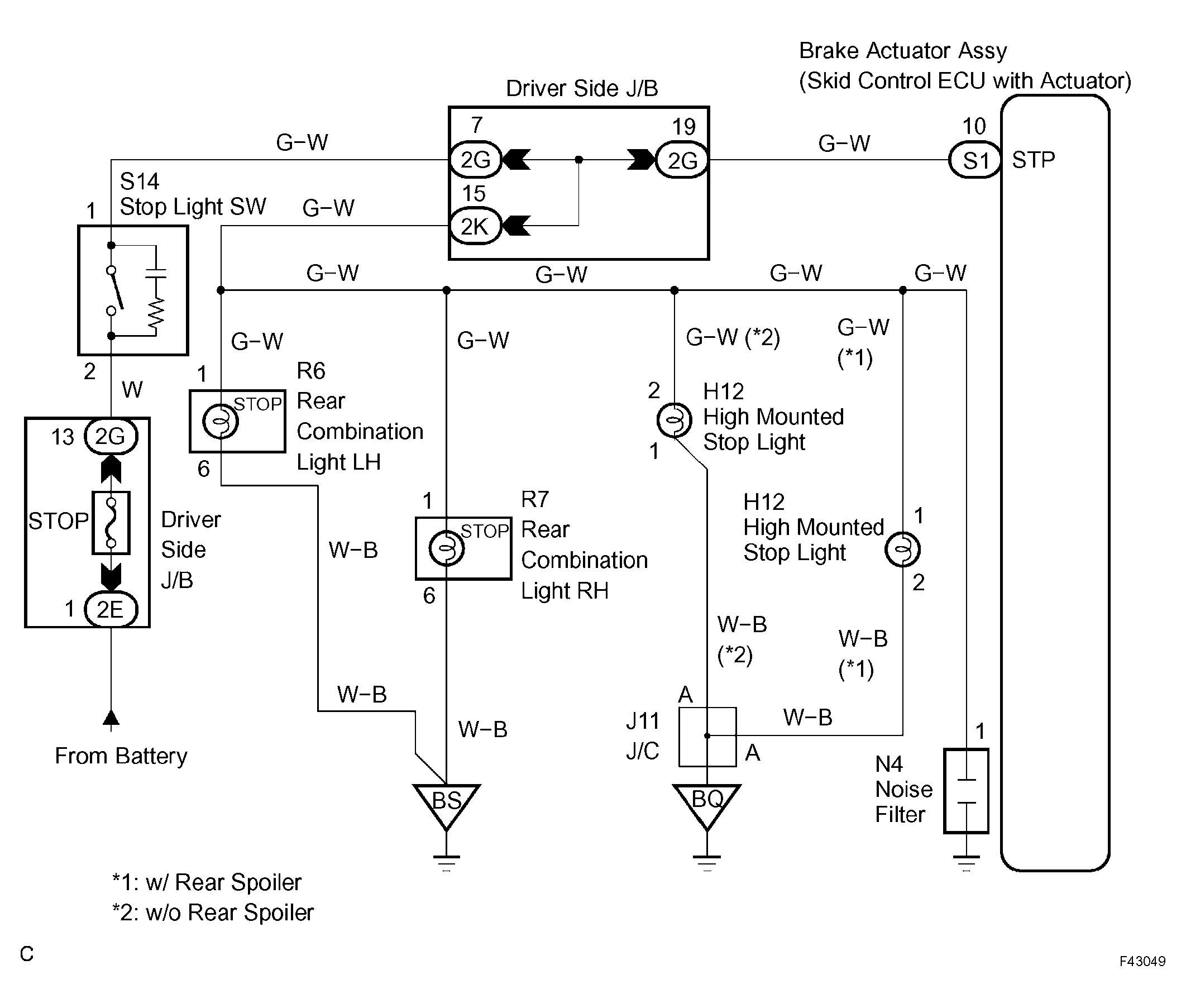

Fig 1: DTC C1249/49 - Wiring Diagram

G04389989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
