DTC C0278/11: Open Circuit In Abs Solenoid Relay Circuit; DTC C0279/12: Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

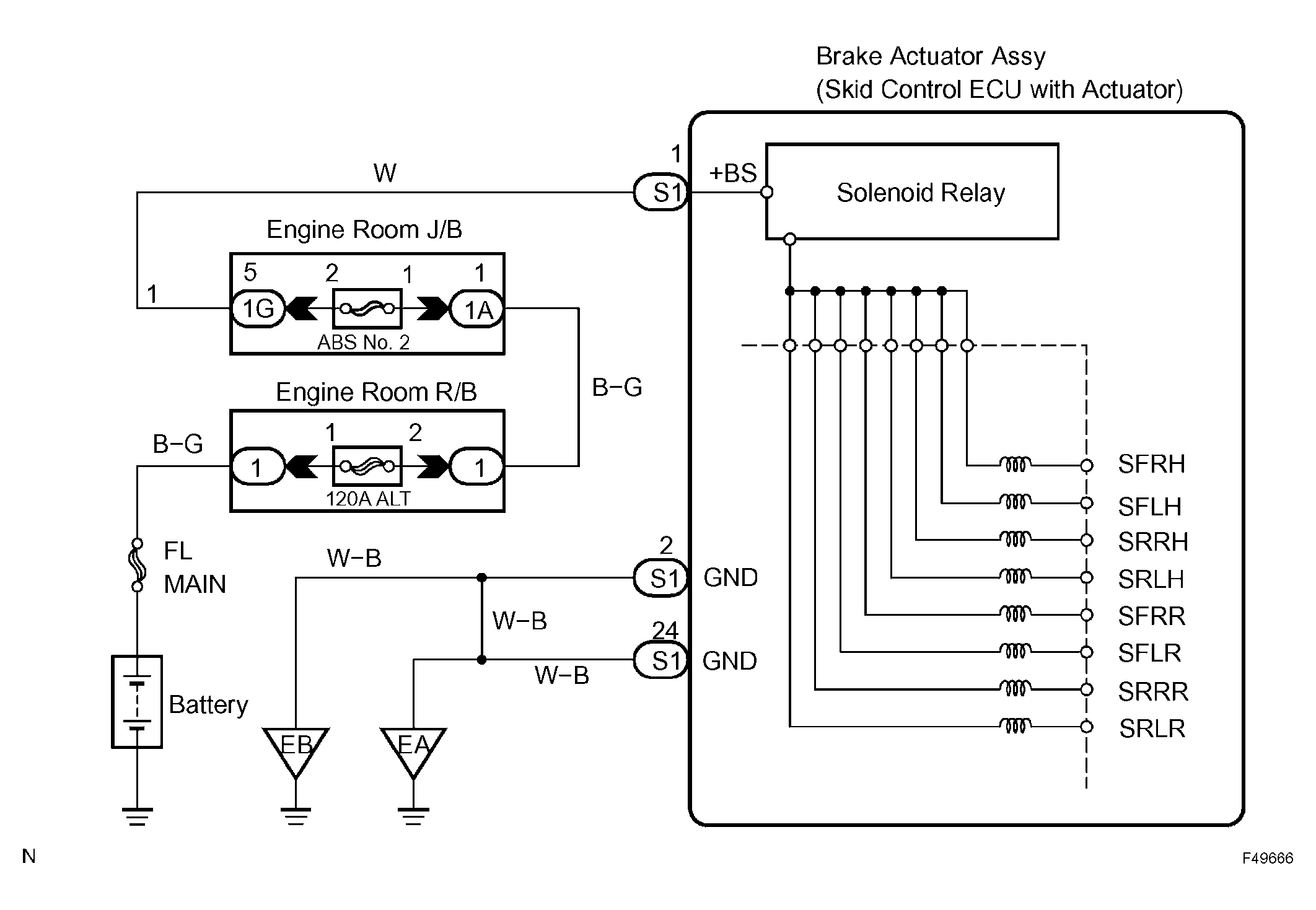

Fig 1: DTCs C0278/11, C0279/12 - Wiring Diagram
G04389983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
