DTC C0273/13: Open Circuit In Abs Motor Relay Circuit; DTC C0274/14: B+ Short Circuit In Abs Motor Relay Circuit: Wiring Diagram

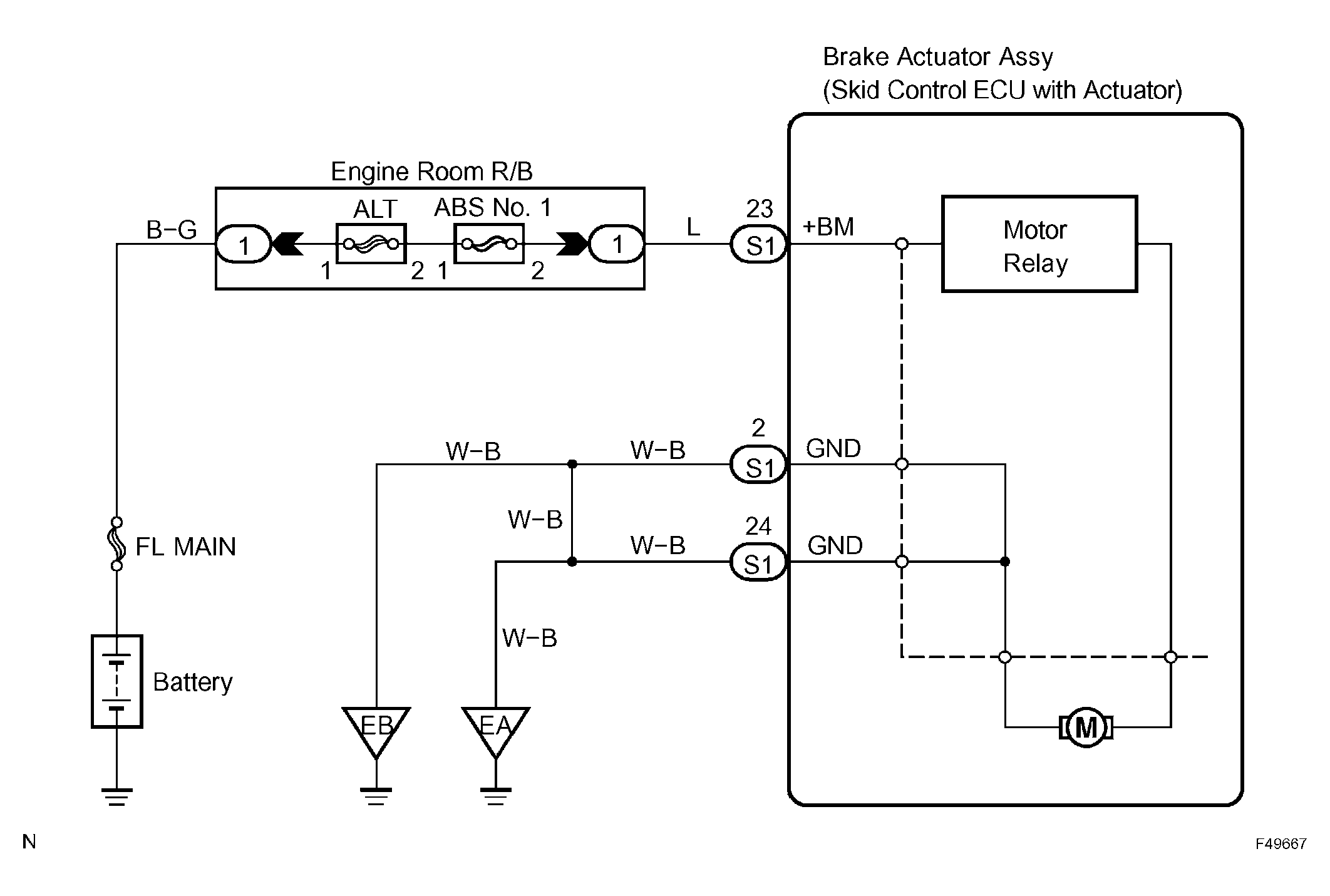

Fig 1: DTCs C0273/13, C0274/14 - Wiring Diagram
G04389981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
