DTC C0226/21 SFR Solenoid Circuit; DTC C0236/22 SFL Solenoid Circuit; DTC C0246/23 SRR Solenoid Circuit; DTC C0256/24 SRL Solenoid Circuit: Wiring Diagram

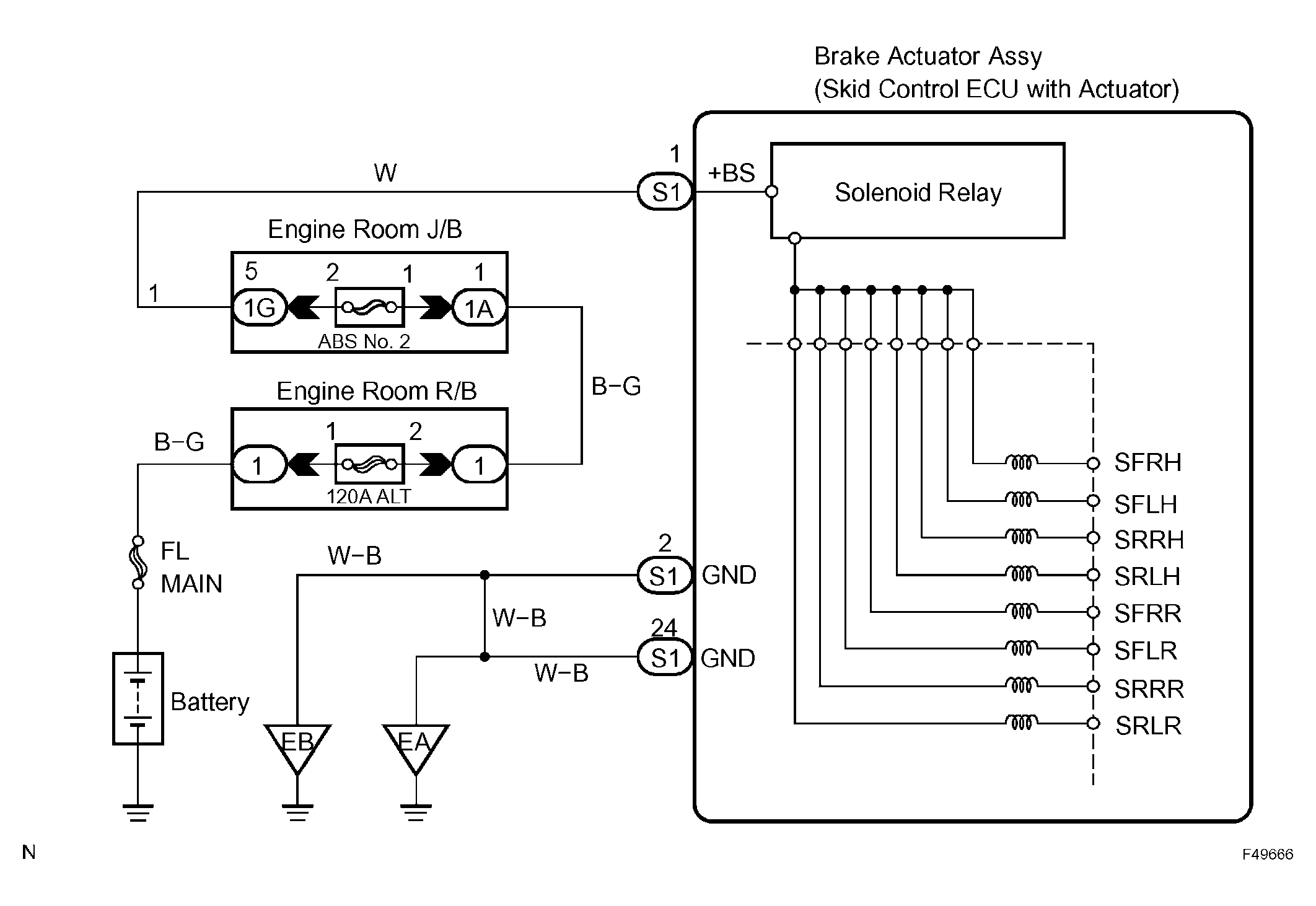

Fig 1: DTCs C0226/21, C0236/22, C0246/23, C0256/24 - Wiring Diagram
G04389980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
