Abs Warning Light Circuit (Remains On): Wiring Diagram

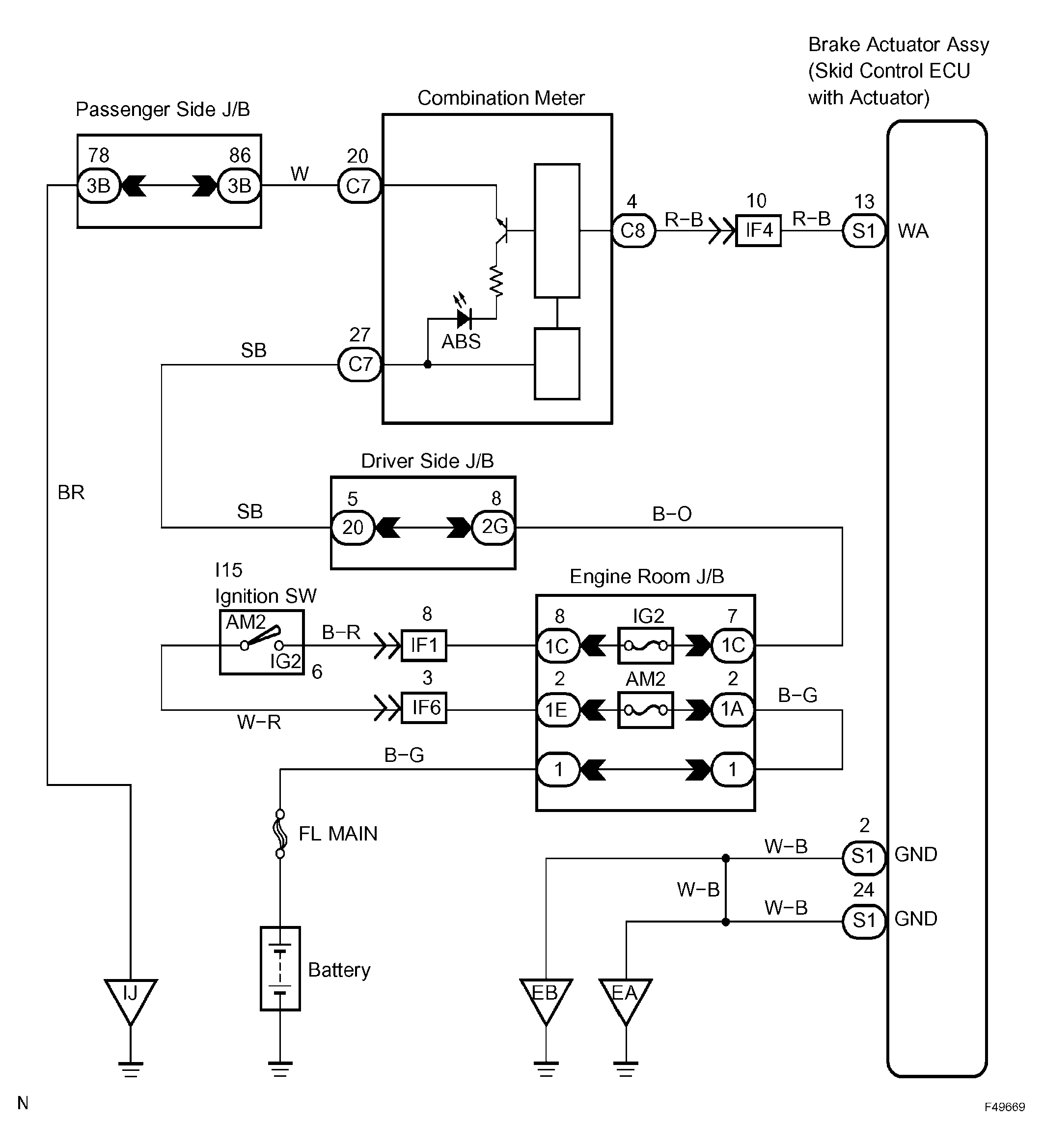

Fig 1: ABS Warning Light Circuit - Wiring Diagram

G04389994

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
