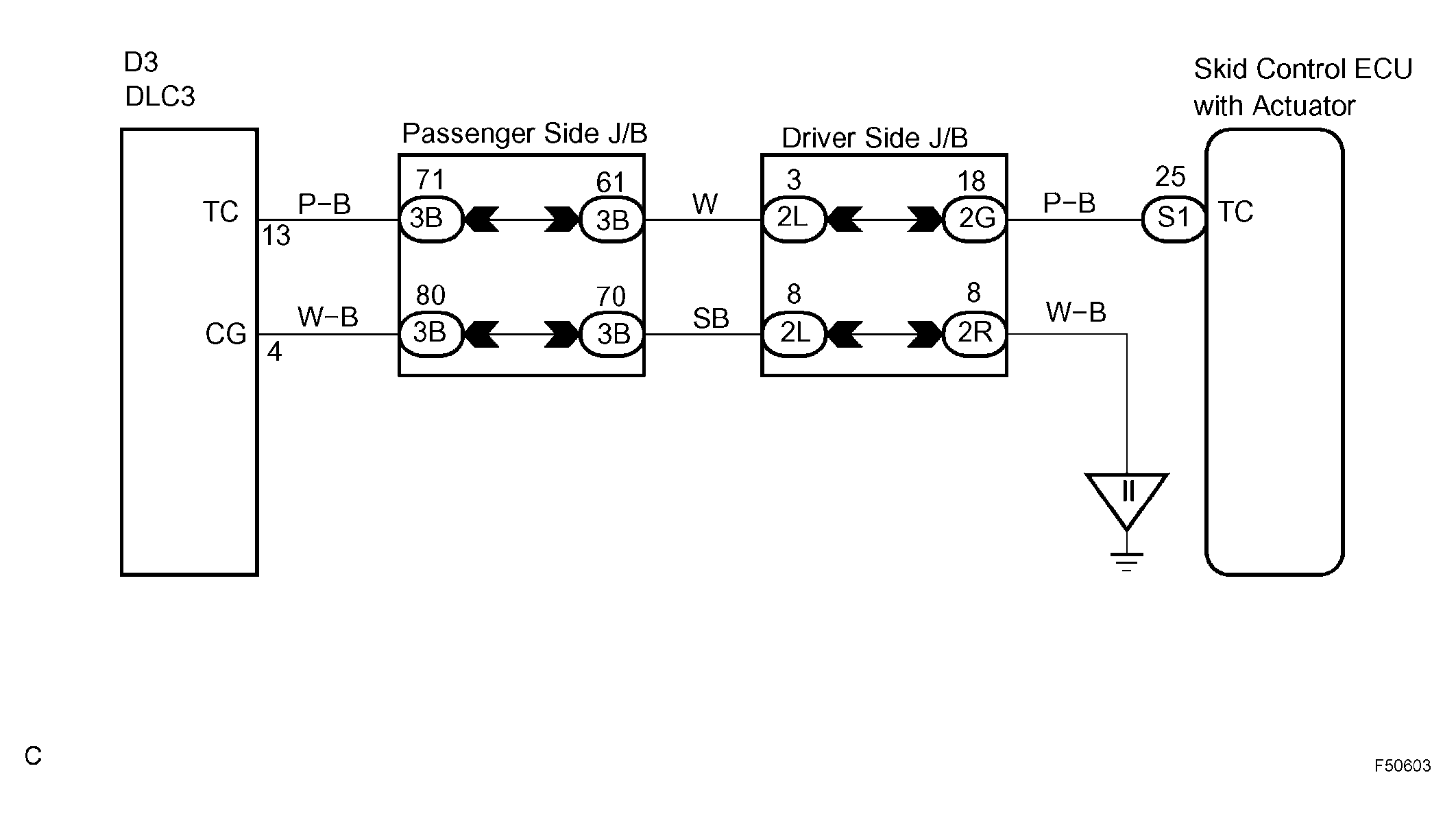

Home >> Toyota >> 2006 >> Camry Base, Automatic >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Brakes - Abs With EBD (BOSCH Made From July, 2003) (Diagnostics) >> TC Terminal Circuit >> Wiring Diagram
