Inspection Procedure

1. Disconnect the skid control ECU connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard:

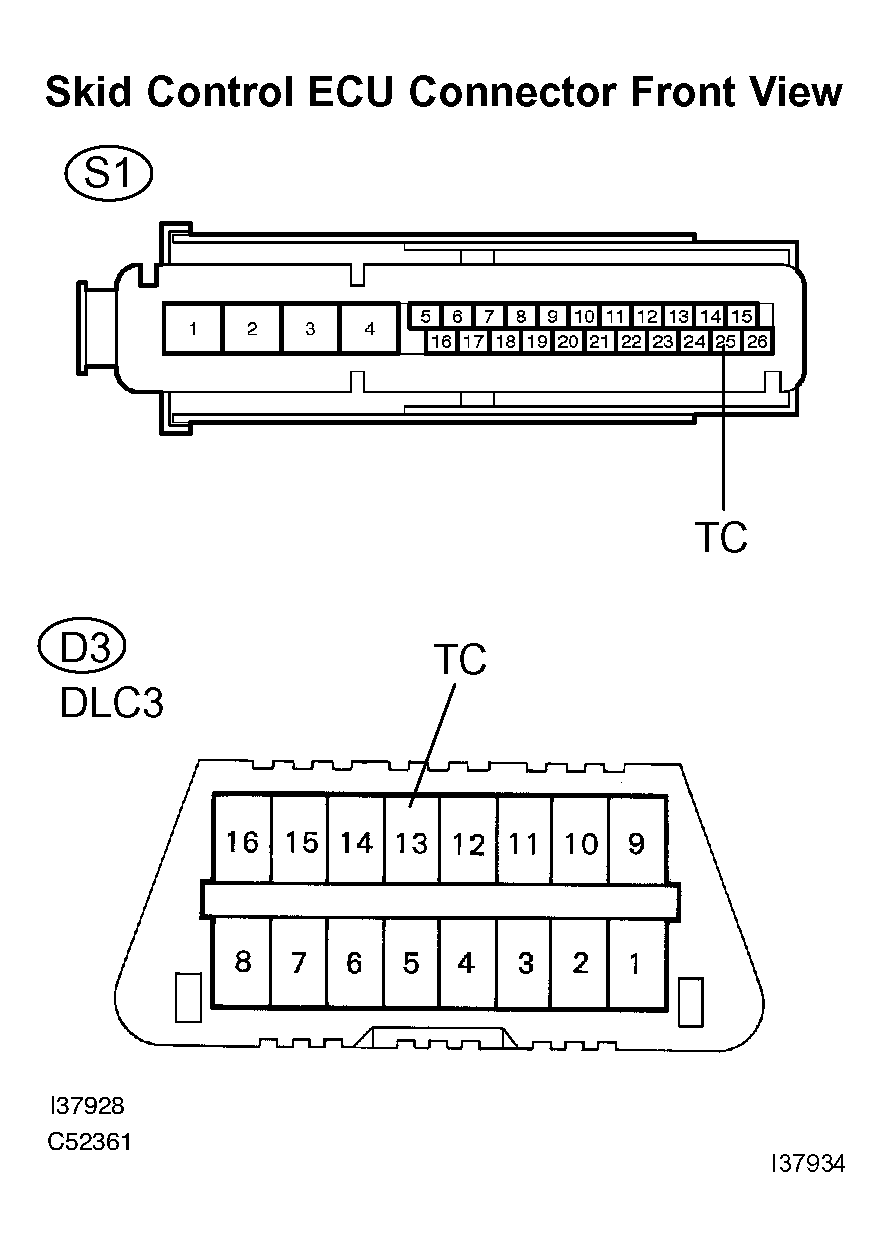

   Fig 1: Identifying Skid Control ECU And DLC3 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   SKID CONTROL ECU - DLC3 - RESISTANCE TABLE



   Tester Connection	Specified Condition
   D3-13 (TC) - S1-25 (TC)	1 Ω or less

3. Measure the resistance according to the value(s) in the table below.

Standard:

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the skid control ECU connector.
2. Measure the resistance according to the value(s) in the table below.
Fig 2: Identifying DLC3 Connector Terminals
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Turn the ignition switch to the ON position.
2. Measure the voltage according to the value(s) in the table below.

Fig 3: Identifying DLC3 Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

NG: REPLACE BRAKE ACTUATOR ASSY (See  REPLACEMENT  )

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON  PROBLEM SYMPTOMS TABLE
