DTC C1249/58 Stop Light Switch Circuit: Wiring Diagram

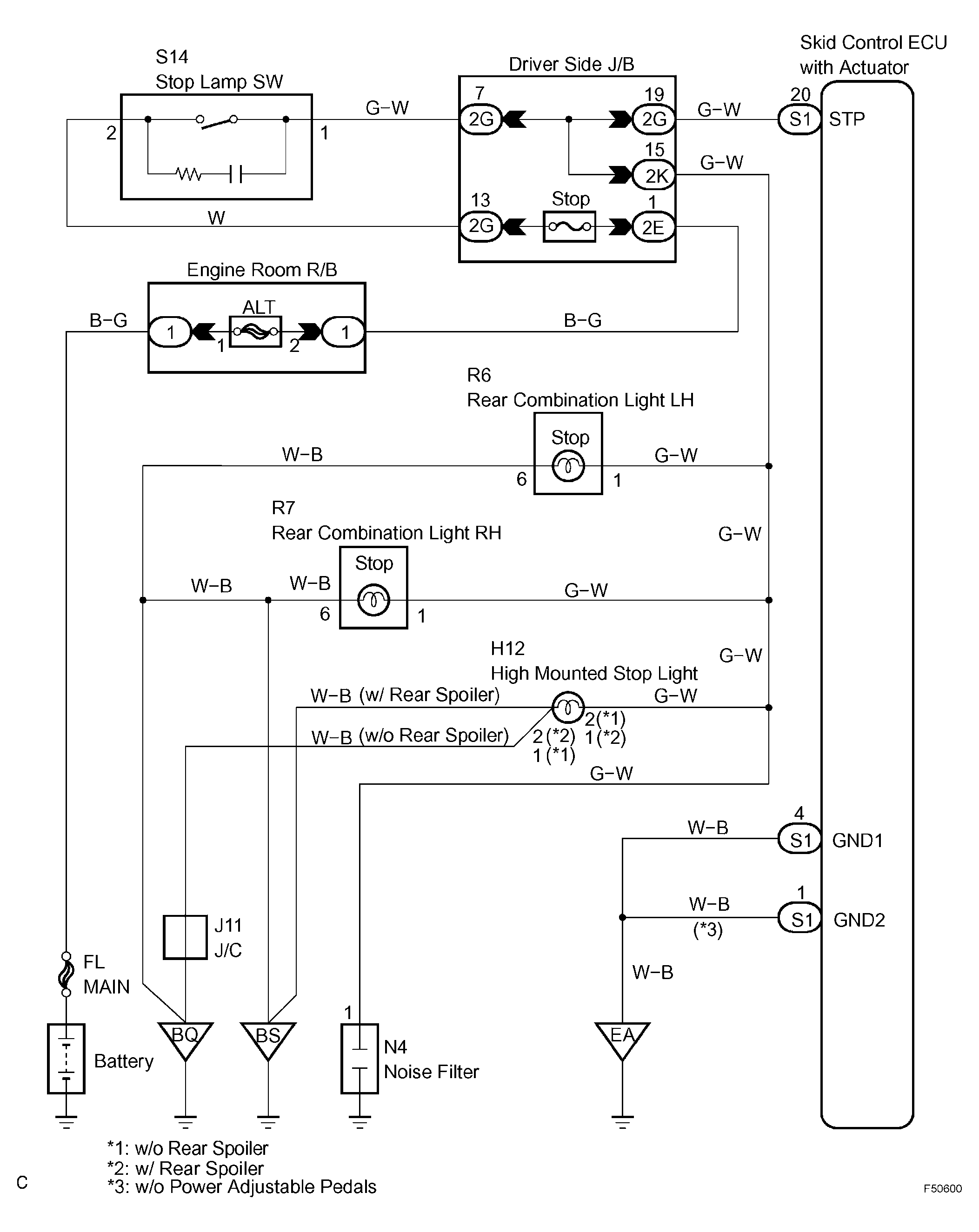

Fig 1: Wiring Diagram - DTC C1249/58

G04389937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
