DTC C0273/13 Open Or Short Circuit In Abs Motor Relay Circuit: Wiring Diagram

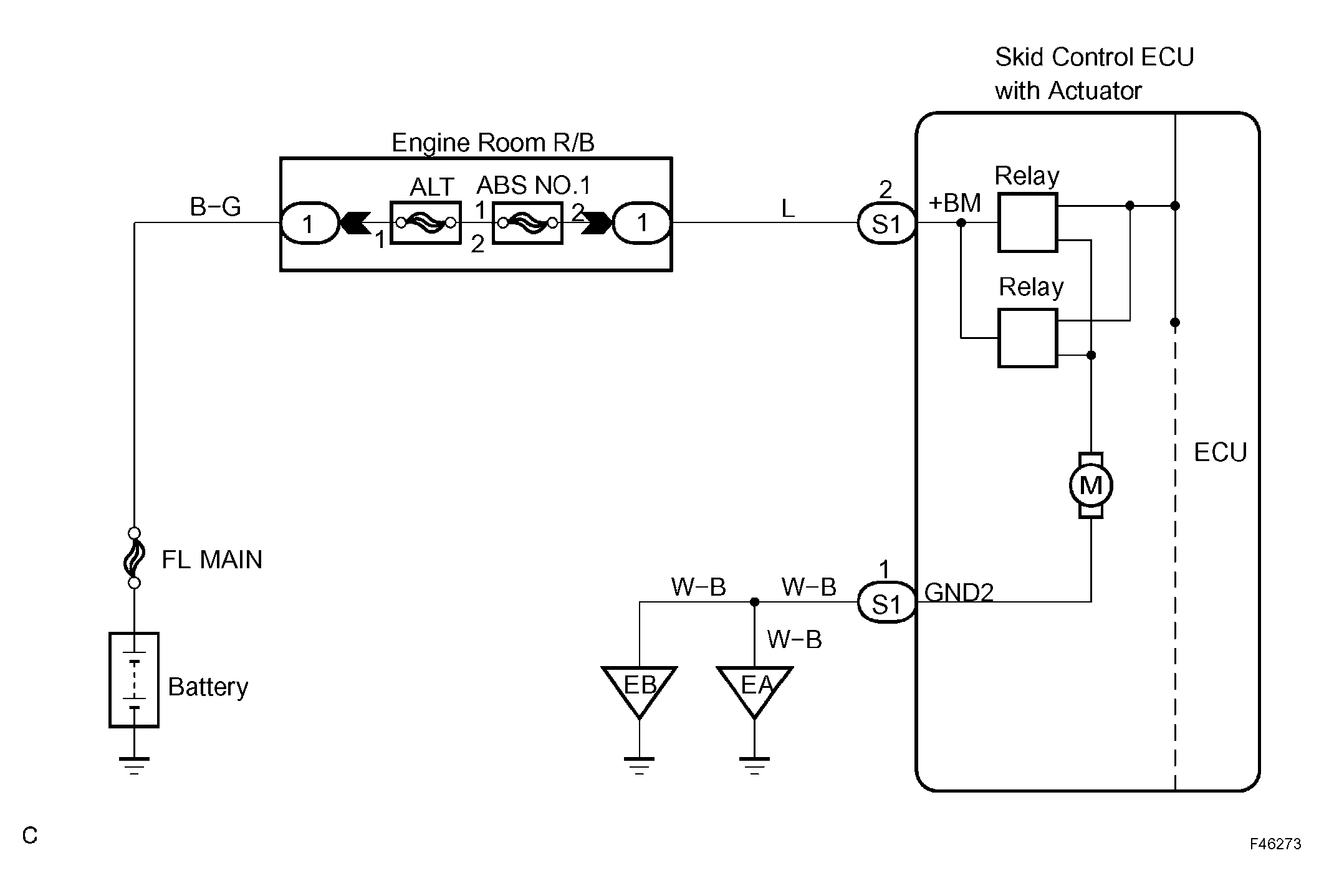

Fig 1: Wiring Diagram - DTC C0273/13

G04389924

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
