Abs Warning Light Circuit (Remains On): Wiring Diagram

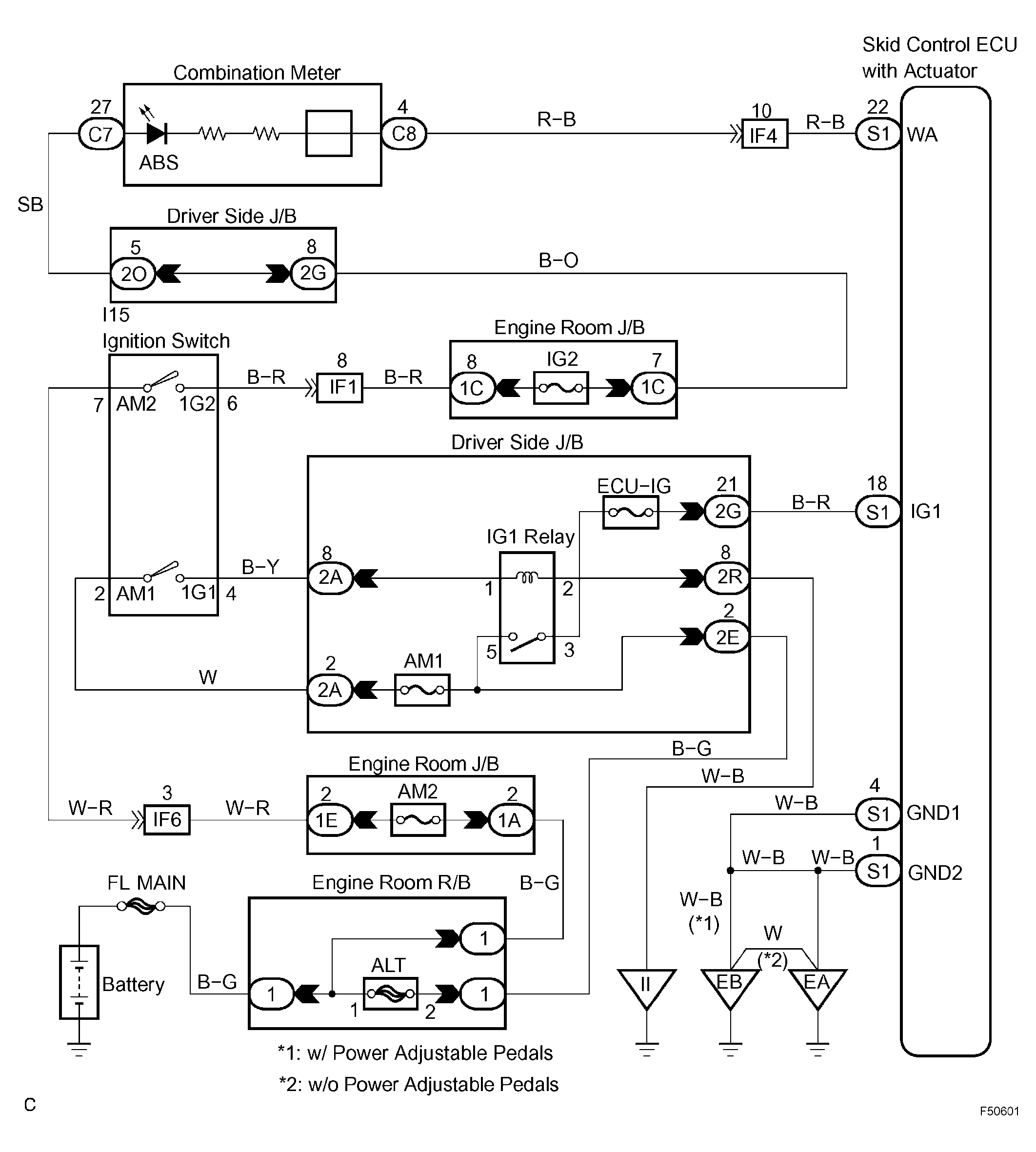

Fig 1: Wiring Diagram - ABS Warning Light (Remains On)

G04389944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
