Abs Warning Light Circuit (Does Not Light Up): Wiring Diagram

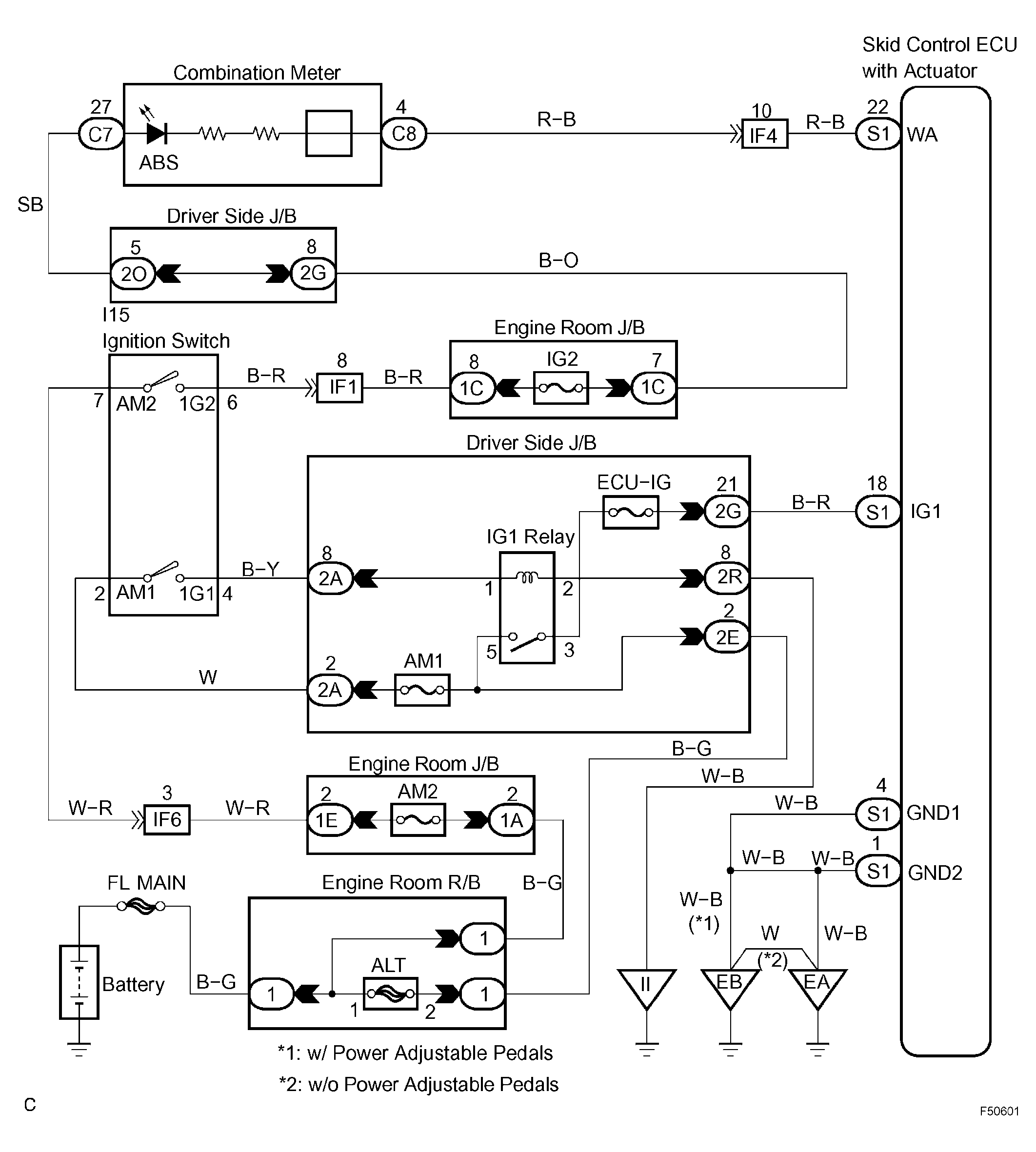

Fig 1: Wiring Diagram - ABS Warning Light (Does Not Light Up)

G04389947

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
