Seat Belt Warning Lamp For Driver's Seat Does Not Operate: Wiring Diagram

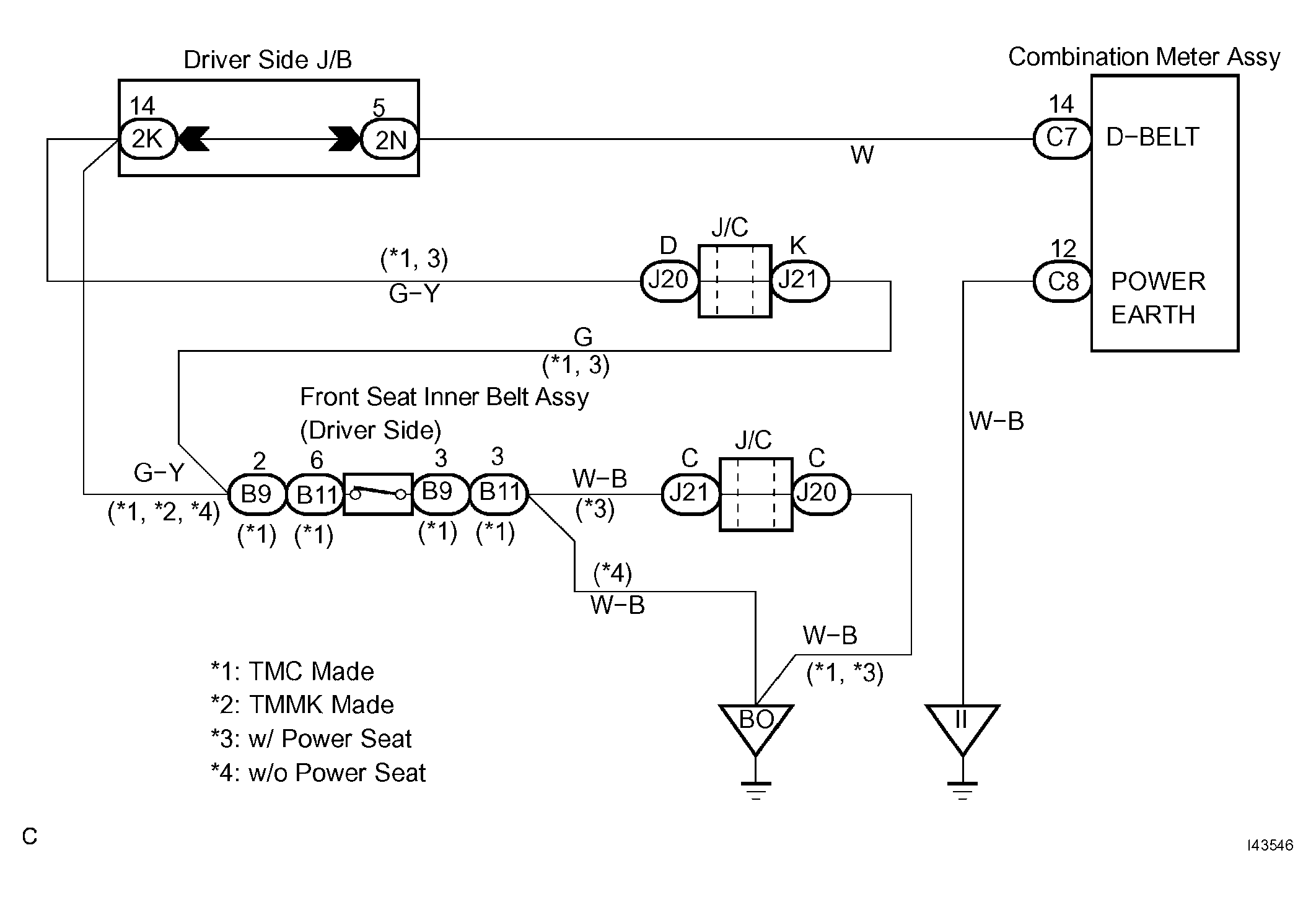

Fig 1: Wiring Diagram - Seat Belt Warning Lamp (Driver)

G04391012

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
