Operating Light Control Rheostat Does Not Change Light Brightness: Wiring Diagram

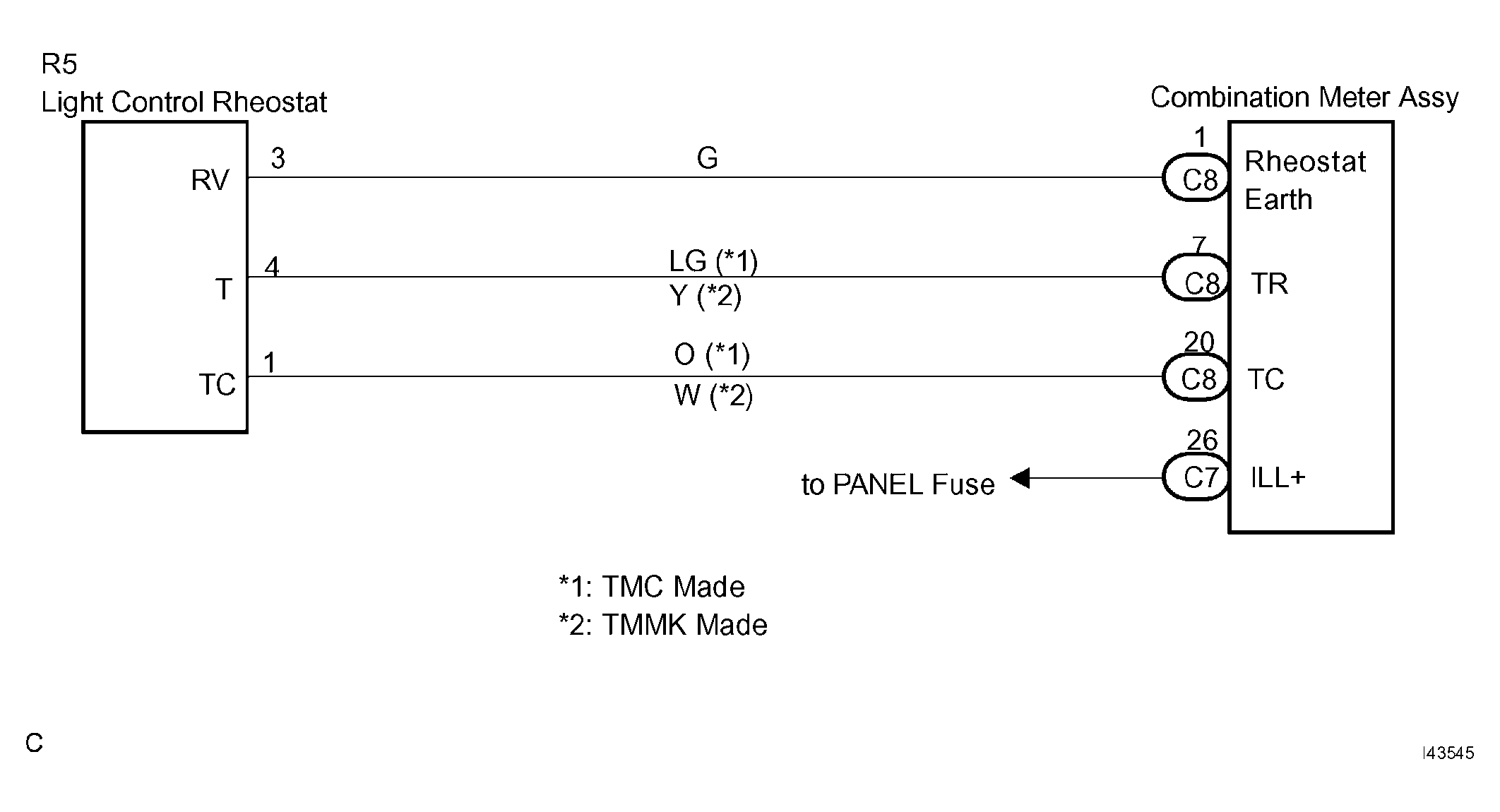

Fig 1: Wiring Diagram - Light Control Rheostat

G04391026

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
