Malfunction In Water Temperature Receiver Gauge: Wiring Diagram

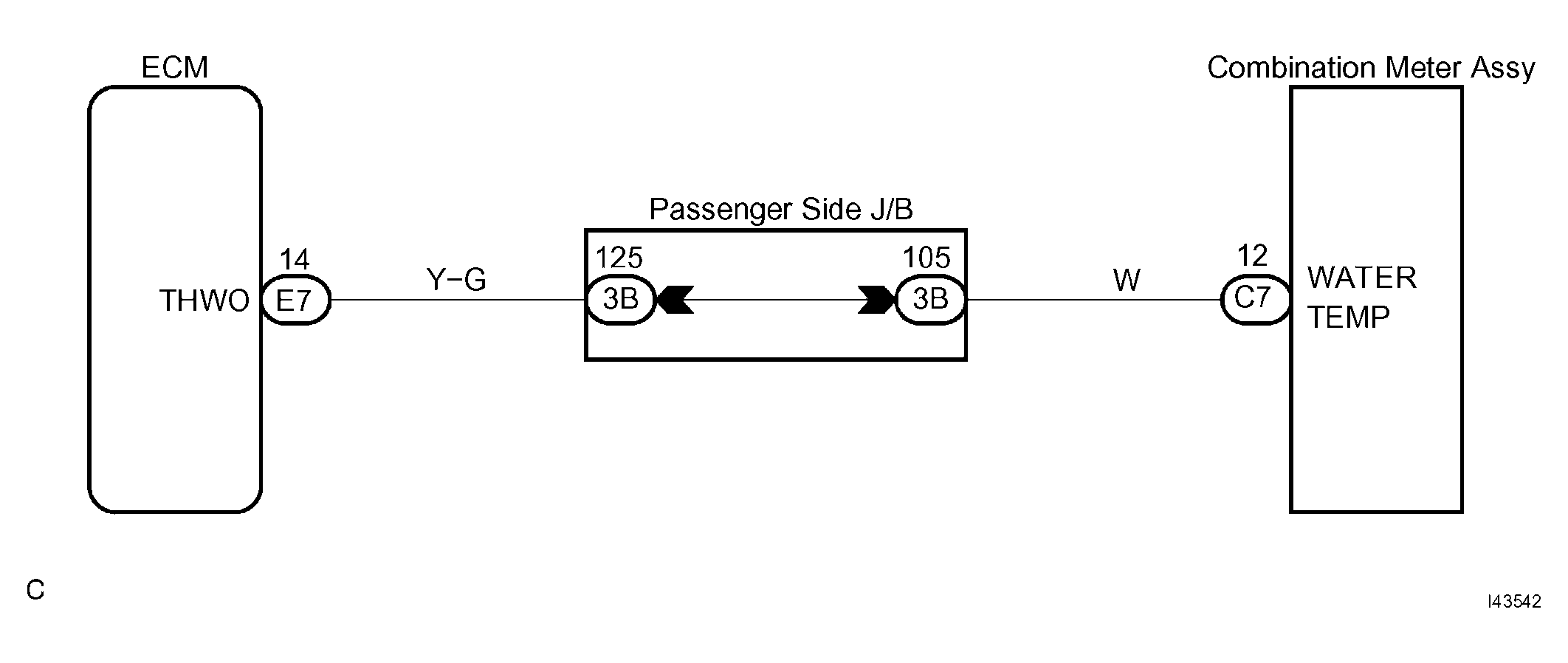

Fig 1: Wiring Diagram - Water Temperature Receiver Gauge

G04391009

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
