Malfunction In Tachometer: Wiring Diagram

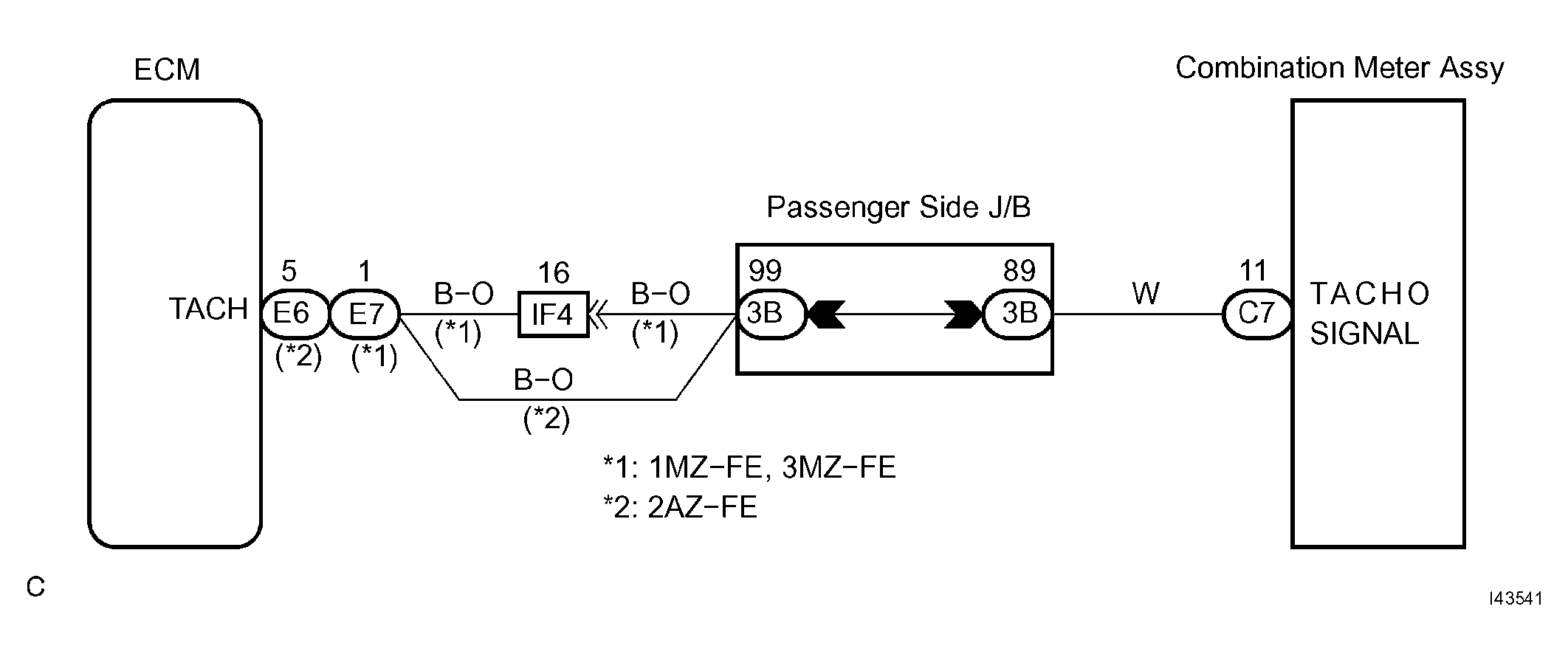

Fig 1: Wiring Diagram - Tachometer

G04391002

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
