Malfunction In Speedometer: Wiring Diagram

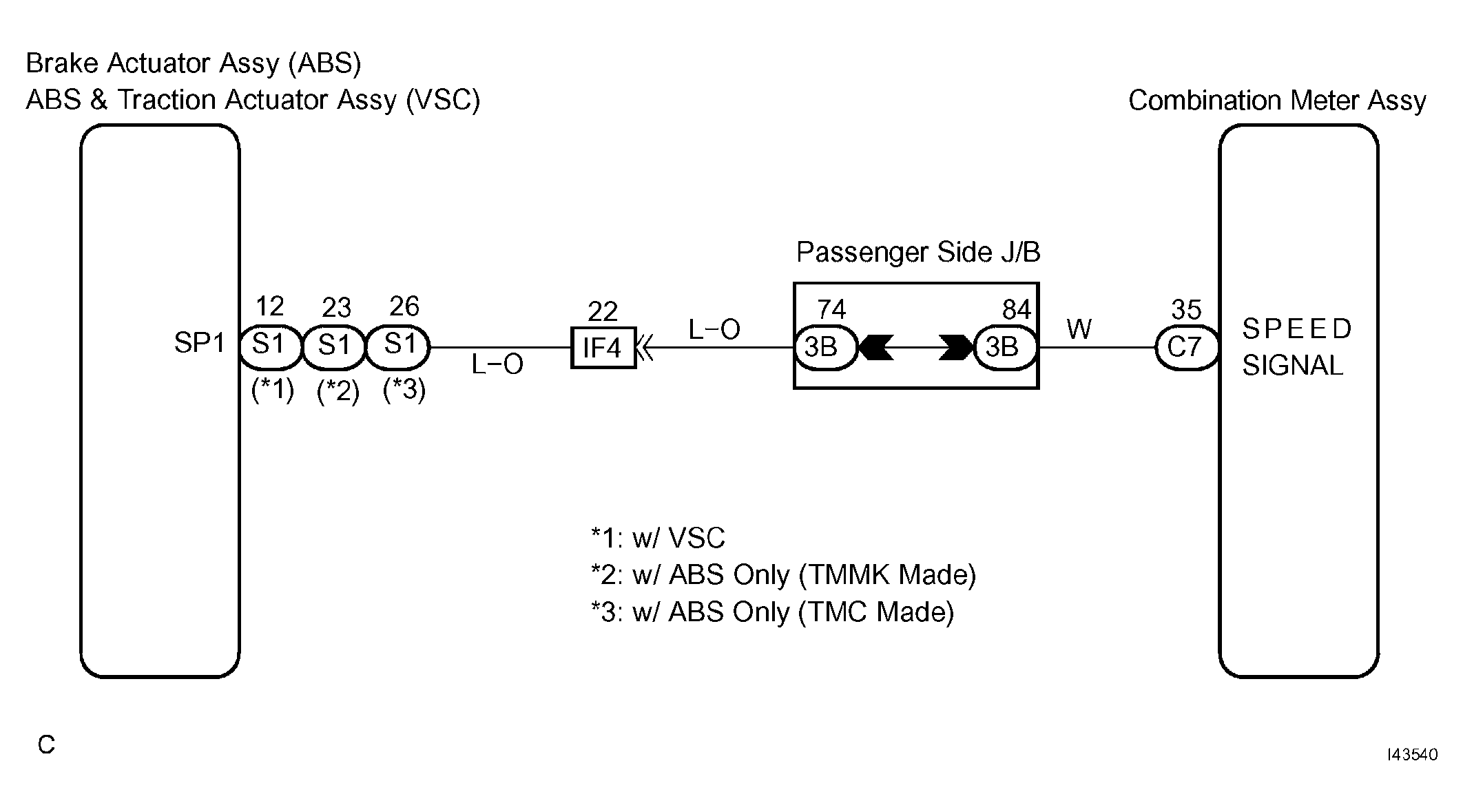

Fig 1: Wiring Diagram - Speedometer

G04390994

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
