Malfunction In Possible Running Distance Display: Wiring Diagram

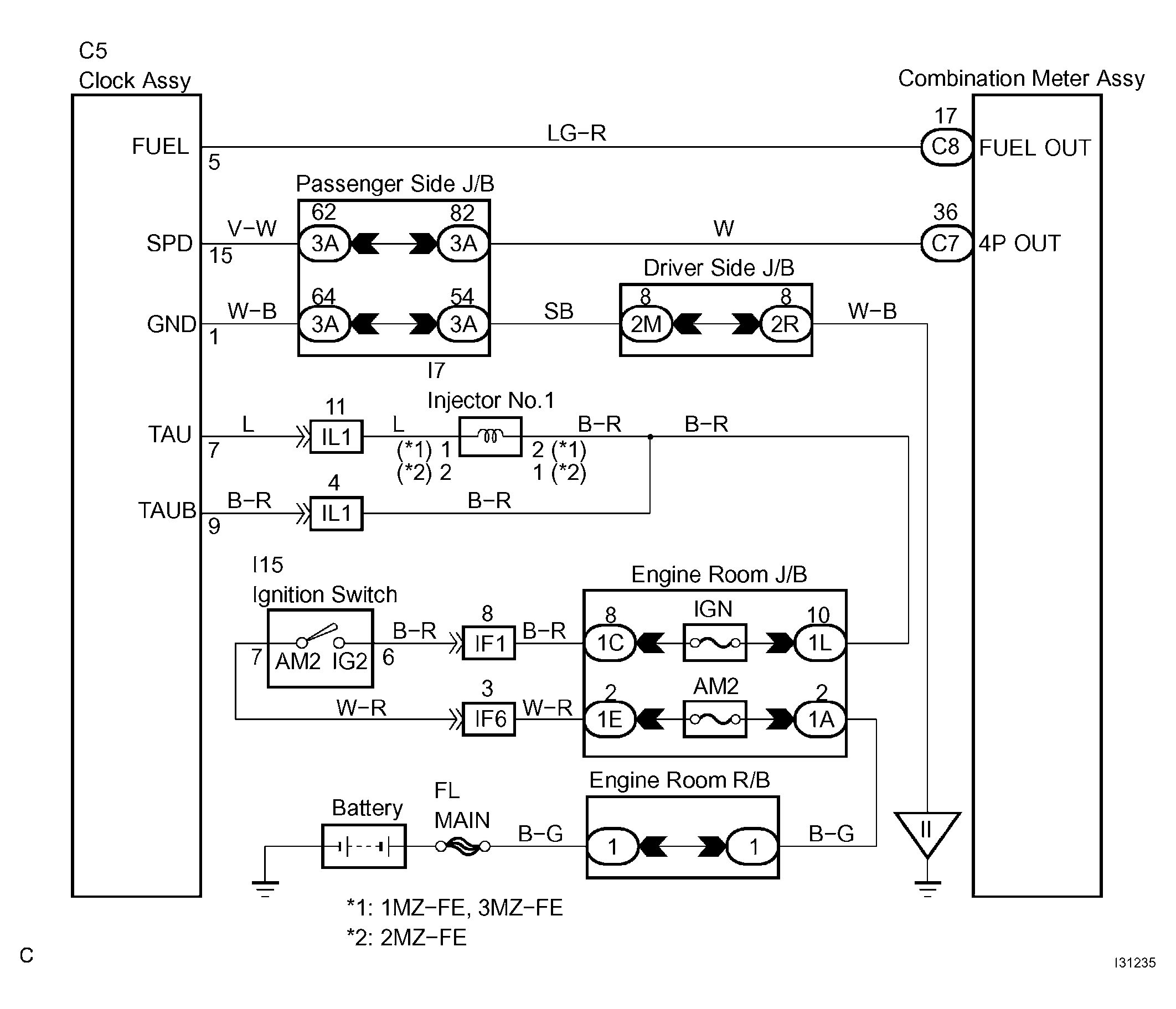

Fig 1: Wiring Diagram - Running Distance Display

G04391052

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
