Malfunction In Fuel Receiver Gauge: Wiring Diagram

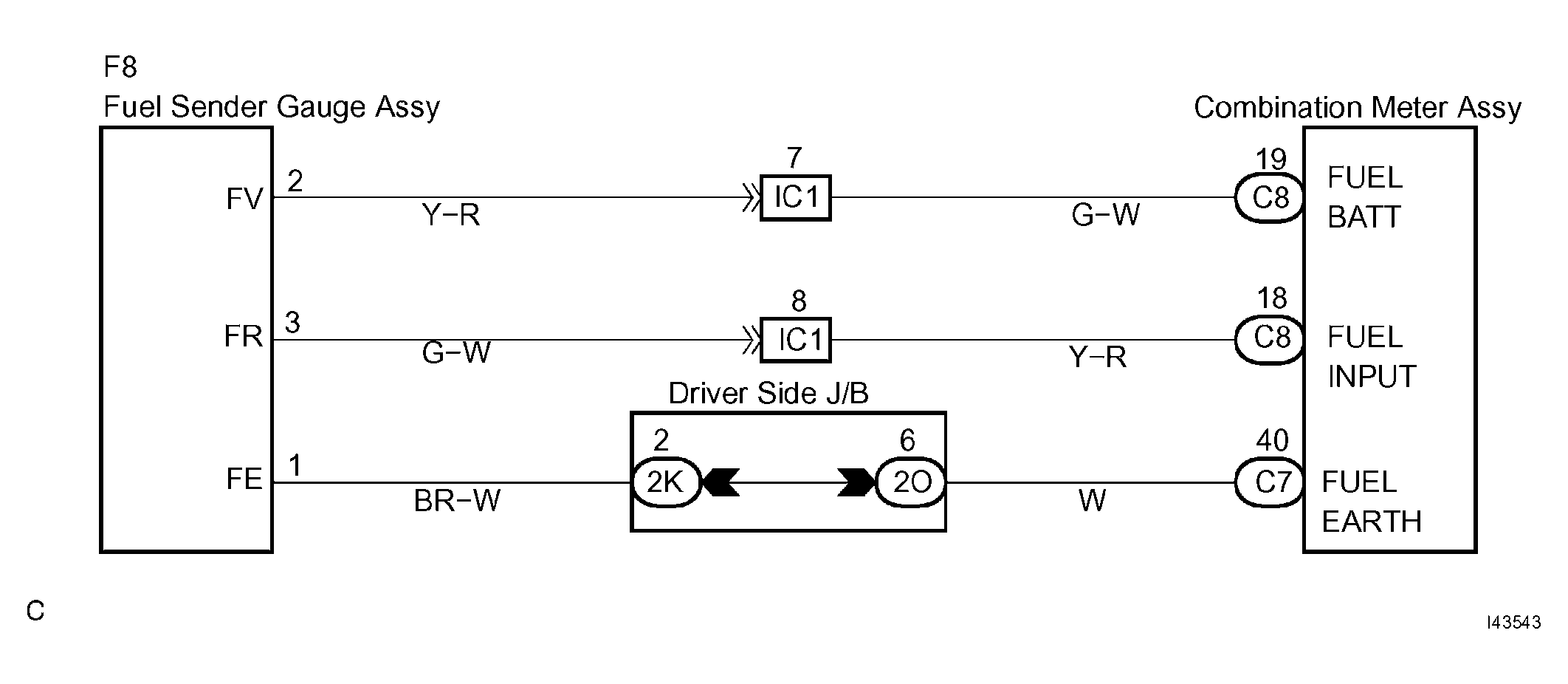

Fig 1: Wiring Diagram - Fuel Receiver Gauge

G04391005

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
