Malfunction In Driving Time Display: Wiring Diagram

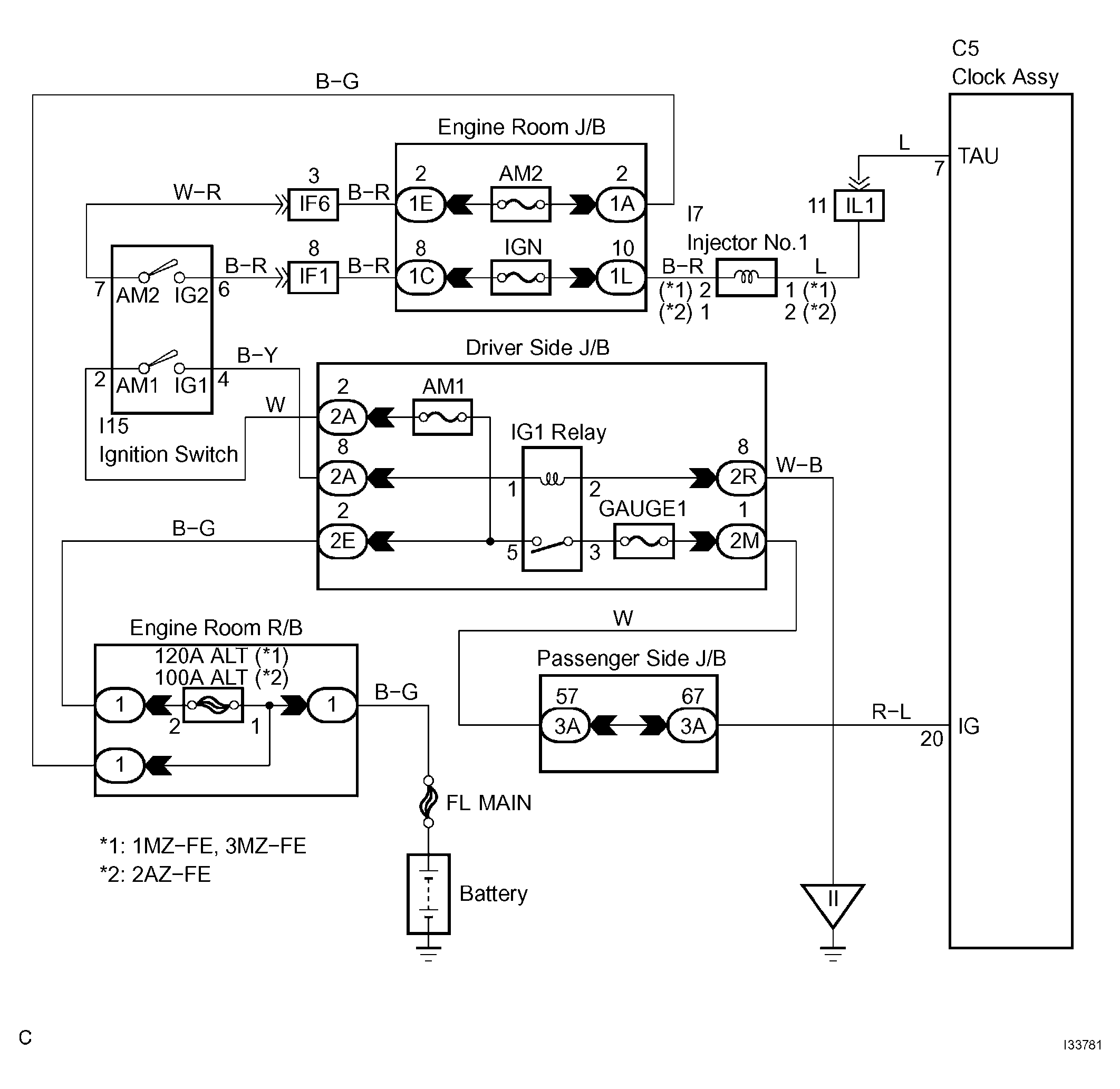

Fig 1: Wiring Diagram - Driving Time Display

G04391048

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
