Malfunction In Clock Display: Wiring Diagram

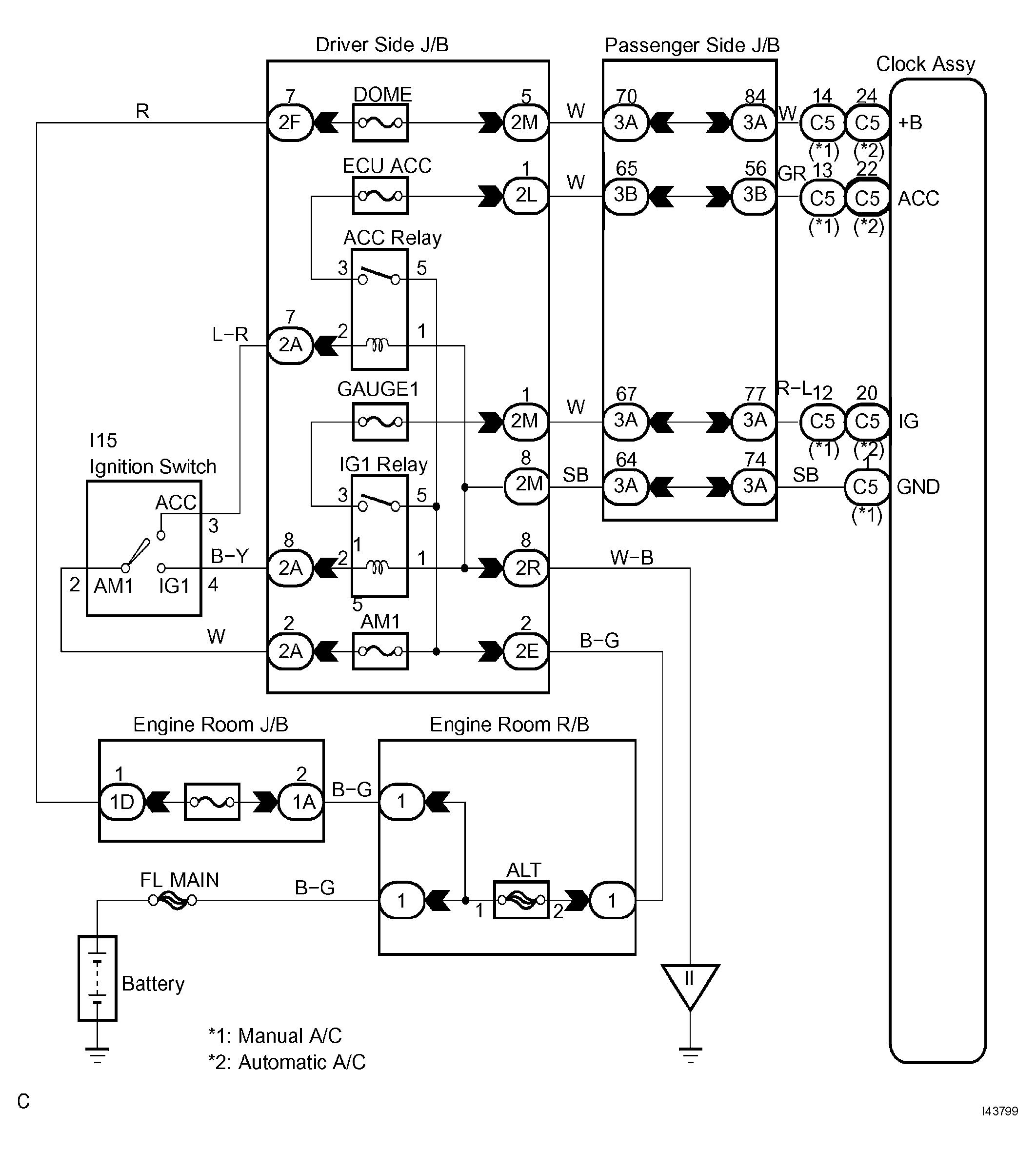

Fig 1: Wiring Diagram - Clock Display

G04391031

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
