Malfunction In Average Vehicle Speed Display: Wiring Diagram

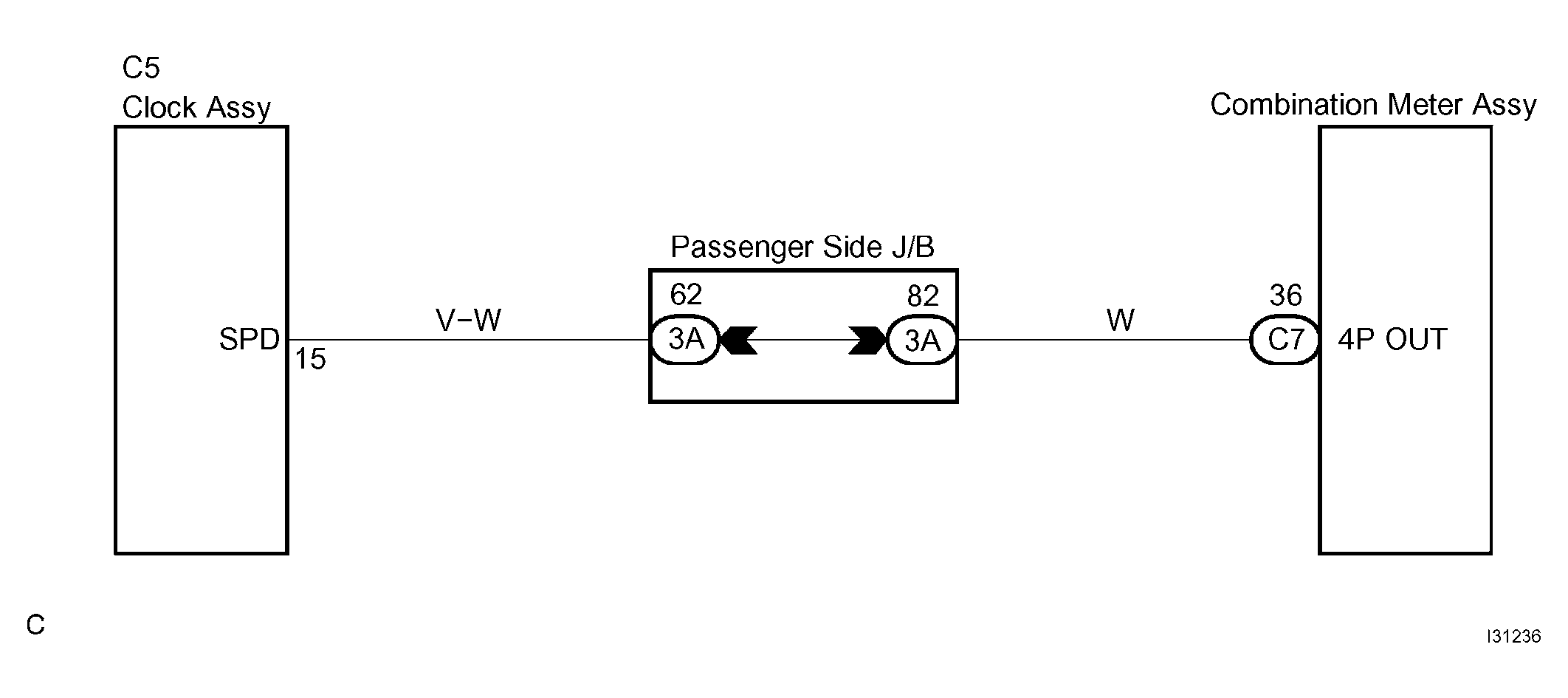

Fig 1: Wiring Diagram - Vehicle Speed Display
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
