Combination Meter - Diagnostics: Location

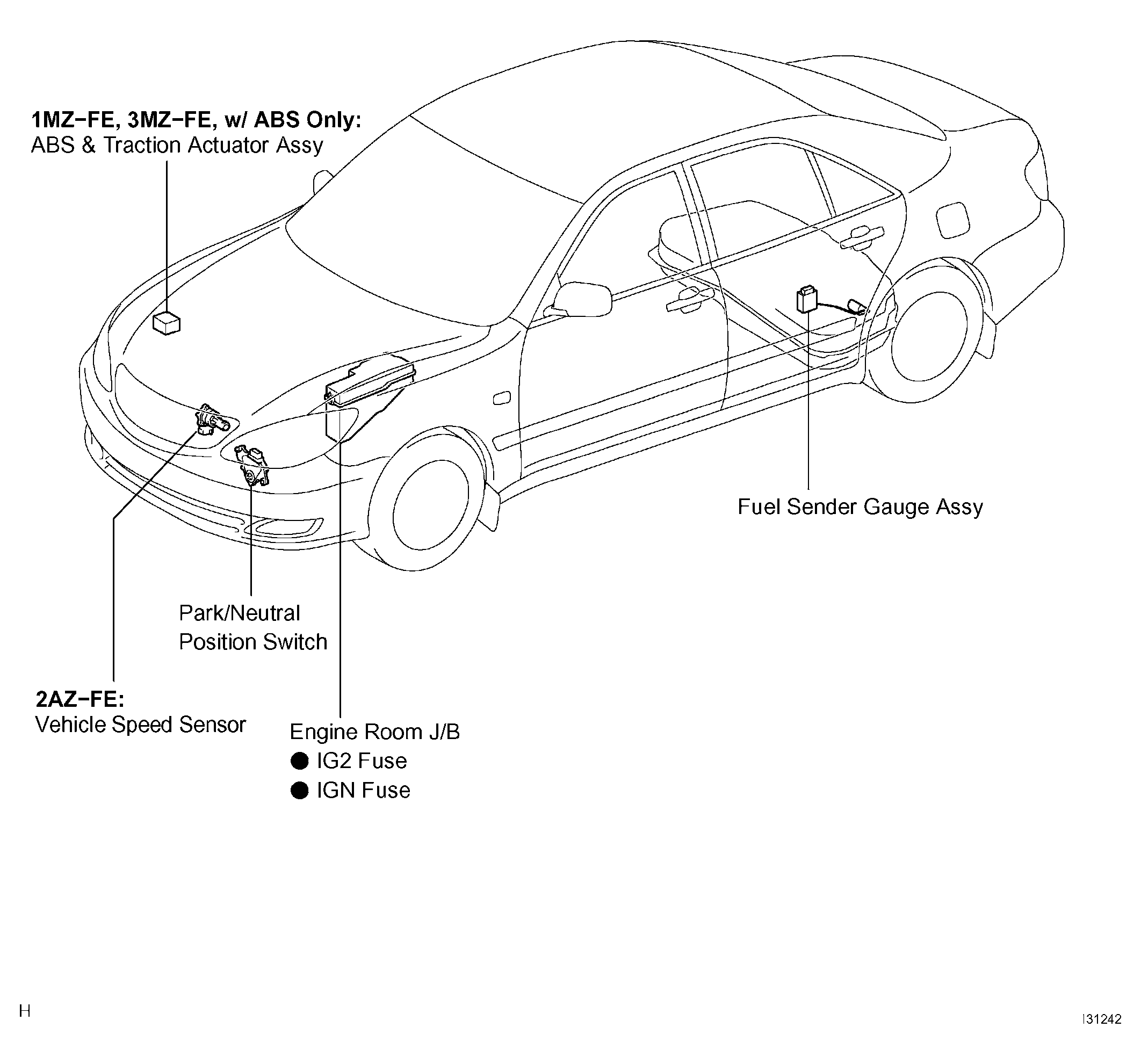

Fig 1: Identifying Combination Meter Component Locations (1 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

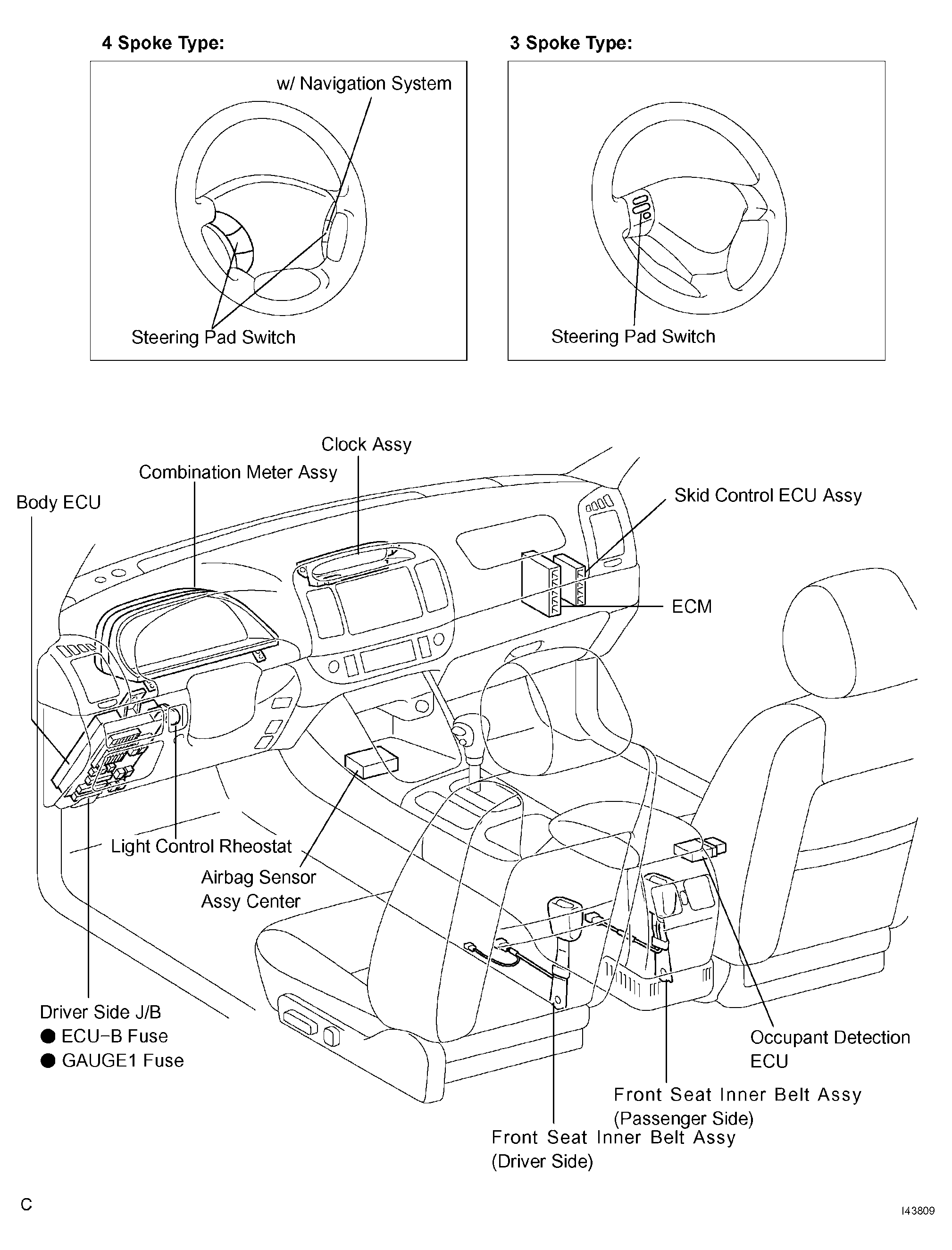

Fig 2: Identifying Combination Meter Component Locations (2 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

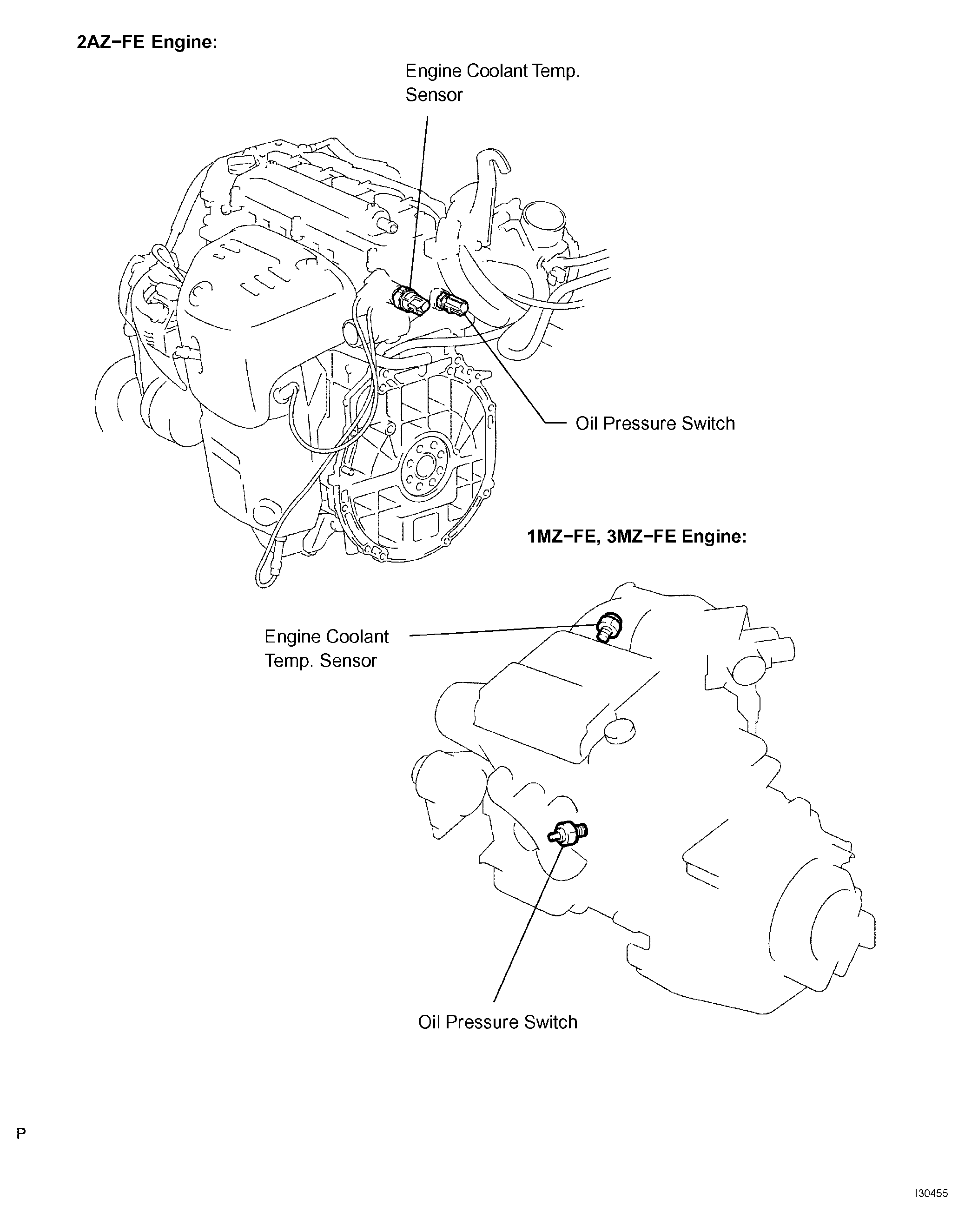

Fig 3: Identifying Combination Meter Component Locations (3 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

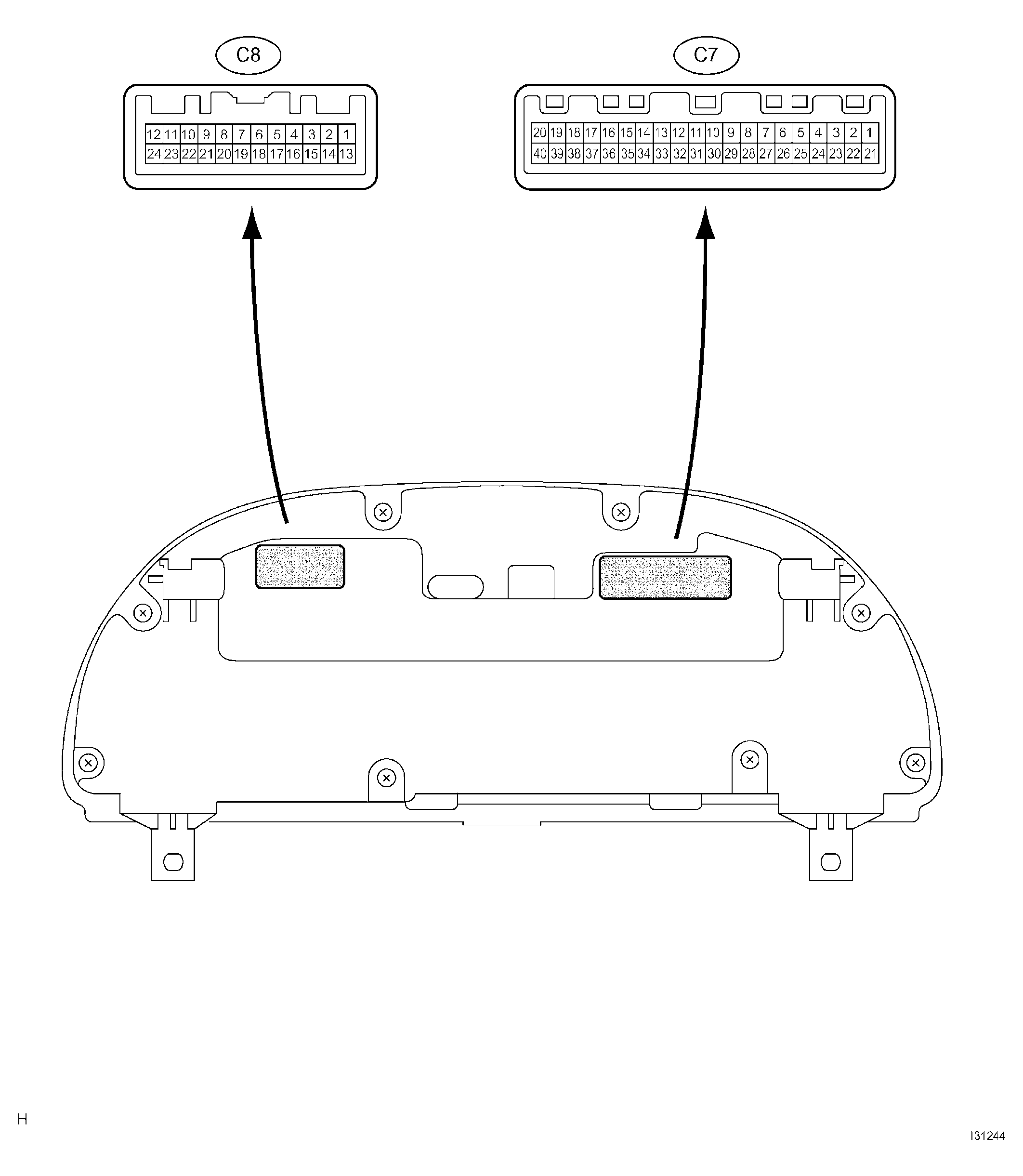

Fig 4: Identifying Combination Meter Component Locations (4 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

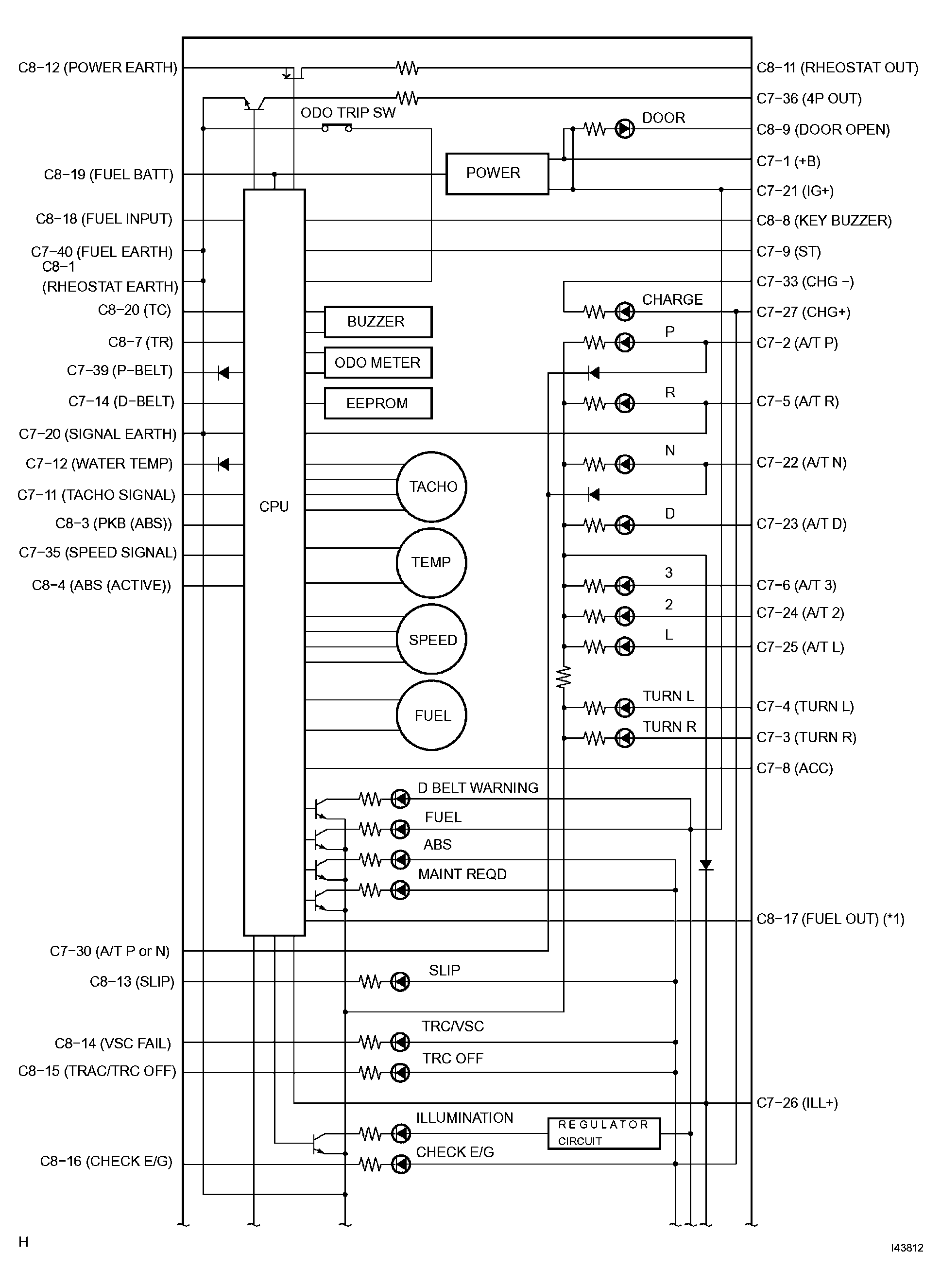

Fig 5: Identifying Combination Meter Component Locations (5 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

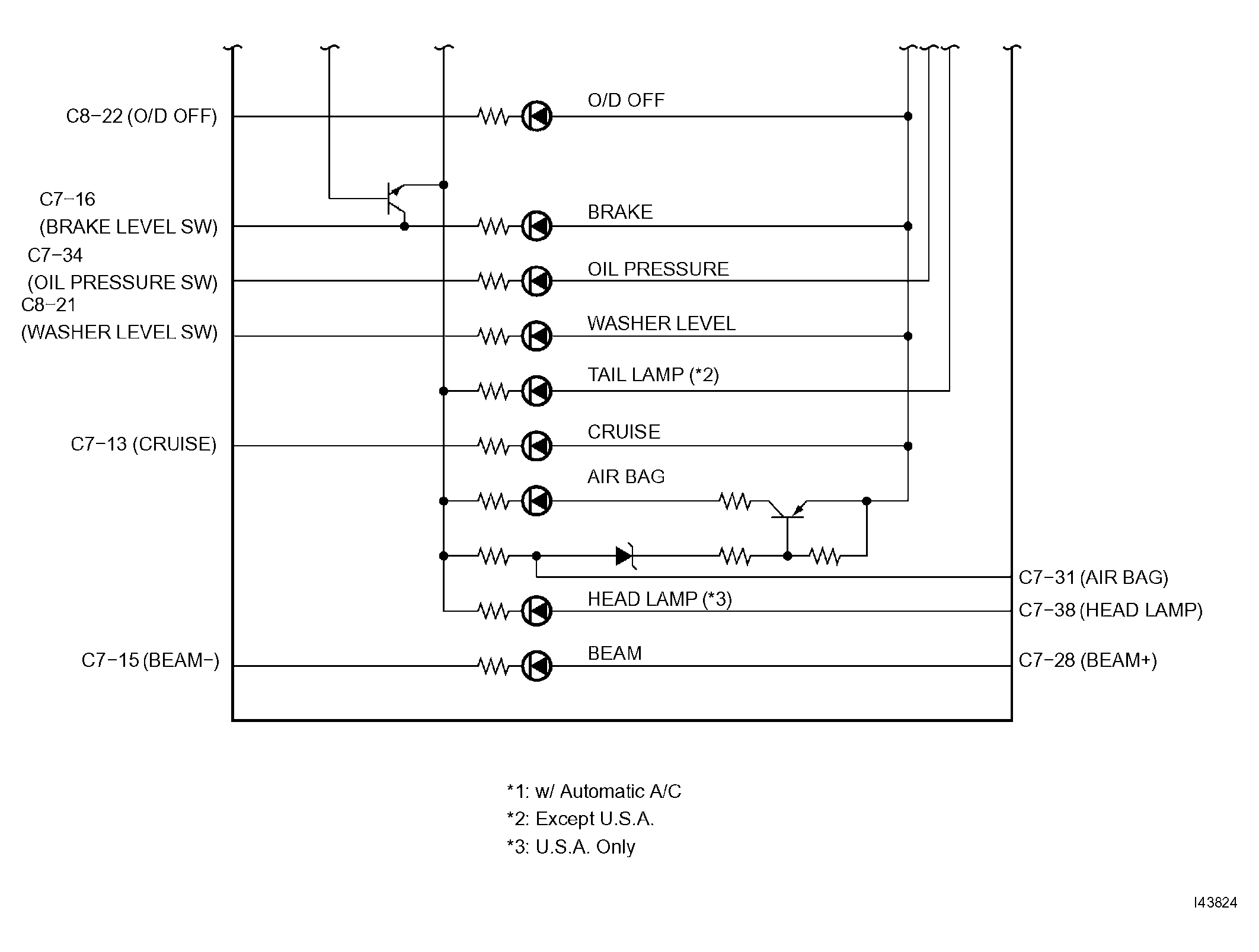

Fig 6: Identifying Combination Meter Component Locations (6 Of 6)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

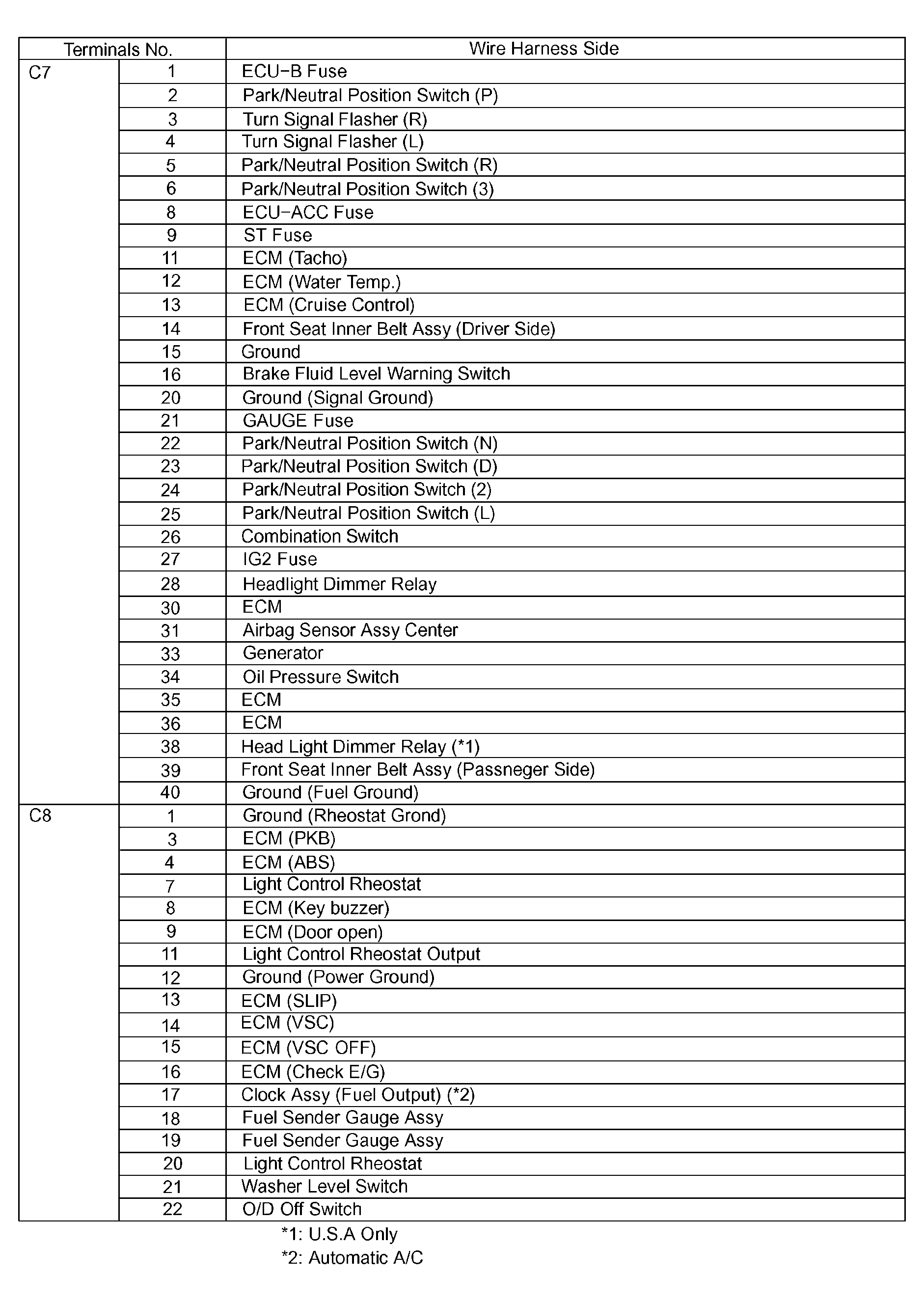

Fig 7: Identifying Combination Meter Terminal Reference Chart

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
