Combination Meter - Diagnostics
>>
Entire Combination Meter Does Not Operate
>>
Wiring Diagram
Entire Combination Meter Does Not Operate: Wiring Diagram

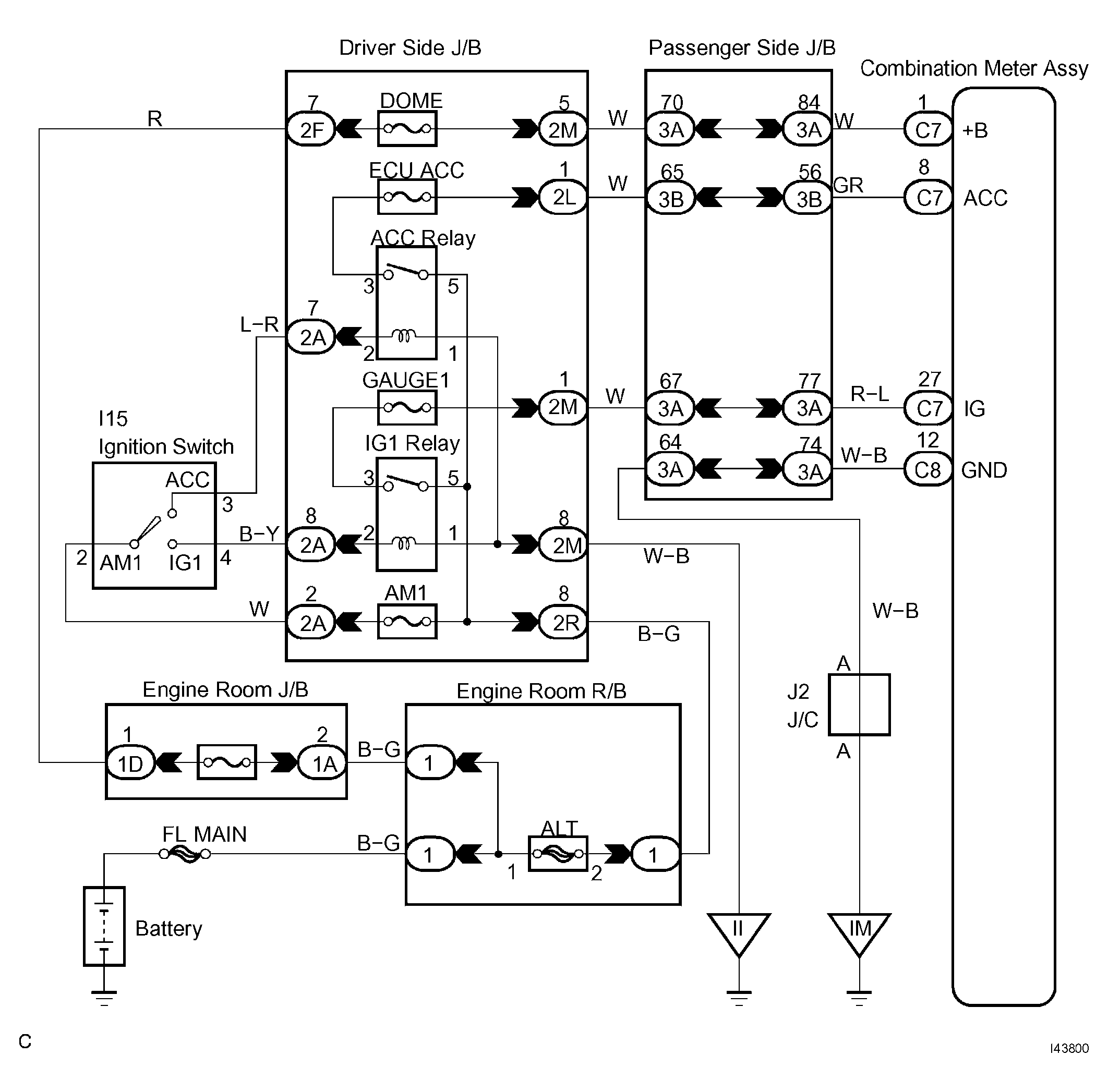

Fig 1: Wiring Diagram - Combination Meter
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
