Buzzer Does Not Sound (Key Reminder Warning, Seat Belt Warning): Wiring Diagram

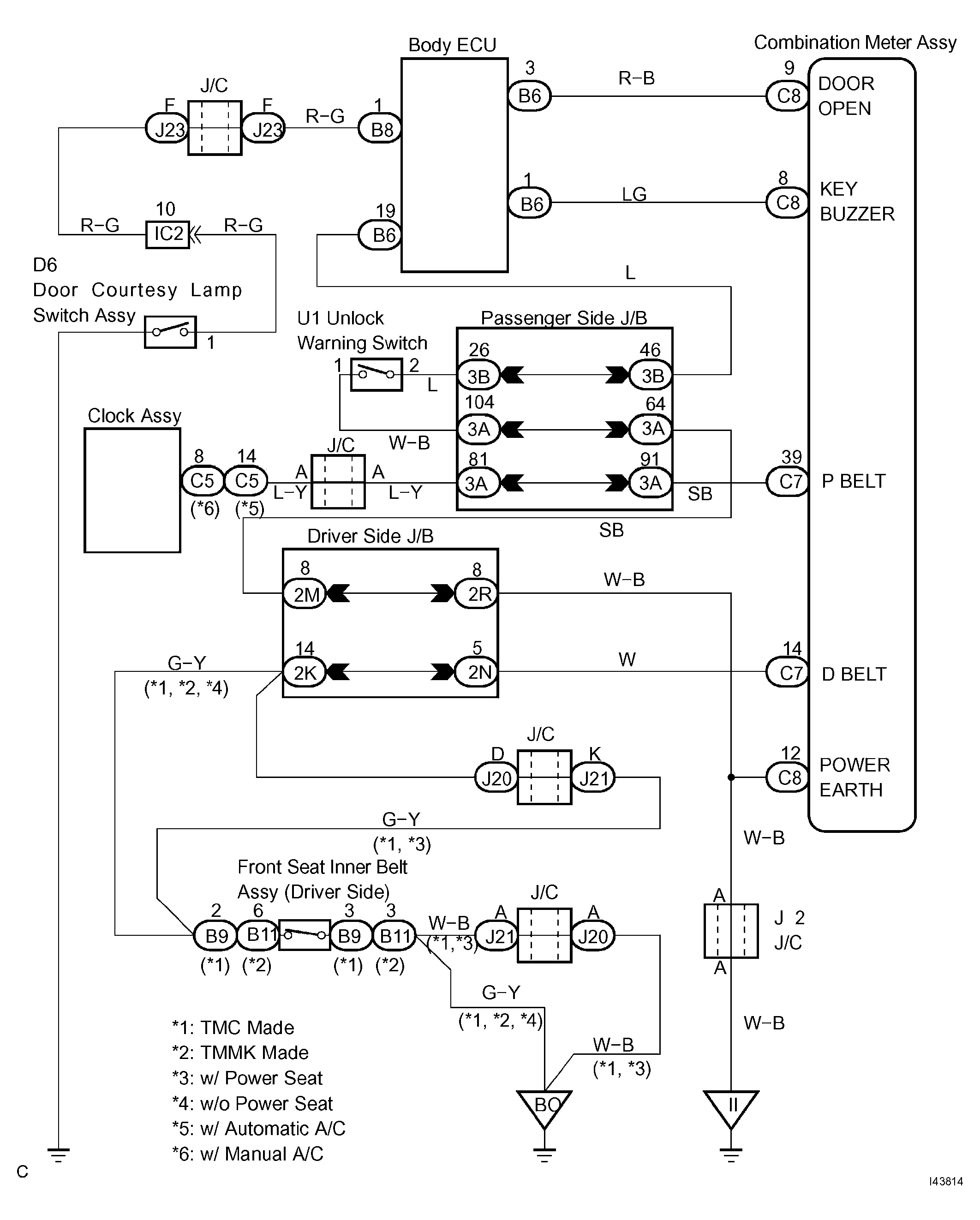

Fig 1: Wiring Diagram - Key Reminder / Seat Belt Warning Buzzer

G04391019

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
