Front Seat Outer Belt Assembly With PRETENSIONER: Installation

Do not disassemble the retractor.

1. Check the degree of inclination required to lock the retractor.
   1. When the inclination of the retractor is 15° or less, check that the belt can be pulled from the retractor. When the inclination of the retractor is over 45°, check that the belt locks.

      If operation is not as specified, replace the outer belt assembly.

      Fig 1: Checking Degree Of Inclination

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

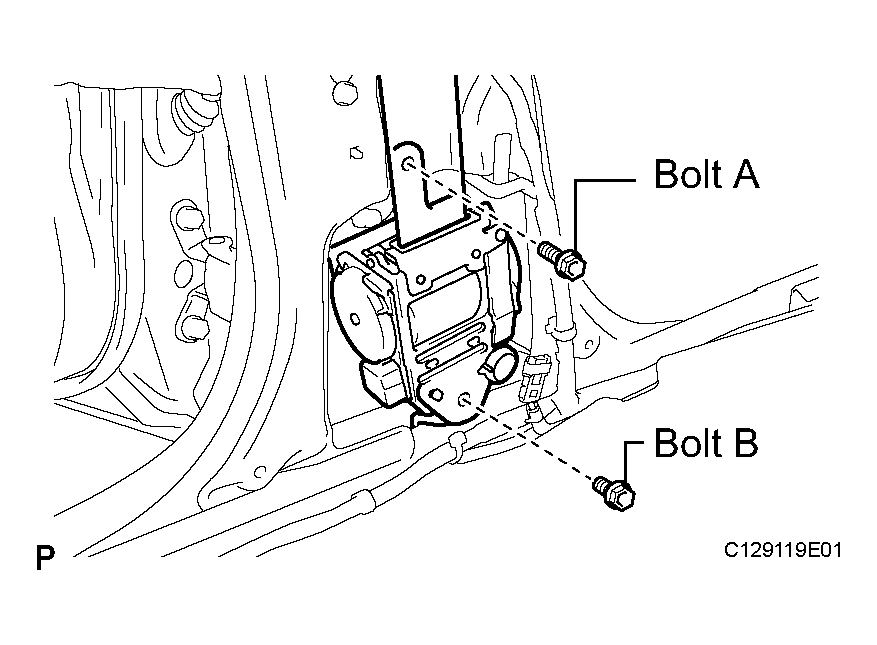

2. Install the front seat outer belt assembly LH with the 2 bolts.

   Torque: Bolt A

   5.5 N*m (56 kgf*cm, 49 in.*lbf) Bolt B

   42 N*m (428 kgf*cm, 31 ft.*lbf)

   Fig 2: Installing Front Seat Outer Belt Assembly LH Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

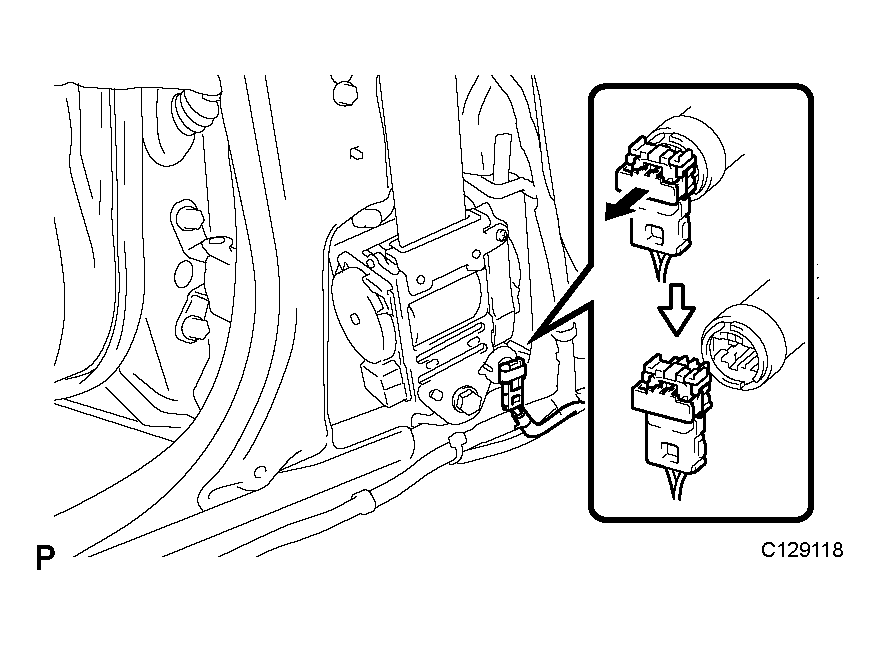

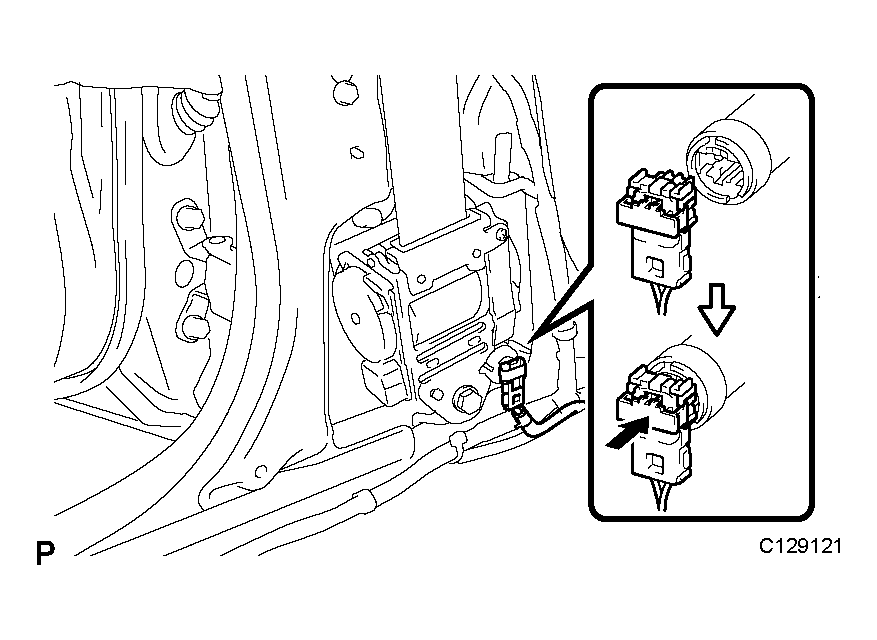

3. Connect the pretensioner connector, as shown in Fig 3.
   Fig 3: Connecting Pretensioner Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the nut.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

   Fig 4: Installing Nut

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the front seat outer belt assembly with the bolt.

   Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

2. Check if the ELR locks.
   NOTE: The check should be performed with the outer belt assembly installed.
   1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.

      If operation is not as specified, replace the outer belt assembly.

HINT:

See INITIALIZATION

HINT:

See DIAGNOSIS SYSTEM

Fig 5: Installing Front Seat Outer Belt Assembly Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
