Air Conditioning Control Assembly: Removal

HINT:

Installation is in the reverse order of removal.

1. DISCONNECT BATTERY NEGATIVE TERMINAL
   1. Wait for 90 seconds after disconnecting the cable to prevent the airbag working.
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (See  REMOVAL  )
3. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY (See  REMOVAL  )
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
   1. Release the 8 claws and 5 clips and instrument cluster finish panel sub-assembly center.
   2. Disconnect the connector and remove the instrument cluster finish panel sub-assembly center.

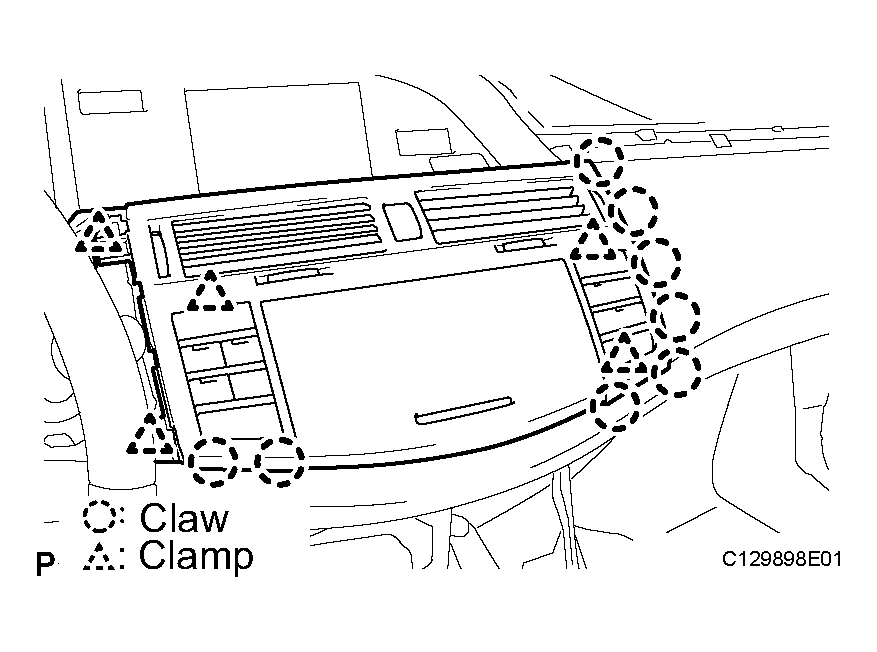

      Fig 1: Removing Instrument Cluster Finish Panel Sub-Assembly Center

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
