Inspection Procedure

HINT:

• If DTC P0010 is displayed, check the bank 1 VVT system circuit.
• Bank 1 refers to the bank that include cylinder No. 1.
• If DTC P0020 is displayed, check the bank 2 VVT system circuit.
• Bank 2 refers to the bank that does not includes cylinder No. 1.
• Read freeze frame data using the intelligent tester. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER (OPERATE OCV)
   1. Connect the intelligent tester to the DLC3.
   2. Start the engine and turn the tester on.
   3. Warm up the engine and idle it.
   4. Select the following menu items on the tester: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / VVT CTRL B1 or VVT CTRL B2.
   5. Check the engine speed while operating the Oil Control Valve (OCV) using the tester.

      Standard

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Operations	Specified Conditions
      OCV OFF	Normal engine idle speed
      OCV ON	Engine idles roughly or stalls (soon after OCV switched from OFF to ON)

   NG: Go to step 2

   OK: CHECK FOR INTERMITTENT PROBLEMS

2. INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (OCV SIGNAL)
   1. Disconnect the B44 or B19 OCV connector.
   2. While idling, check the waveform between the terminals of the B44 or B19 OCV connector using an oscilloscope.

      OK: Go to Next Step

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connections	Specified Conditions
      + (B44-1) - - (B44-2)	Correct waveform appears
      + (B19-1) - - (B19-2)	Correct waveform appears

   3. Reconnect the OCV connector.

   NG: Go to step 3

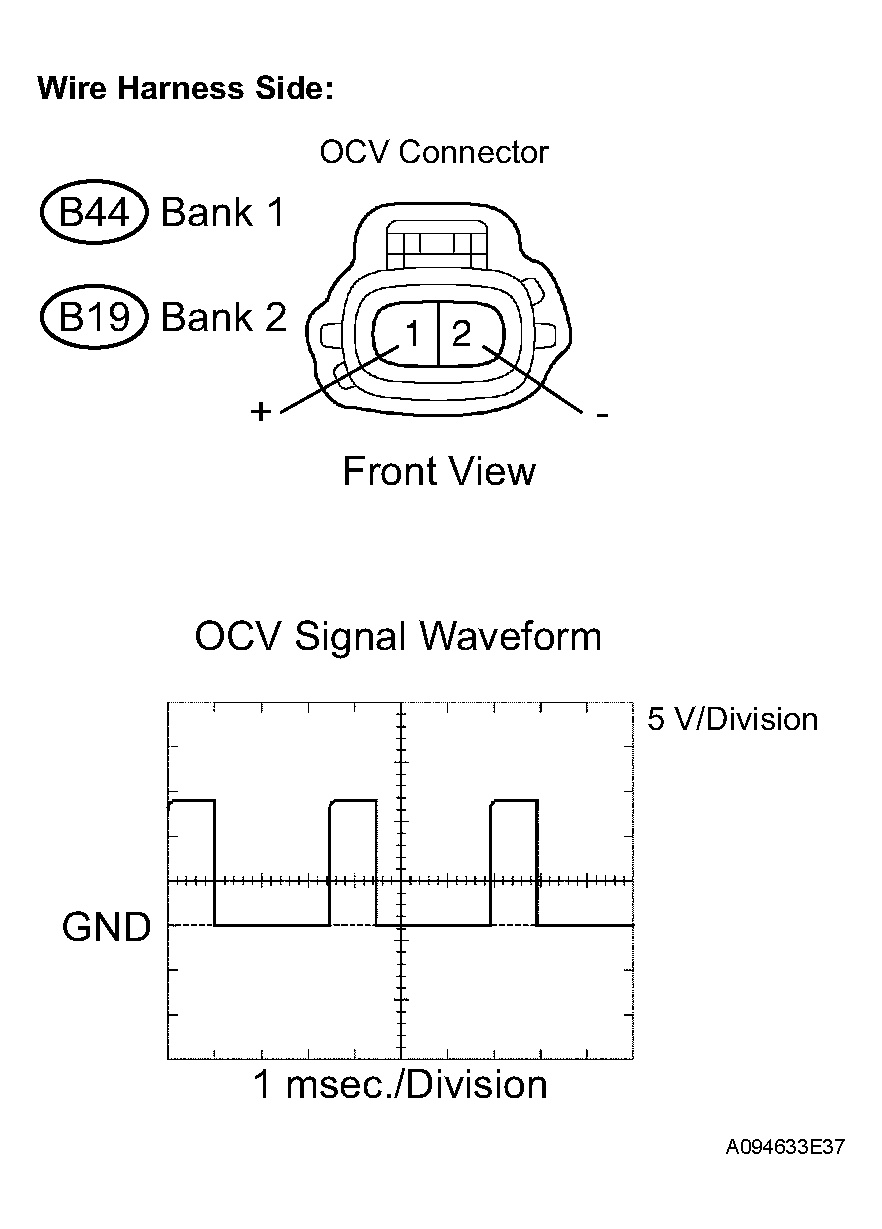

   Fig 1: Identifying B44 Or B19 OCV Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

3. INSPECT ECM (OCV SIGNAL)
   1. Inspect the ECM using an oscilloscope.

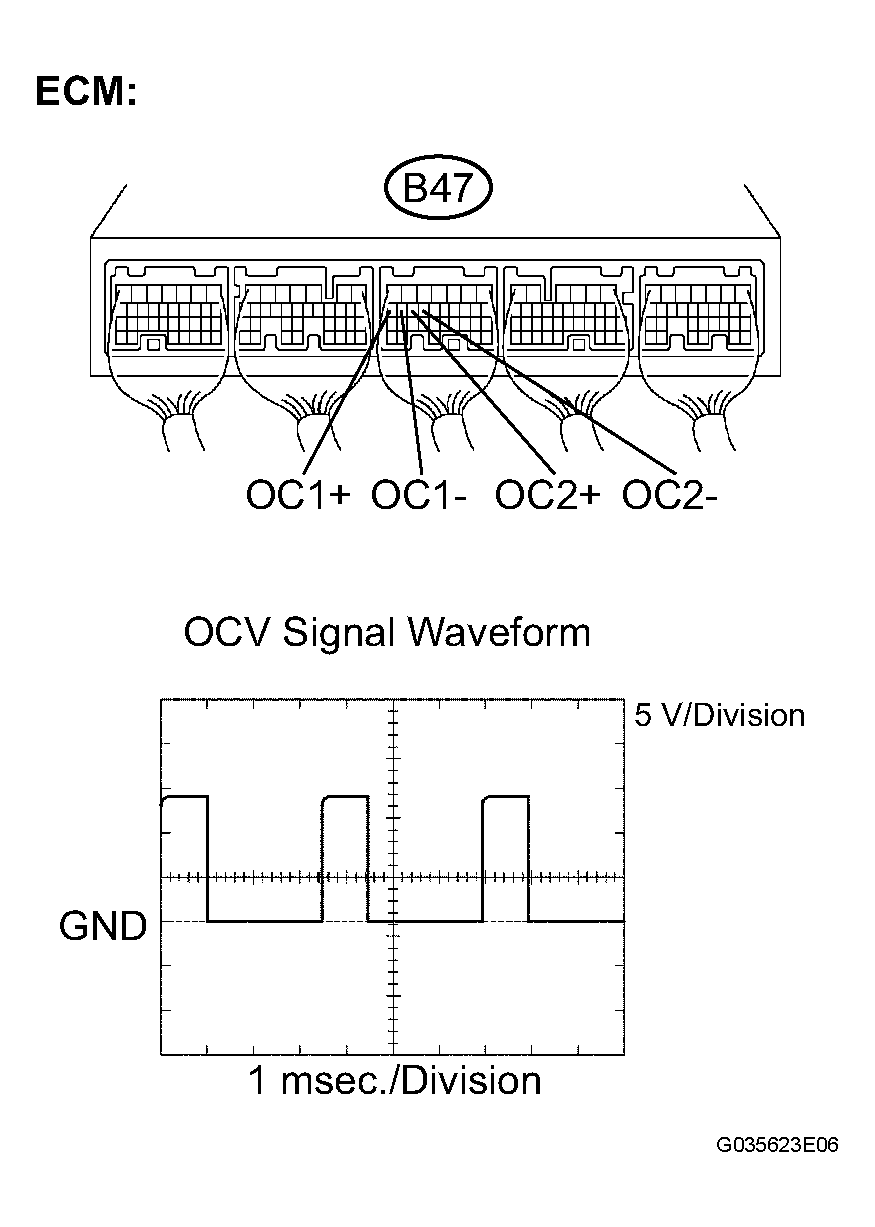

      Fig 2: Checking Waveform Between Terminals Of B47 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. While idling, check the waveform between the terminals of the B47 ECM connector.

      OK: Go to Next Step

      TESTER CONNECTION AND SPECIFIED CONDITION



      Tester Connections	Specified Conditions
      OC1+ (B47-17) - OC1- (B47-16)	Correct waveform appears
      OC2+ (B47-15) - OC2- (B47-14)	Correct waveform appears

   NG: Go to step 4

   OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (OCV SIGNAL OPEN CIRCUIT)

4. CHECK HARNESS AND CONNECTOR (OCV SIGNAL SHORT CIRCUIT)
   1. Disconnect the B44 or B19 OCV connector.
   2. Disconnect the B47 ECM connector.
   3. Measure the resistance between the wire harness side connectors.

      Standard resistance (Check for short)

      SPECIFIED CONDITION REFERENCE



      Symbols (Terminal No.)	Specified condition
      OC1+ (B47-17) - E1 (B47-1)	10 k or higher
      OC1- (B47-16) - E1 (B47-1)	10 k or higher
      OC2+ (B47-15) - E1 (B47-1)	10 k or higher
      OC2- (B47-14) - E1 (B47-1)	10 k or higher

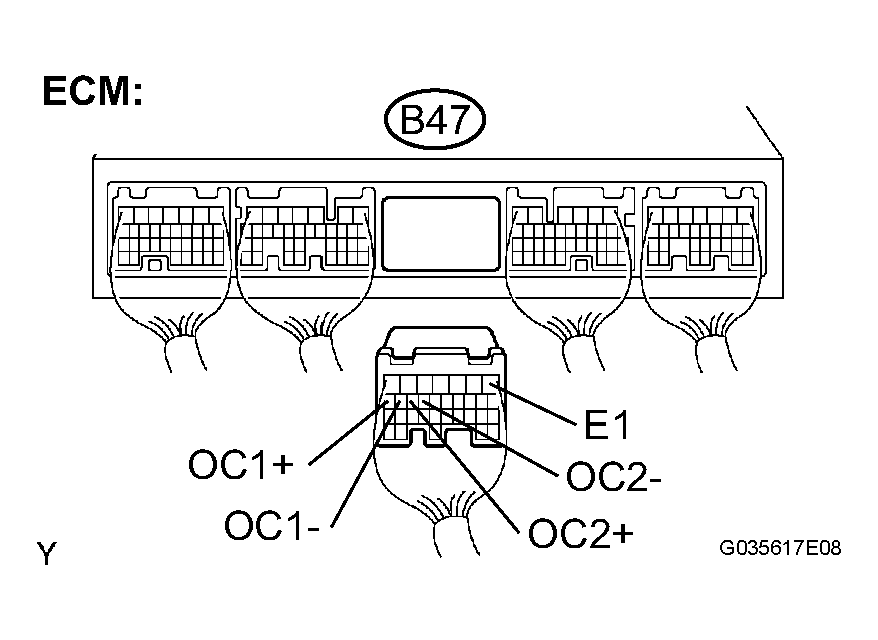

      Fig 3: Identifying B47 ECM Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE ECM
