DTC P0013 Camshaft Position "B" Actuator Circuit / Open (Bank 1); DTC P0023 Camshaft Position "B" Actuator Circuit / Open (Bank 2): Wiring Diagram

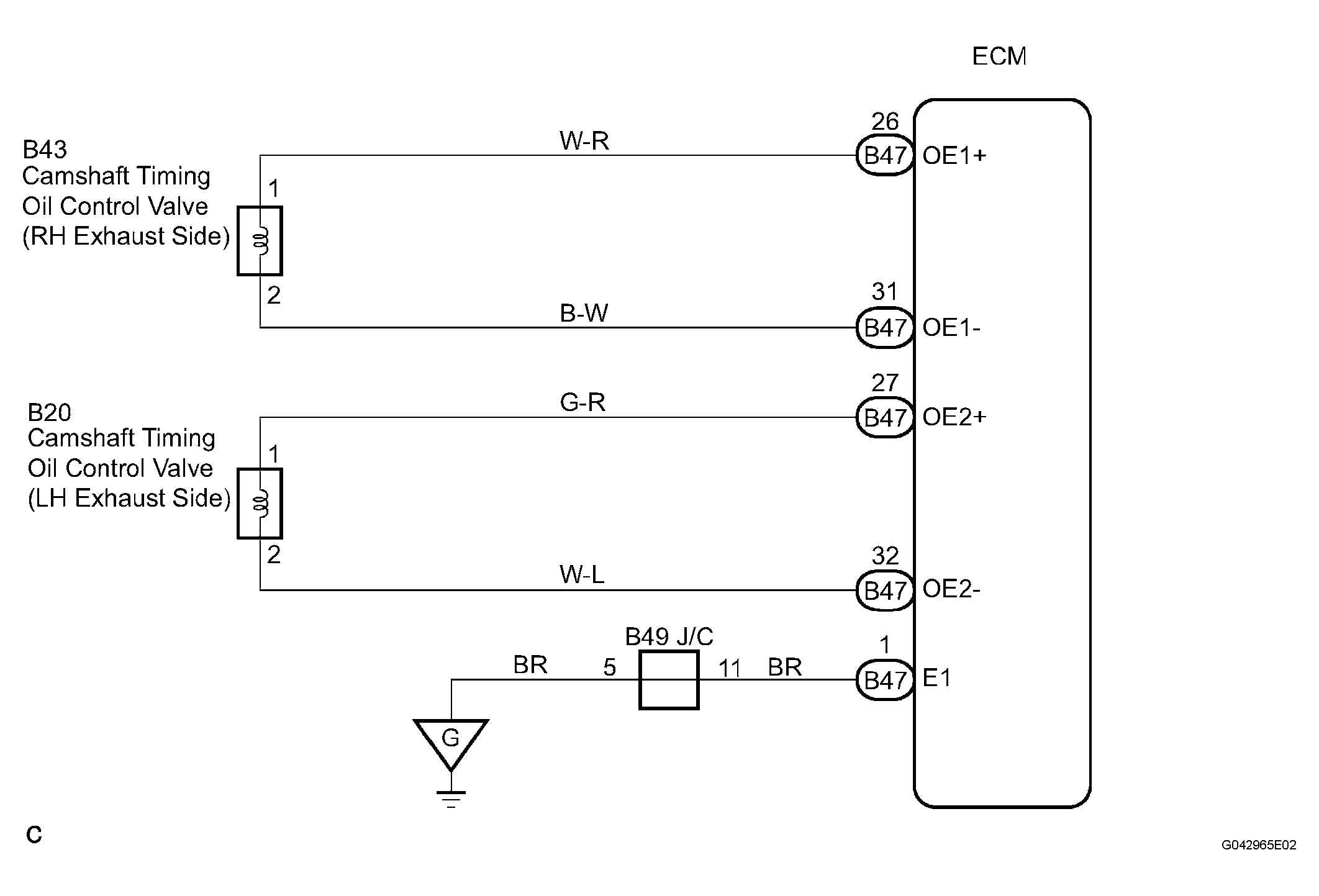

Fig 1: DTC P0013 Camshaft Position - Wiring Diagram
G04374891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
