Turn Signal and Hazard Warning Light, Shift Lock

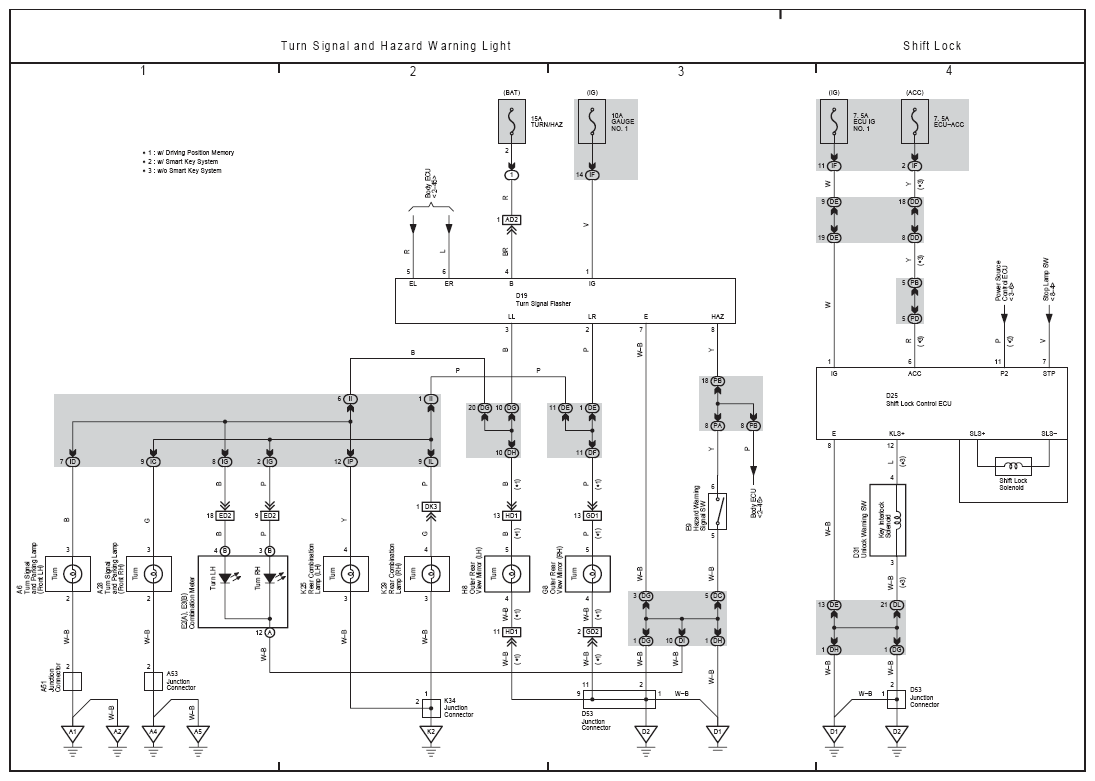

Fig 1: Turn Signal and Hazard Warning Light, Shift Lock Electrical Wiring Diagram

G08779585

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
