Avalon XLS
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Starting And Charging System
Starting And Charging System

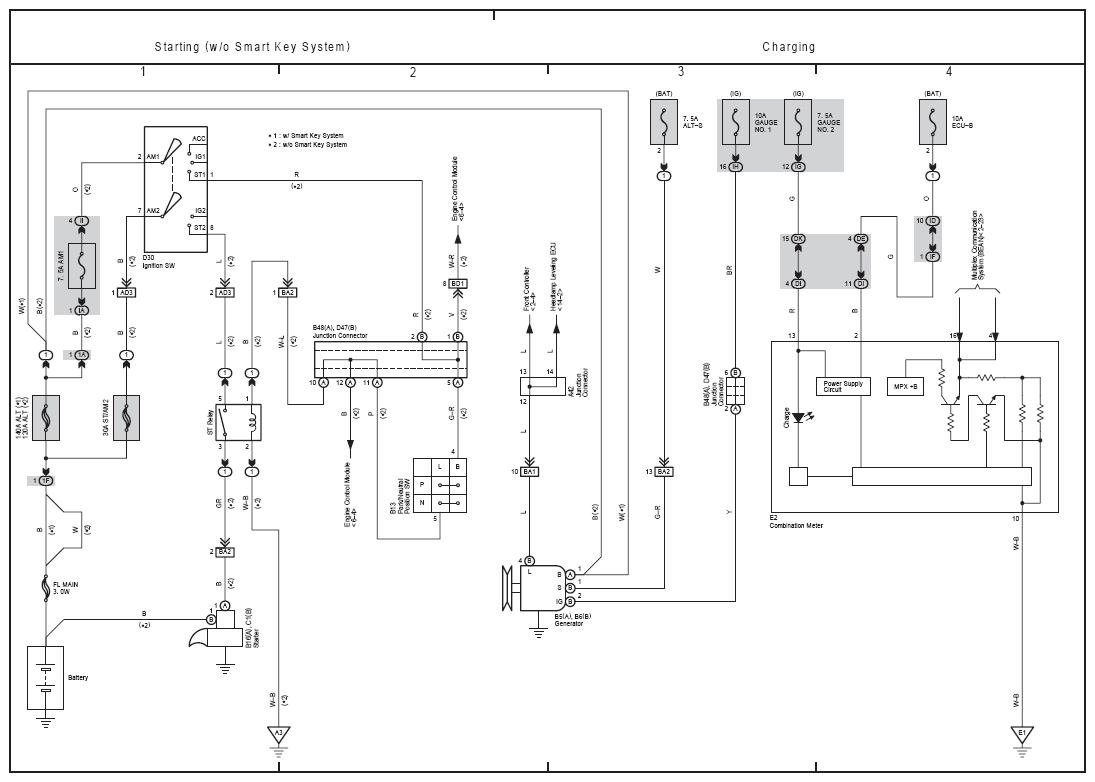

Fig 1: Starting And Charging System Electrical Wiring Diagram
