Toyota
>>
2006
>>
Avalon XLS
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Sliding Roof And Seat Heater (W/O Climate Control Seat)
Sliding Roof And Seat Heater (W/O Climate Control Seat)

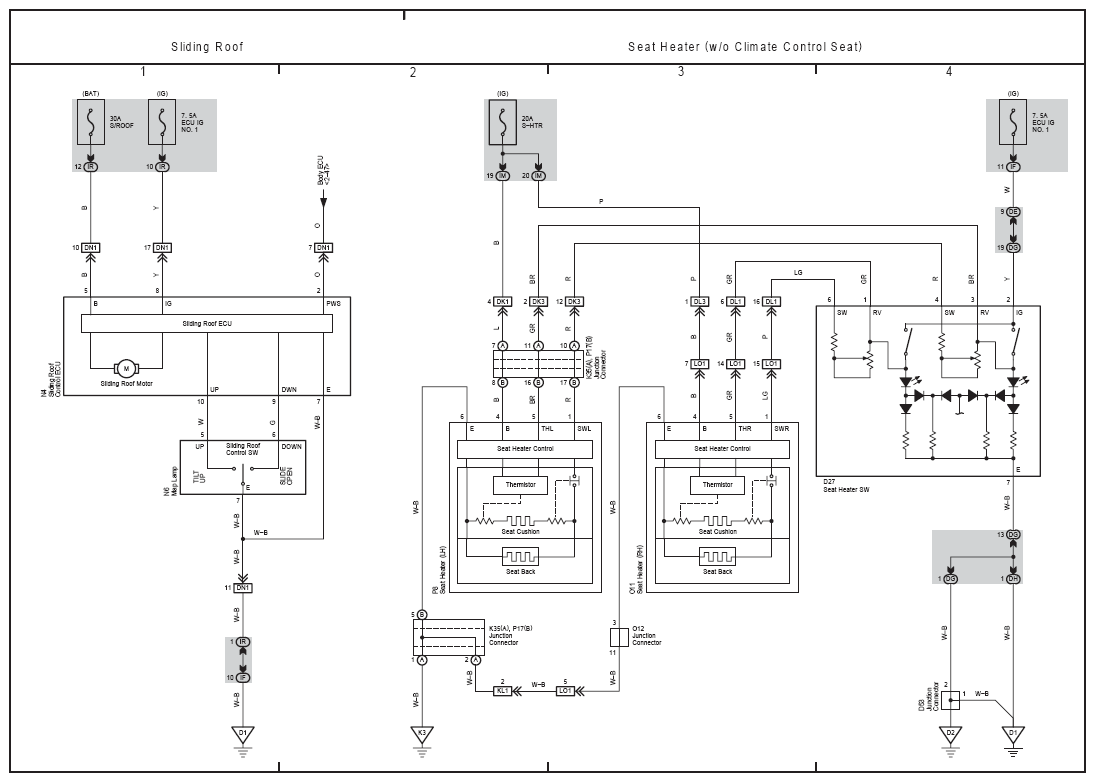

Fig 1: Sliding Roof And Seat Heater (W/O Climate Control Seat) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
