Remote Control Mirror (w/o Driving Position Memory) , Automatic Glare-Resistant EC Mirror And Compass, Fuel Lid Opener

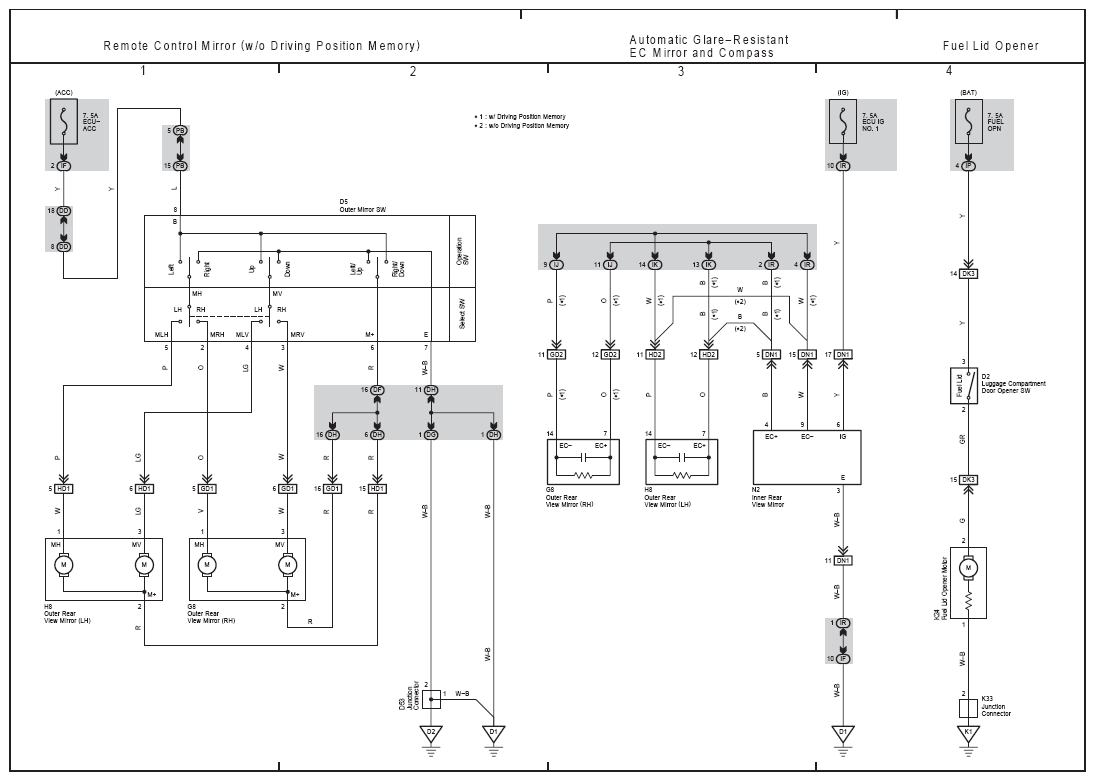

Fig 1: Remote Control Mirror (w/o Driving Position Memory) , Automatic Glare-Resistant EC Mirror And Compass, Fuel Lid Opener Electrical Wiring Diagram
G08779600Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
