OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Remote Control Mirror (W/ Driving Position Memory)
Remote Control Mirror (W/ Driving Position Memory)

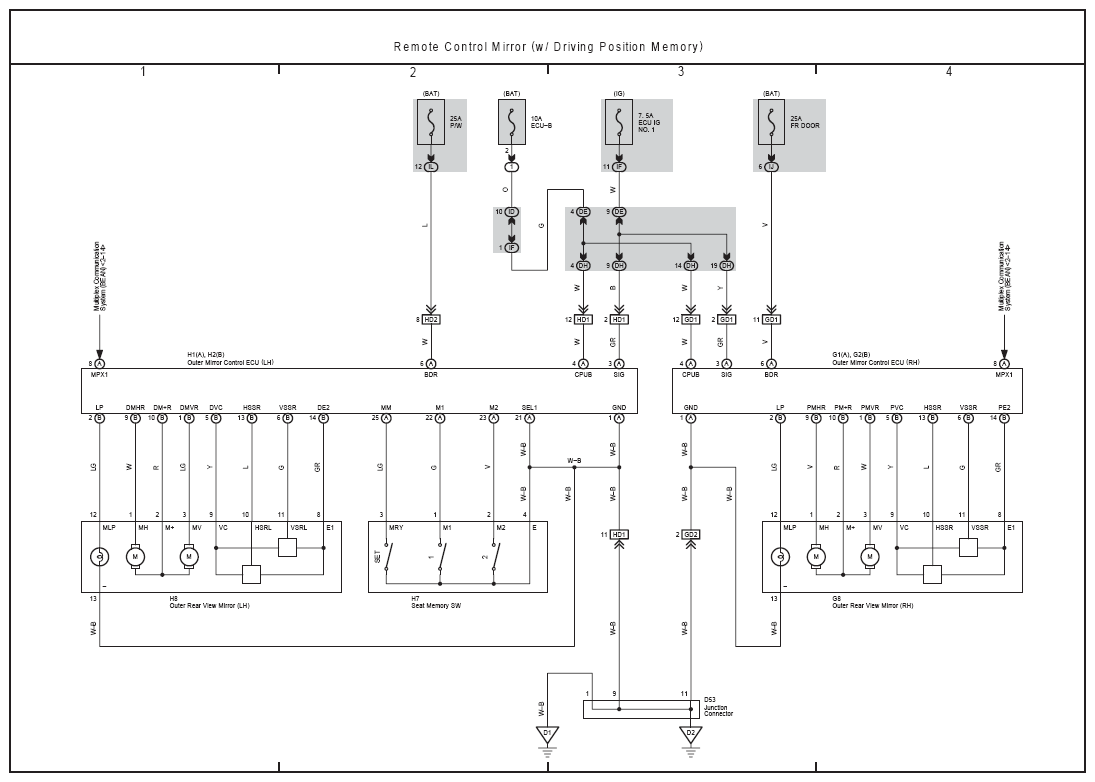

Fig 1: Remote Control Mirror (W/ Driving Position Memory) Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
