Power Seat

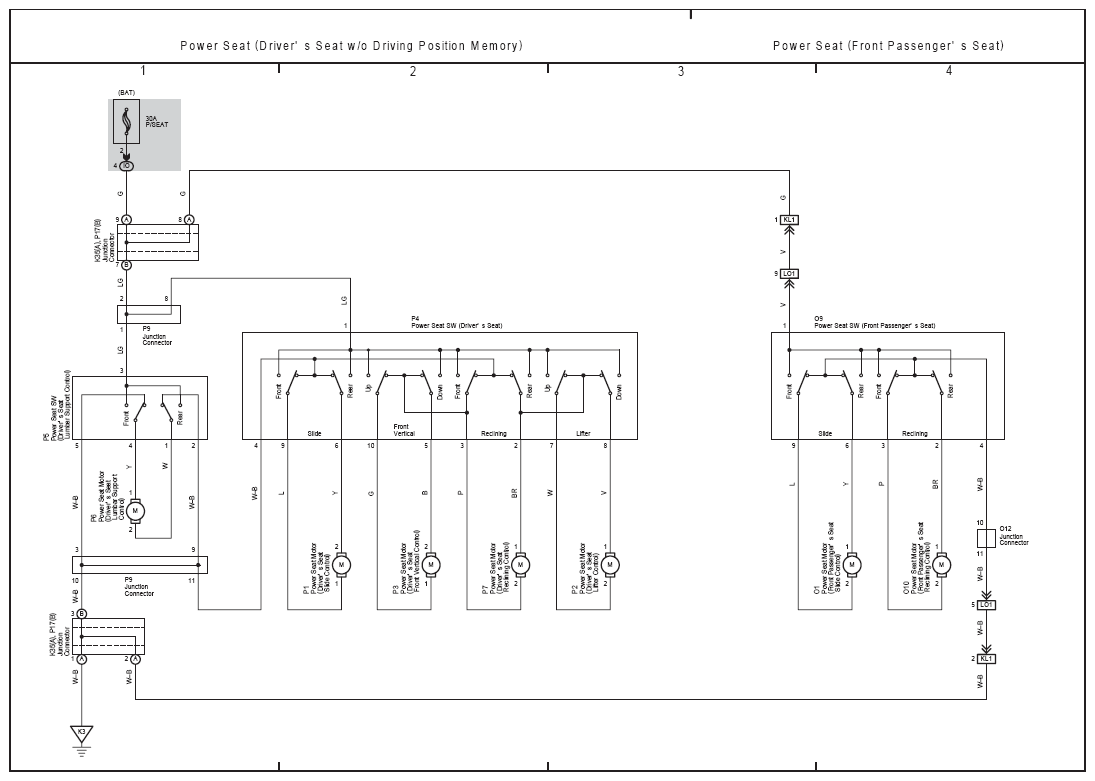

Fig 1: Power Seats Electrical Wiring Diagram

G08779598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
