Power Seat (Driver's Seat w/Driving Position Memory), Power Outlet

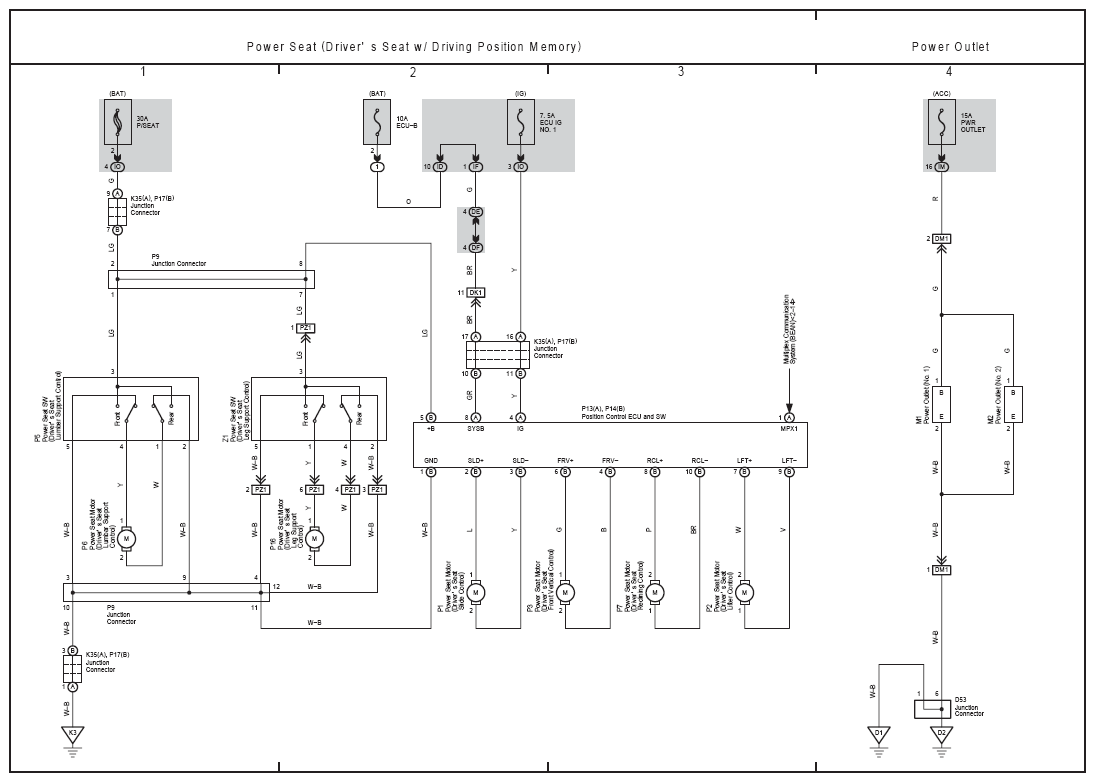

Fig 1: Power Seat (Driver's Seat w/Driving Position Memory) And Power Outlet Electrical Wiring Diagram
G08779597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
