Multi Display (W/ Navigation System) And Navigation System

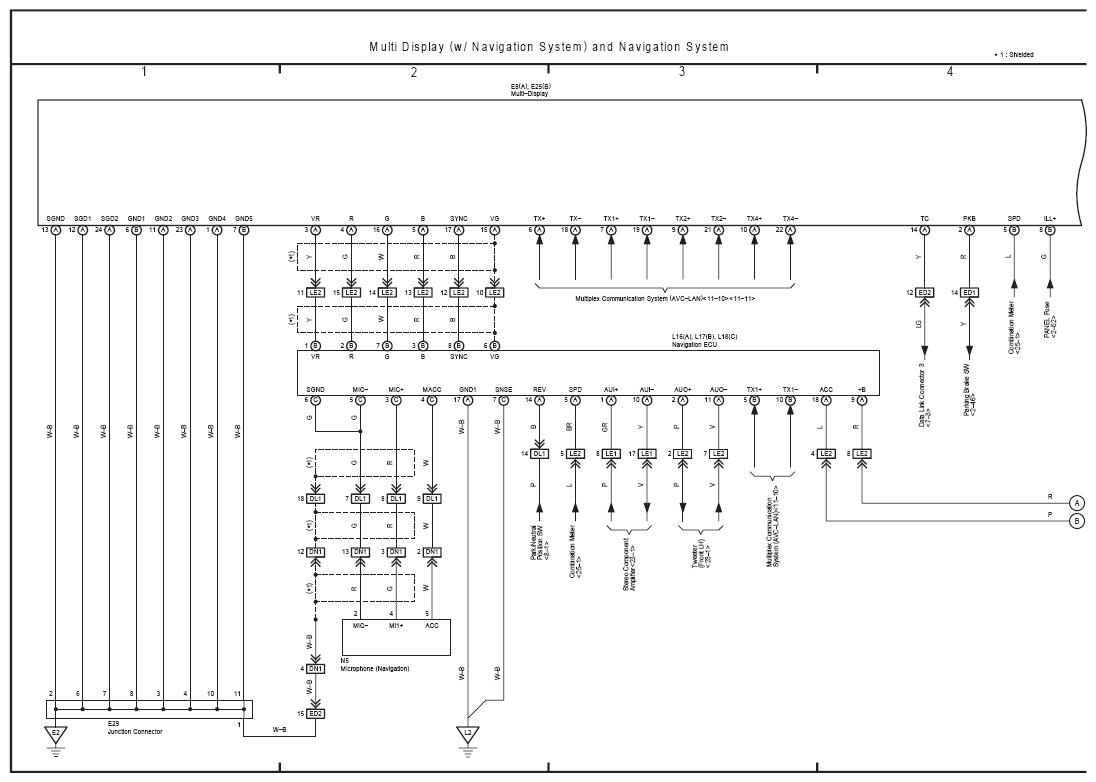

Fig 1: Multi Display (W/ Navigation System) And Navigation System Electrical Wiring Diagram (1 Of 2)
G08779604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Multi Display (W/ Navigation System) And Navigation System Electrical Wiring Diagram (2 Of 2)
G08779605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
