Electronically Controlled Transmission And A/T Indicator

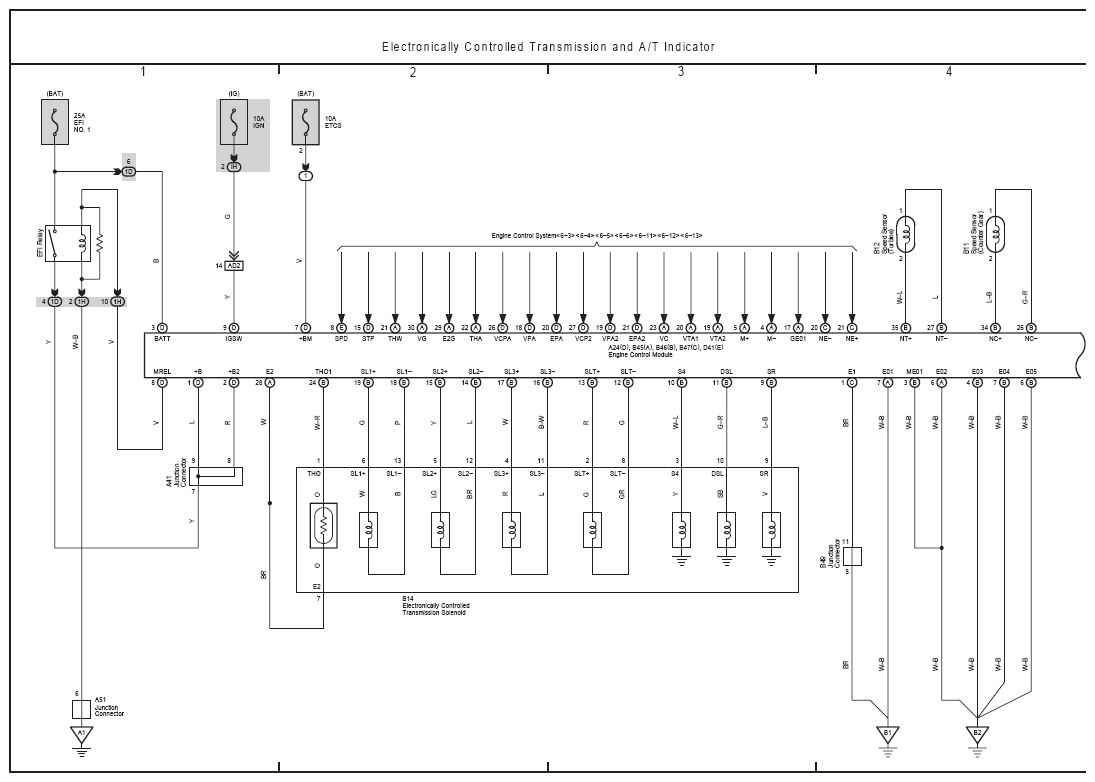

Fig 1: Electronically Controlled Transmission And A/T Indicator Electrical Wiring Diagram (1 Of 2)
G08779586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

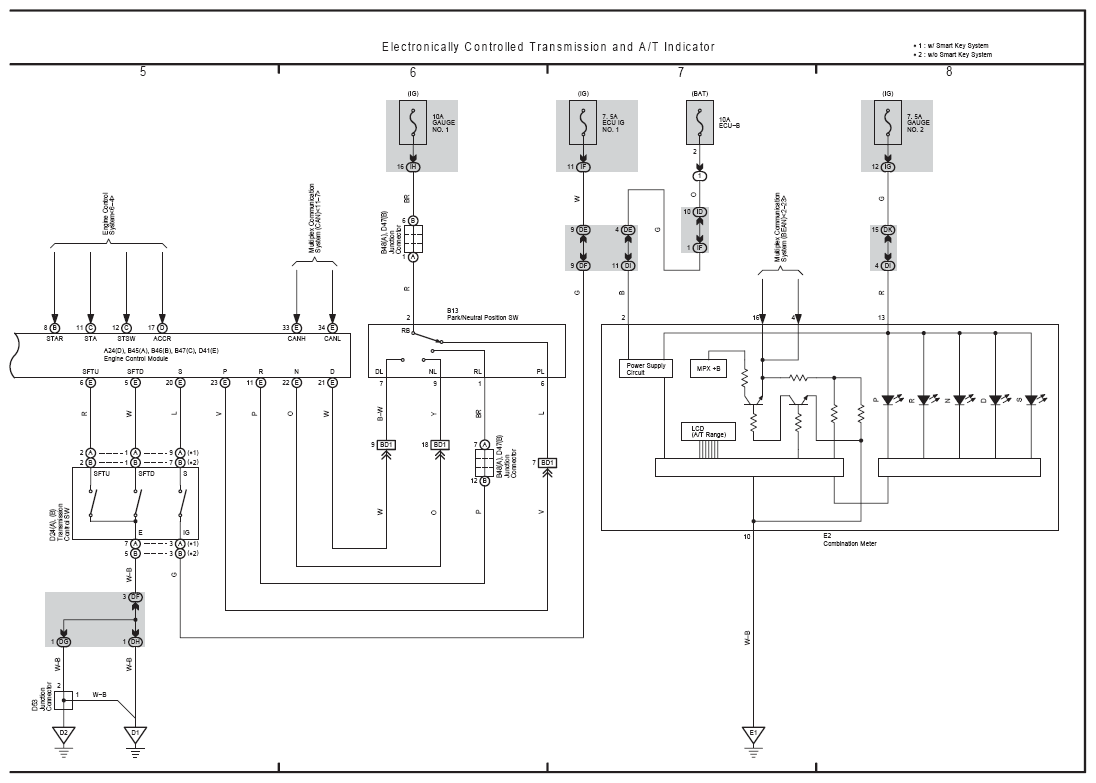

Fig 2: Electronically Controlled Transmission And A/T Indicator Electrical Wiring Diagram (2 Of 2)
G08779588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
