Clock, Cigarette Lighter And Rear Sunshade, Multidisplay

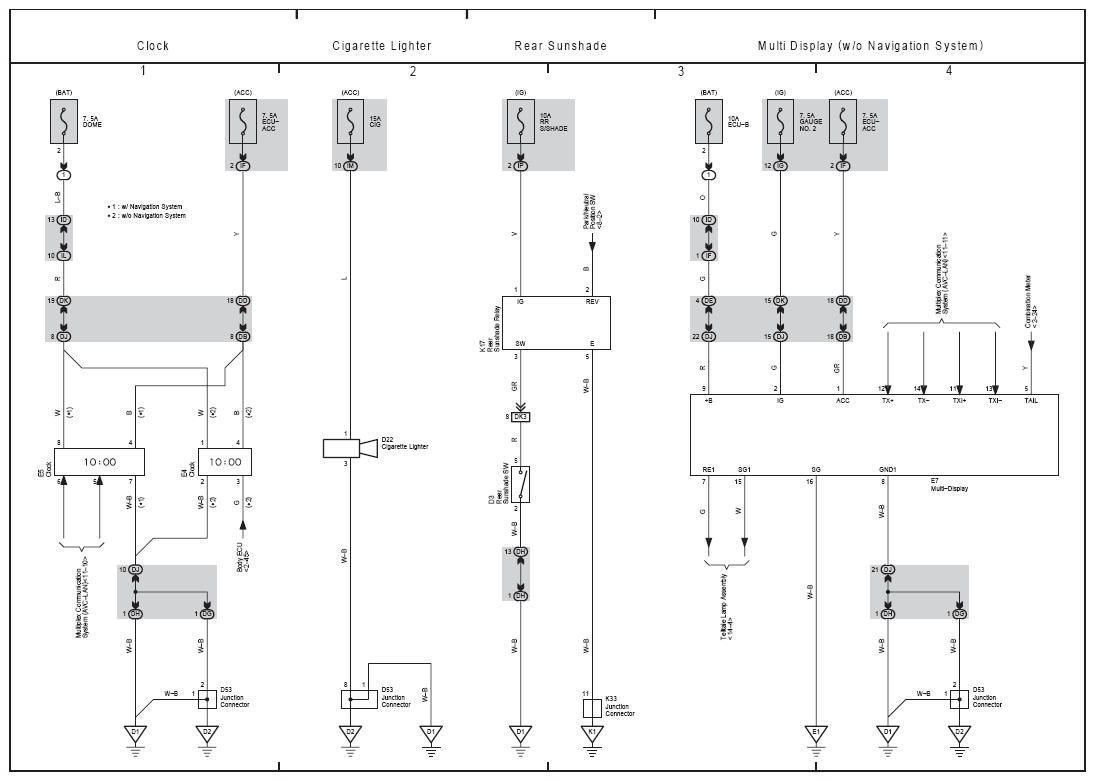

Fig 1: Clock, Cigarette Lighter And Rear Sunshade, Multidisplay Electrical Wiring Diagram

G08779596

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
