Climate Control Seat And Seat Heater (W/ Climate Control Seat)

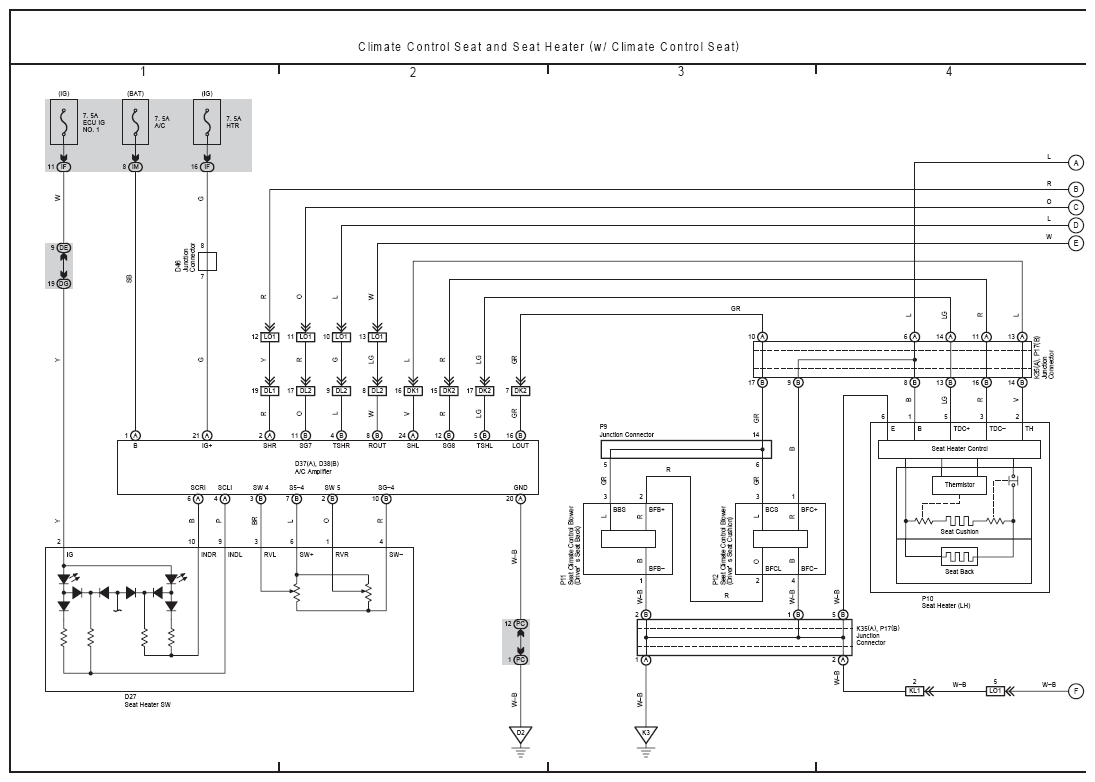

Fig 1: Climate Control Seat And Seat Heater (W/ Climate Control Seat) Electrical Wiring Diagram (1 Of 2)
G08779601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

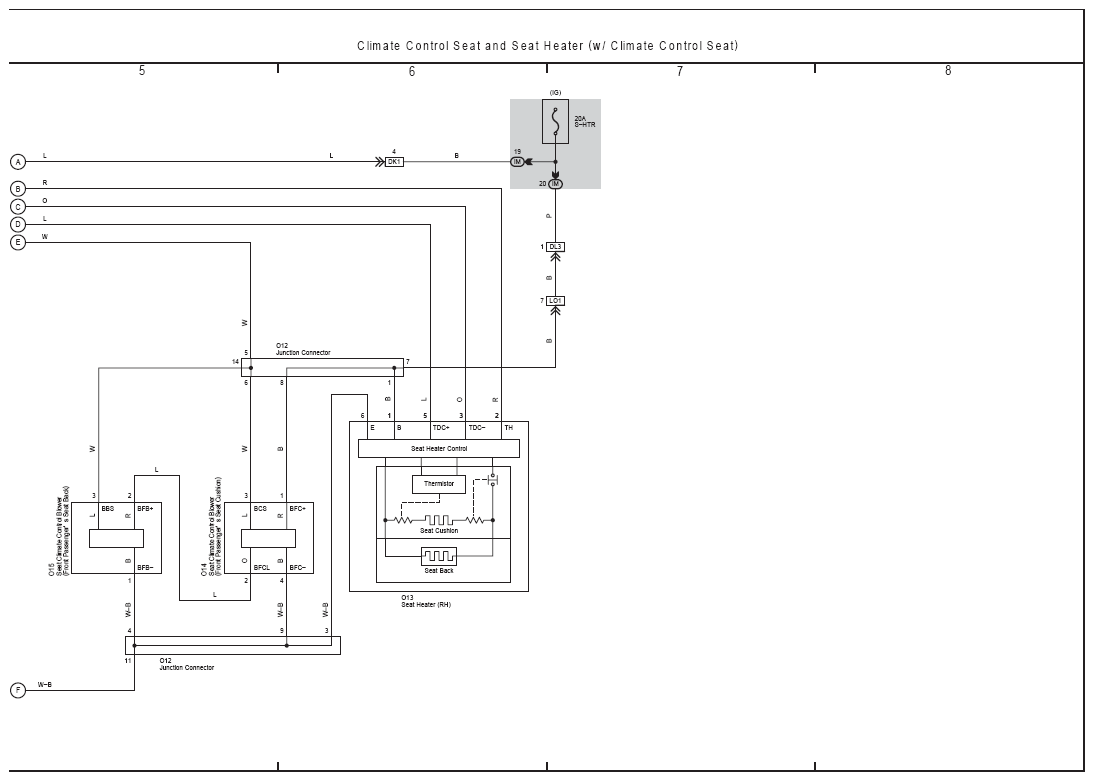

Fig 2: Climate Control Seat And Seat Heater (W/ Climate Control Seat) Electrical Wiring Diagram (2 Of 2)
G08779602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
