Audio System (12 Speaker)

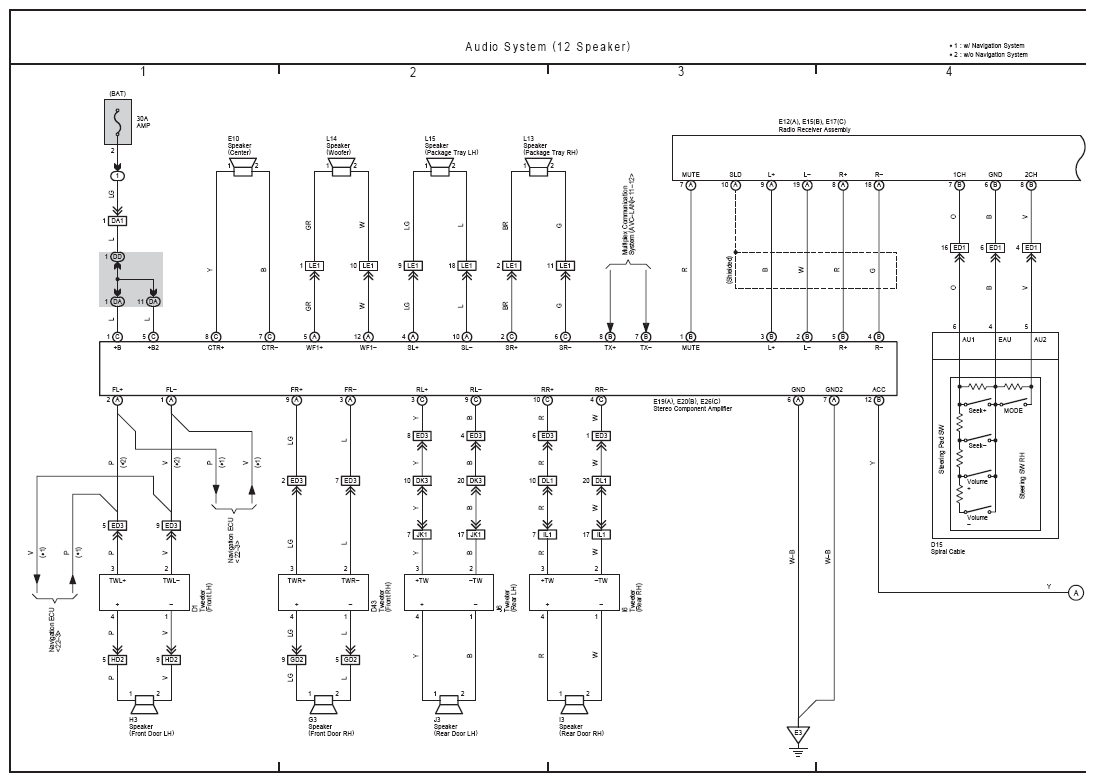

Fig 1: Audio System (12 Speaker) Electrical Wiring Diagram (1 Of 2)
G08779606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

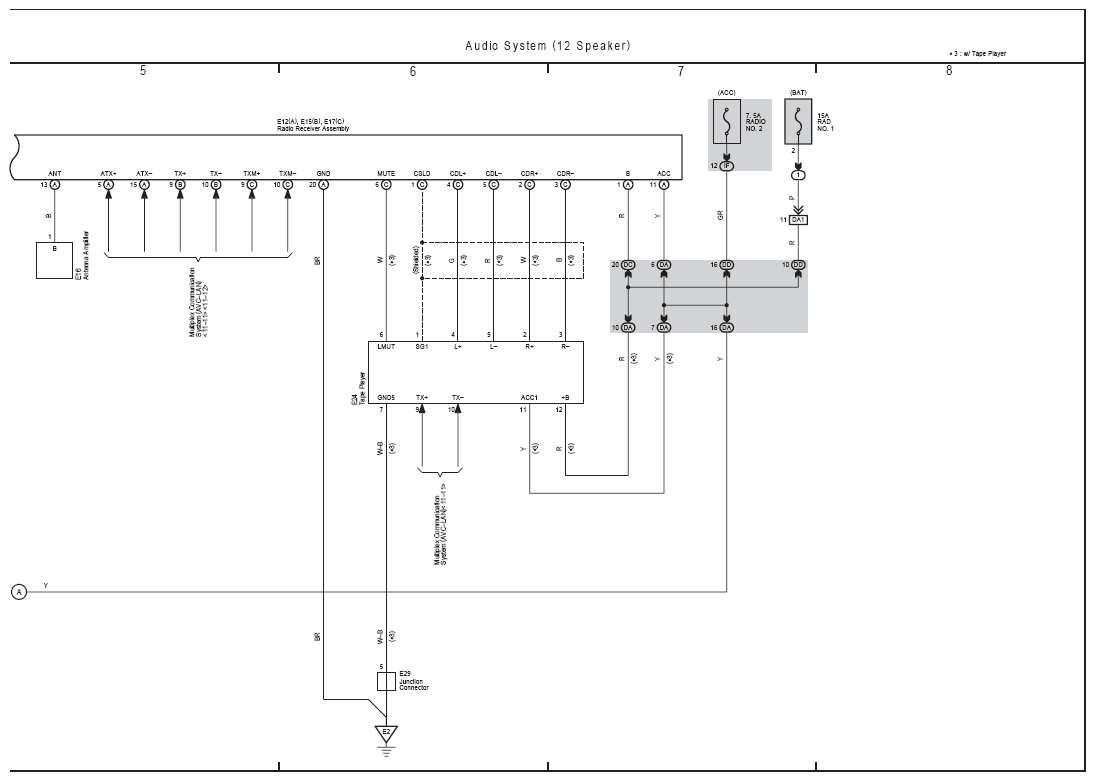

Fig 2: Audio System (12 Speaker) Electrical Wiring Diagram (2 Of 2)
G08779607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
