ABS (W/ VSC), TRAC And VSC, Multiplex Communication System

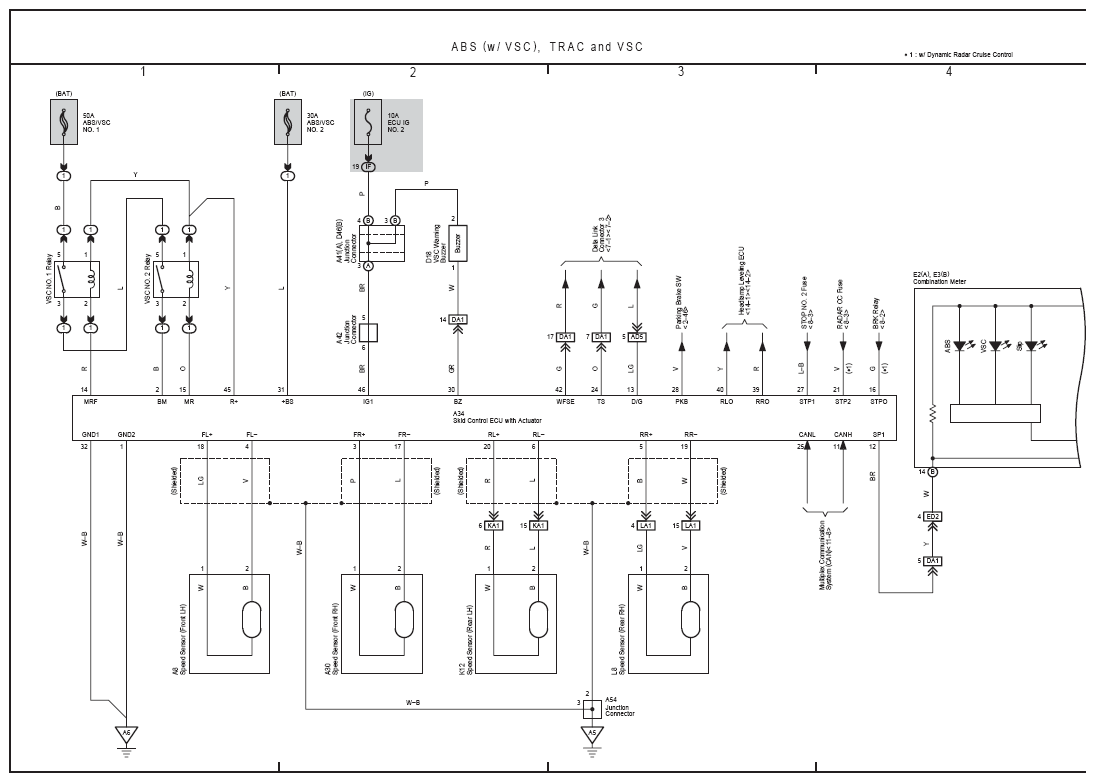

Fig 1: ABS (W/ VSC), TRAC And VSC Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

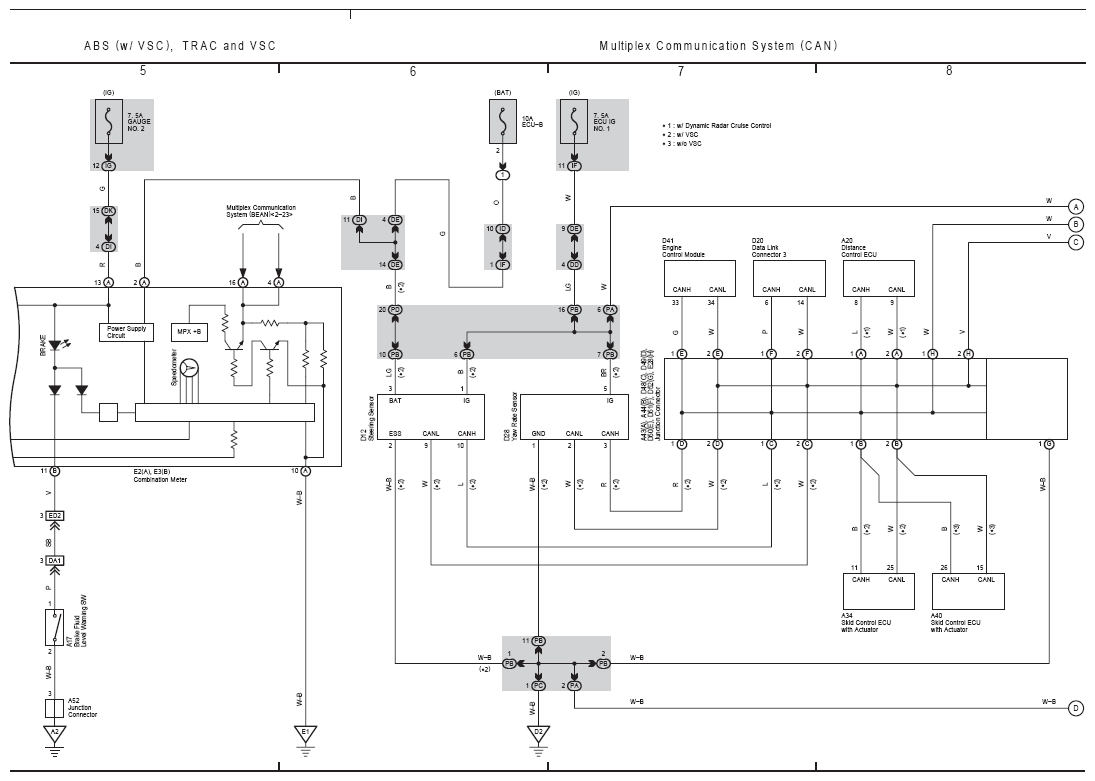

Fig 2: Multiplex Communication System (CAN) Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

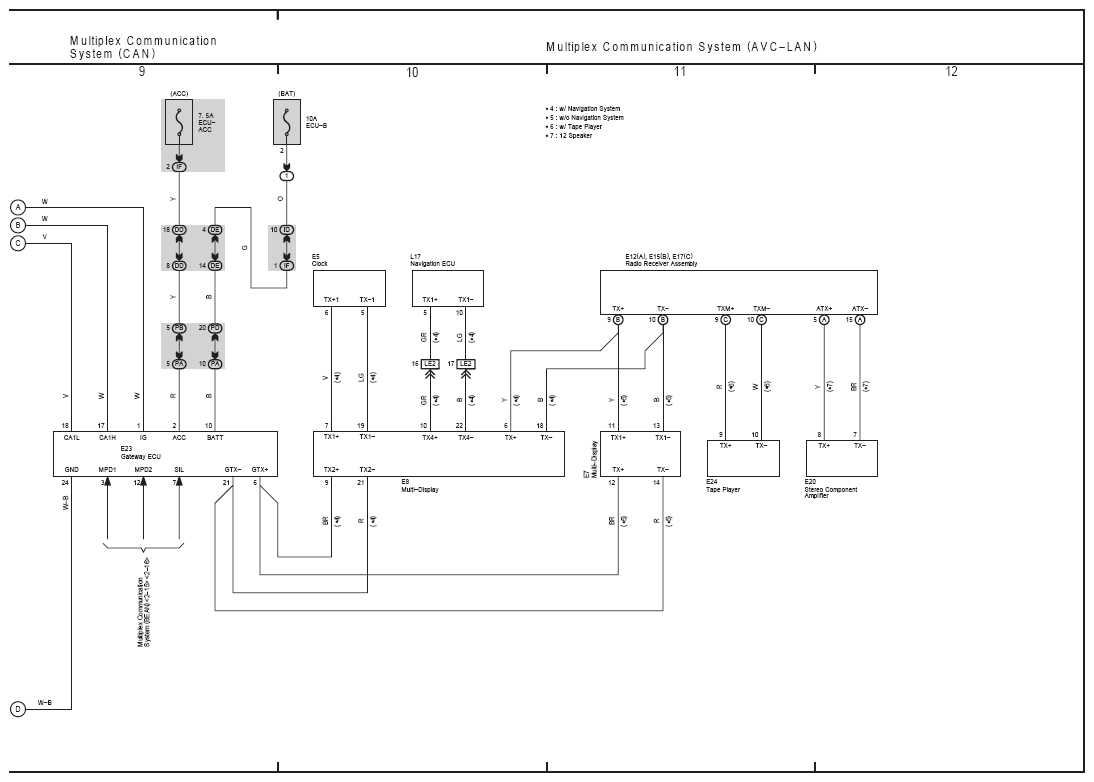

Fig 3: Multiplex Communication System (AVC-LAN) Electrical Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
