Inspection Procedure

HINT:

• Displays except for the seat belt warning indicator are shown in the navigation system (See PROBLEM SYMPTOMS TABLE ), supplemental restraint system (See PROBLEM SYMPTOMS TABLE ) , and A/C system (See PROBLEM SYMPTOMS TABLE ).
• The passenger seat belt warning light can be inspected with it removed from the vehicle. The accessory meter assembly should be replaced if the passenger seat belt warning light has a malfunction because this part is not independently supplied.

1. PERFORM ACTIVE TEST BY INTELLIGENT TESTER
   1. Operate the intelligent tester according to the steps on the display and select the "ACTIVE TEST".

      DATA LIST / AIR CONDITIONER:

      DATA LIST / AIR CONDITIONER REFERENCE



      Item	Test Details	Diagnostic Note
      P-BELT REMIND	Indicat. Light P-SEAT BELT (OFF / ON)	Confirm that the vehicle is stopped, engine idling

   OK:

   Indicator light (ON / OFF) can be switched by ACTIVE TEST.

   OK: Go to step  5

   NG: GO TO NEXT STEP

2. CHECK HARNESS AND CONNECTOR (BETWEEN PASSENGER SEAT BELT WARNING LIGHT AND COMBINATION ME)
   1. Disconnect the E2 and E11 connectors.
   2. Measure the resistance to the value(s) in the table blow.

      Resistance

      RESISTANCE REFERENCE



      Tester Connection	Condition	Specified Condition
      AE2-9 (P BEL) - E11-9 (PBEW)	Always	Below 1 Ω
      E11-9 (PBEW) - Body ground	Always	10 kΩ or higher

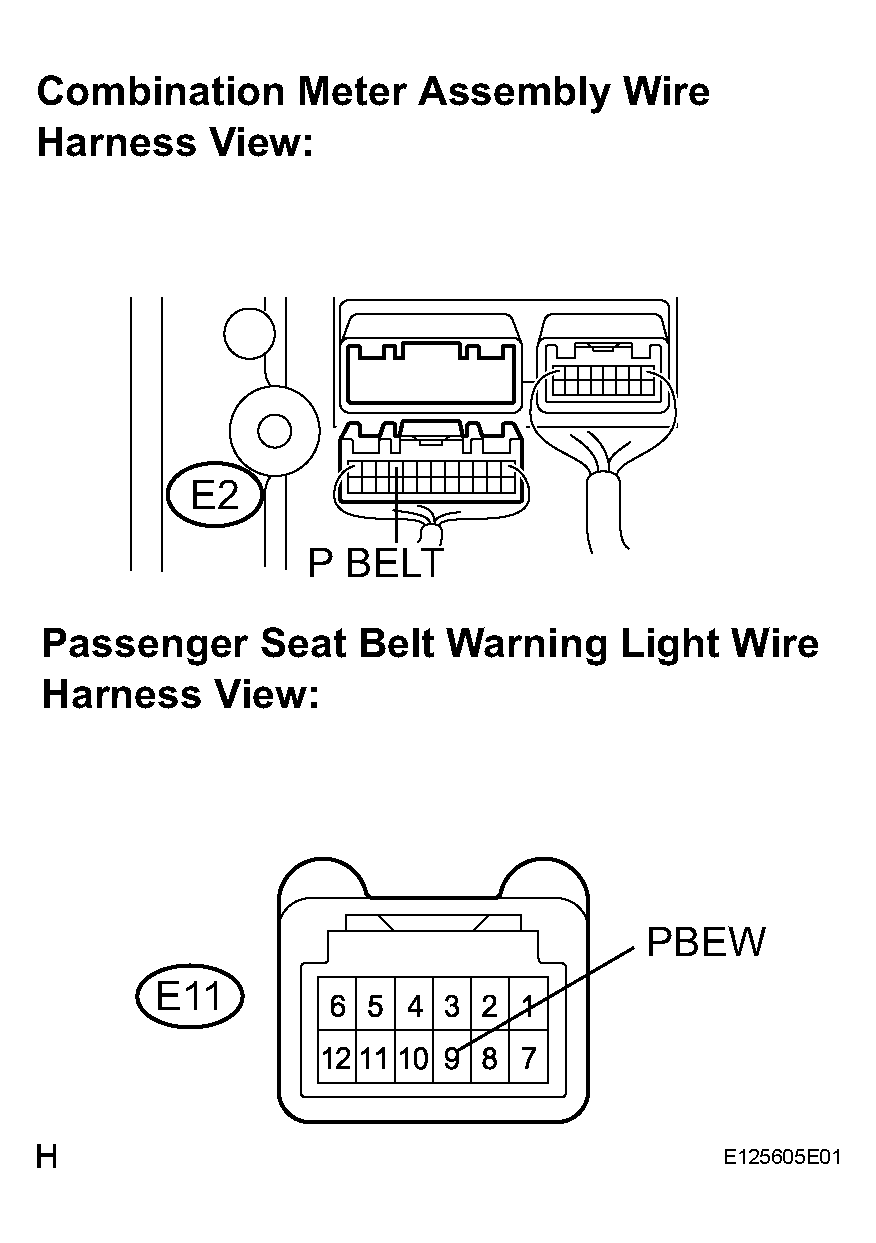

   Fig 1: Disconnecting E2 And E11 Connectors

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: GO TO NEXT STEP

3. INSPECT COMBINATION METER ASSEMBLY
   1. Disconnect the E2 connector
   2. Measure the voltage according the value(s) in the table below.

      Voltage

      VOLTAGE REFERENCE



      Tester Connection	Condition	Specified Condition
      E11-1 (IG+) - Body ground	Ignition switch on (IG)	10 to 14 V

   OK: REPLACE COMBINATION METER ASSEMBLY

   NG: GO TO NEXT STEP

   Fig 2: Disconnecting E2 Connector

   Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4. CHECK WIRE HARNESS AND CONNECTOR (PASSENGER SEAT BELT WARNING CIRCUIT)
   1. Disconnect the E2 connector.
   2. Measure the voltage according the value(s) in the table below.

      Voltage

      VOLTAGE REFERENCE



      Tester Connection	Condition	Specified Condition
      E11-1 (IG+) - Body ground	Ignition switch on (IG)	10 to 14 V

      Fig 3: Disconnecting E2 Connector

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
   3. Measure the resistance according to the value(s) in the table below.

      Resistance

      RESISTANCE REFERENCE



      Tester Connection	Condition	Specified Condition
      E11-6 (GND2) - Body ground	Always	Below 1 Ω

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE ACCESSORY METER ASSEMBLY

5. READ VALUE OF INTELLIGENT TESTER
   1. Operate the intelligent tester according to the step on the display and select "DATA LIST".

      SRS AIRBAG:

      SRS AIRBAG REFERENCE



      Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
      P BUCKLE SW	Passenger seat belt buckle switch is ON / OFF	ON: Seat belt is fastened OFF: Seat belt is unfastened	-

   OK:

   Switch condition (ON / OFF) can be switched by actual operation.

   NG: GO TO  SUPPLEMENTAL RESTRAINT SYSTEM

   OK: GO TO NEXT STEP

6. CHECK HARNESS AND CONNECTOR (AIRBAG SENSOR ASSEMBLY CENTER - COMBINATION METER)
   1. Disconnect the D23 and E3 connectors.

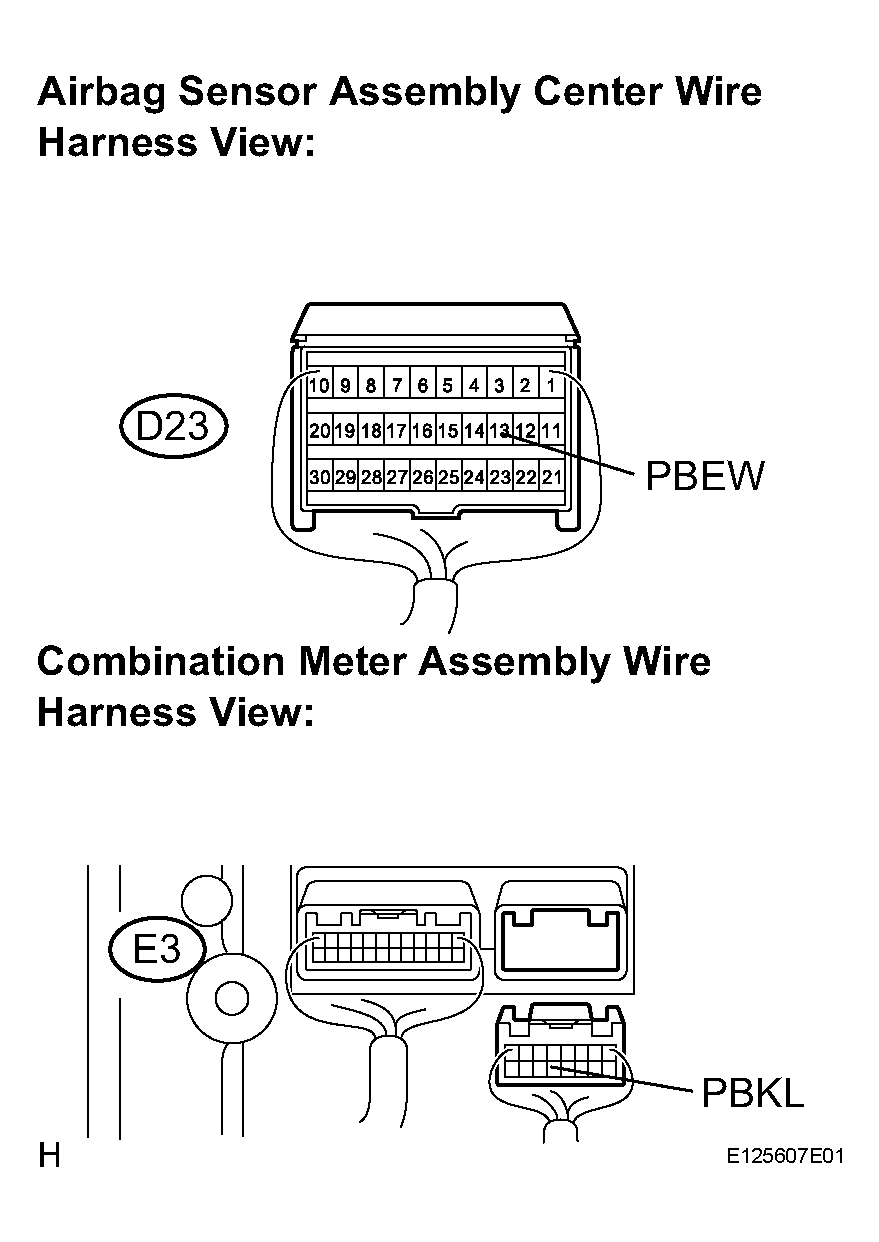

      Fig 4: Disconnecting D23 And E3 Connectors

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
   2. Measure the resistance according to the value(s) in the table below.

      Resistance

      RESISTANCE REFERENCE



      Tester Connection	Condition	Specified Condition
      D23-13 (PBEW) - E3-13 (PBKL)	Always	Below 1 Ω
      E3-13 (PBKL) - Body ground	Always	10 kΩ or higher

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: GO TO NEXT STEP

7. INSPECT COMBINATION METER ASSEMBLY
   1. Disconnect the D23 connector.
      Fig 5: Identifying D23 Connector Terminals

      Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
   2. Measure the voltage according to the value(s) in the table below.

      Voltage

      VOLTAGE REFERENCE



      Tester Connection	Condition	Specified Condition
      D23-13 (PBEW) - Body ground	Ignition switch on (IG)	10 to 14 V

   NG: REPLACE COMBINATION METER ASSEMBLY

   OK: REPLACE CENTER AIRBAG SENSOR ASSEMBLY
