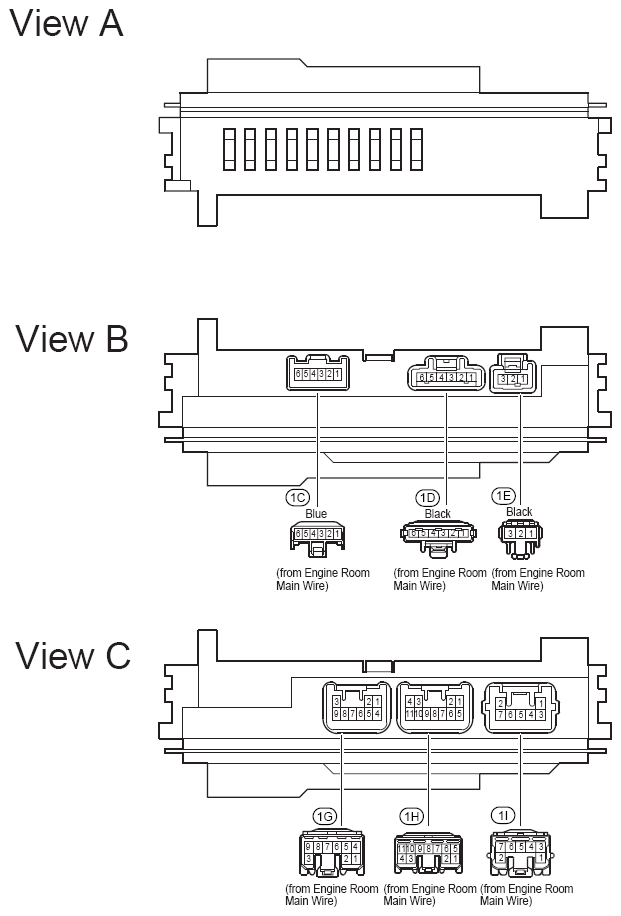

Engine Room Relay Block And Engine Room Junction Block - Engine Compartment Left

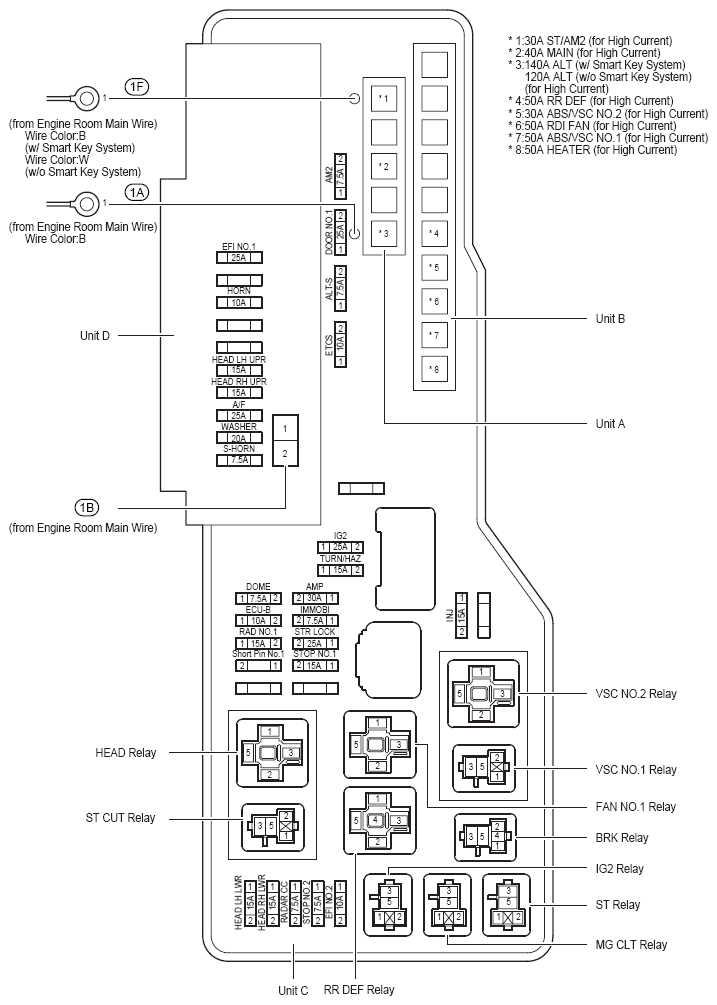

ENGINE ROOM R/B AND J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| ST CUT Relay |
| Head Relay |
| VSC No.2 Relay |
| VSC No.1 Relay |
| Fan No.1 Relay |
| BRK Relay |
| IG2 Relay |
| ST Relay |
| MG CLT Relay |
| RR DEF Relay |
Engine Room R/B Fuse & Relay Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | ALT-S | Charging |
| 7.5A | AM2 | Cruise Control |
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Push-Button Start, Engine Immobiliser and Steering Lock | ||
| 7.5A | DOME | Clock |
| Combination Meter | ||
| Door Lock Control | ||
| Garage Door Opener | ||
| Headlight | ||
| Illumination | ||
| Interior Light | ||
| Taillight | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/Smart Key System) | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 7.5A | IMMOBI | Engine Immobiliser System (w/o Smart Key System) |
| Push-Button Start, Engine Immobiliser and Steering Lock | ||
| Wireless Door Lock Control (w/Smart Key System) | ||
| 7.5A | RADAR CC | ABS (w/VSC), TRAC and VSC |
| Dynamic Radar Cruise Control | ||
| Stop Light | ||
| 7.5A | S-HORN | Theft Deterrent |
| Wireless Door Lock Control (w/Smart Key System) | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 7.5A | STOP NO.2 | ABS (w/VSC), TRAC and VSC |
| ABS (w/o VSC) | ||
| Dynamic Radar Cruise Control | ||
| Stop Light | ||
| 10A | ECU-B | ABS (w/VSC), TRAC and VSC |
| ABS (w/o VSC) | ||
| Air Conditioning | ||
| Automatic Light Control | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control | ||
| Door Lock Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Engine Immobiliser System (w/o Smart Key System) | ||
| Front Fog Light | ||
| 10A | ECU-B | Headlight |
| Horn | ||
| Illumination | ||
| Interior Light | ||
| Key Reminder | ||
| Light Auto Turn Off System | ||
| Luggage Compartment Door Opener | ||
| Multi Display (w/Navigation System) and Navigation System | ||
| Multi Display (w/o Navigation System) | ||
| Multiplex Communication System (AVC-LAN) | ||
| Multiplex Communication System (BEAN) | ||
| Multiplex Communication System (CAN) | ||
| Power Seat (Driver's Seat w/Driving Position Memory) | ||
| Power Window | ||
| Push-Button Start, Engine Immobiliser and Steering Lock | ||
| Remote Control Mirror (w/Driving Position Memory) | ||
| Seat Belt Warning | ||
| Sliding Roof | ||
| SRS | ||
| Taillight | ||
| Theft Deterrent | ||
| Turn Signal and Hazard Warning Light | ||
| Wiper and Washer | ||
| Wireless Door Lock Control (w/Smart Key System) | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 10A | EFI NO.2 | Engine Control |
| 10A | ETCS | Cruise Control |
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| 10A | HORN | Horn |
| Theft Deterrent | ||
| Wireless Door Lock Control (w/Smart Key System) | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 15A | HEAD LH LWR | Headlight |
| 15A | HEAD LH UPR | Headlight |
| 15A | HEAD RH LWR | Headlight |
| 15A | HEAD RH UPR | Headlight |
| 15A | INJ | Engine Control |
| Ignition | ||
| 15A | RAD NO.1 | Audio System (12 Speaker) |
| Audio System (9 Speaker) | ||
| Multi Display (w/Navigation System) and Navigation System | ||
| 15A | STOP NO.1 | ABS (w/VSC), TRAC and VSC |
| ABS (w/o VSC) | ||
| Cruise Control | ||
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Push-Button Start, Engine Immobiliser and Steering Lock | ||
| Shift Lock | ||
| Stop Light | ||
| 15A | TURN/HAZ | Turn Signal and Hazard Warning Light |
| 20A | WASHER | Wiper and Washer |
| 25A | A/F | Engine Control |
| 25A | DOOR NO.1 | Door Lock Control |
| Theft Deterrent | ||
| Wireless Door Lock Control (w/Smart Key System) | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 25A | EFI NO.1 | Cruise Control |
| Dynamic Radar Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Engine Immobiliser System (w/o Smart Key System) | ||
| 25A | IG2 | Push-Button Start, Engine Immobiliser and Steering Lock |
| 25A | STR LOCK | Push-Button Start, Engine Immobiliser and Steering Lock |
| 30A | ABS/VSC NO.2 | ABS (w/VSC), TRAC and VSC |
| ABS (w/o VSC) | ||
| Dynamic Radar Cruise Control | ||
| 30A | AMP | Audio System (12 Speaker) |
| 30A | ST/AM2 | Push-Button Start, Engine Immobiliser and Steering Lock |
| Starting (w/o Smart Key System) | ||
| 40A | MAIN | Automatic Light Control |
| Headlight | ||
| Headlight Beam Level Control | ||
| Light Auto Turn Off System | ||
| Theft Deterrent | ||
| Wireless Door Lock Control (w/Smart Key System) | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 50A | ABS/VSC NO.1 | ABS (w/VSC), TRAC and VSC |
| ABS (w/o VSC) | ||
| Dynamic Radar Cruise Control | ||
| 50A | HEATER | Air Conditioning |
| 50A | RDI FAN | Cooling Fan |
| 50A | RR DEF | Mirror Heater and Rear Window Defogger |
| 120A | ALT (w/o Smart Key System) | Automatic Light Control |
| Charging | ||
| Front Fog Light | ||
| Illumination | ||
| Light Auto Turn Off System | ||
| Power Window | ||
| Starting (w/o Smart Key System) | ||
| Taillight | ||
| Theft Deterrent | ||
| Wiper and Washer | ||
| Wireless Door Lock Control (w/o Smart Key System) | ||
| 140A | ALT (w/Smart Key System) | Automatic Light Control |
| Charging | ||
| Front Fog Light | ||
| Illumination | ||
| Light Auto Turn Off System | ||
| Power Window | ||
| Push-Button Start, Engine Immobiliser and Steering Lock | ||
| Taillight | ||
| Theft Deterrent | ||
| Wiper and Washer | ||
| Wireless Door Lock Control (w/Smart Key System) | ||
