Rear Axle Hub And Bearing: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH
   1. Remove the bolt and separate the flexible hose from the shock absorber.

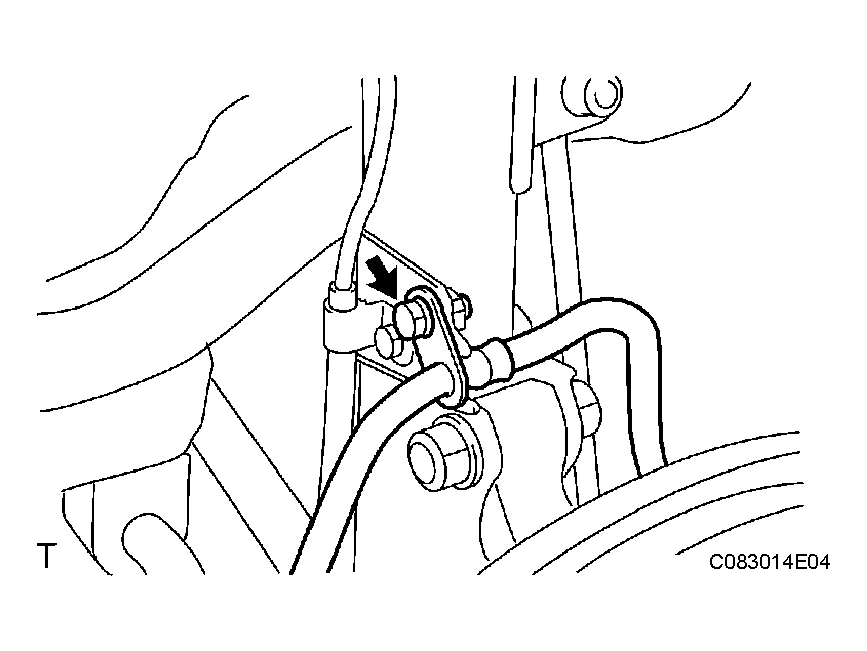

      Fig 1: Removing Bolt And Flexible Hose From Shock Absorber

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

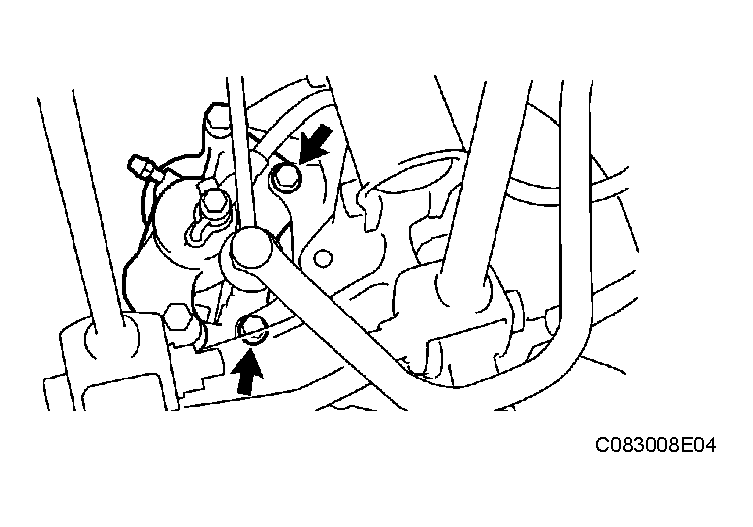

   2. Remove the 2 bolts and separate the rear disc brake caliper assembly LH.
      NOTE: Use a wire or an equivalent to keep the brake caliper from hanging down by the flexible hose.
3. REMOVE REAR DISC
4. DISCONNECT SKID CONTROL SENSOR
   1. Disconnect the skid control sensor connector.
      Fig 2: Disconnecting Skid Control Sensor Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE REAR AXLE HUB & BEARING ASSEMBLY LH
   1. Remove the 4 bolts and hub & bearing assembly LH.

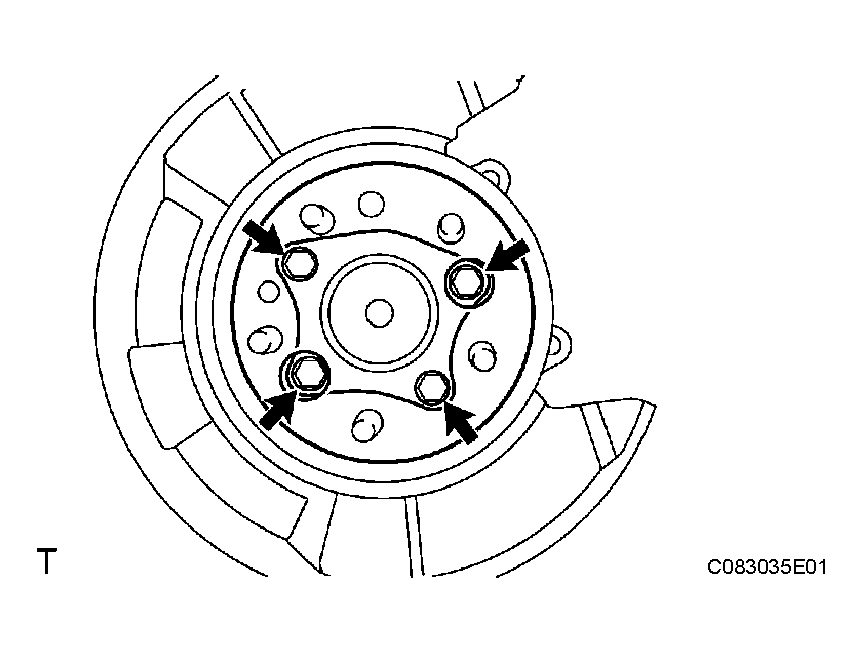

      Fig 3: Removing Bolts And Hub & Bearing Assembly LH
