Rear Axle Hub And Bearing: Installation

INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH
1. Install the hub & bearing assembly LH with the 4 bolts.

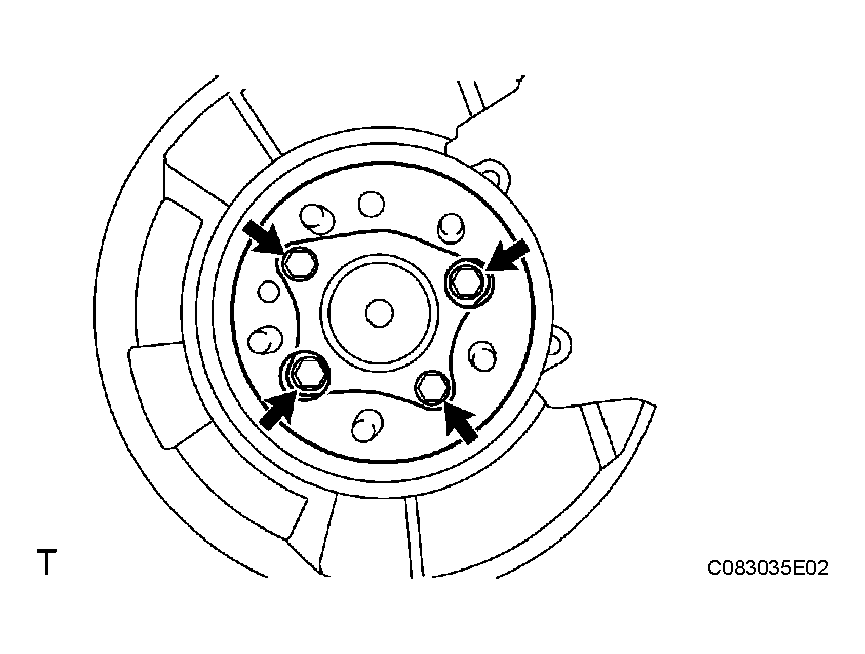

  Fig 1: Installing Hub & Bearing Assembly LH With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 80 N*m (816 kgf*cm, 59 ft.*lbf)
CONNECT SKID CONTROL SENSOR
1. Connect the skid control sensor connector.
  NOTE: Do not twist the sensor wire when connecting it.
INSPECT REAR AXLE HUB BEARING LOOSENESS (See step 4 under ON-VEHICLE INSPECTION )
INSPECT REAR AXLE HUB RUNOUT (See step 5 under ON-VEHICLE INSPECTION )
INSTALL REAR DISC
INSTALL REAR DISC BRAKE CALIPER ASSEMBLY LH
1. Install the rear disc brake caliper assembly LH with the 2 bolts.
  Torque: 62 N*m (632 kgf*cm, 46 ft.*lbf)

  NOTE: Do not twist the brake hose when installing the rear disc brake caliper assembly LH.

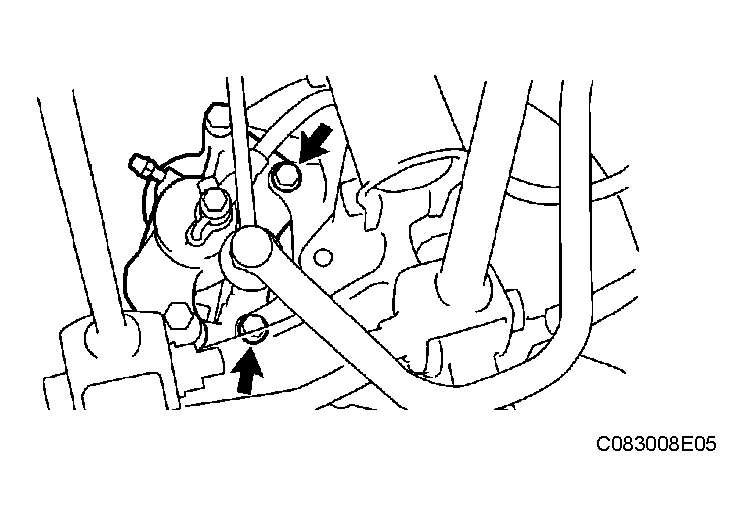

  Fig 2: Installing Rear Disc Brake Caliper Assembly LH With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear flexible hose with the bolt.
  Torque: 19 N*m (192 kgf*cm, 14 ft.*lbf)
INSTALL REAR WHEEL
Torque: 103 N*m (1.050 kgf*cm, 76 ft.*lbf)
ABS SPEED SENSOR SIGNAL
1. ABS WITH EBD & TRAC & VSC SYSTEM (See step 5 under TEST MODE PROCEDURE )
2. ABS WITH EBD SYSTEM (See TEST MODE PROCEDURE )

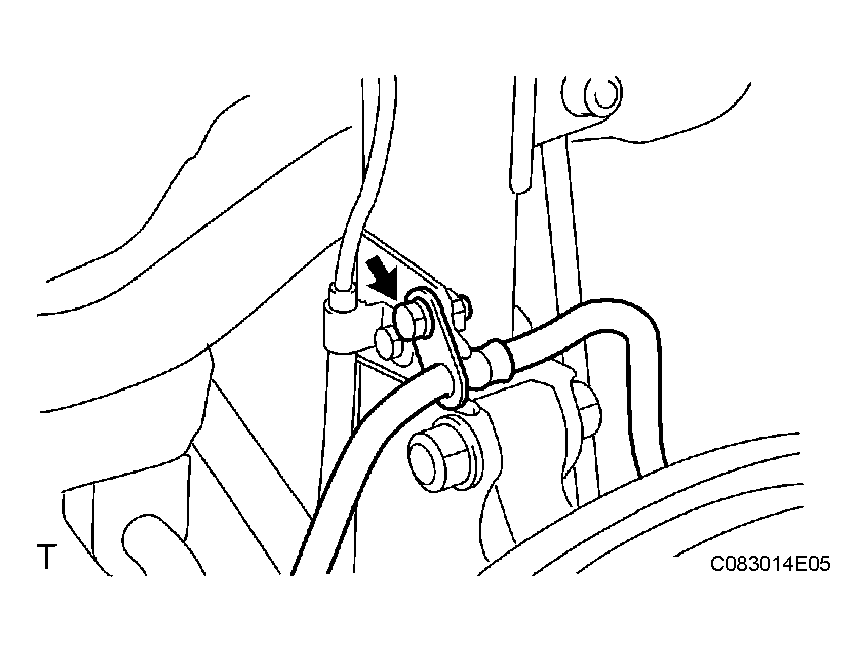

  Fig 3: Installing Rear Flexible Hose With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
