Parking Brake Assembly: Disassembly

REMOVE REAR WHEEL
SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH

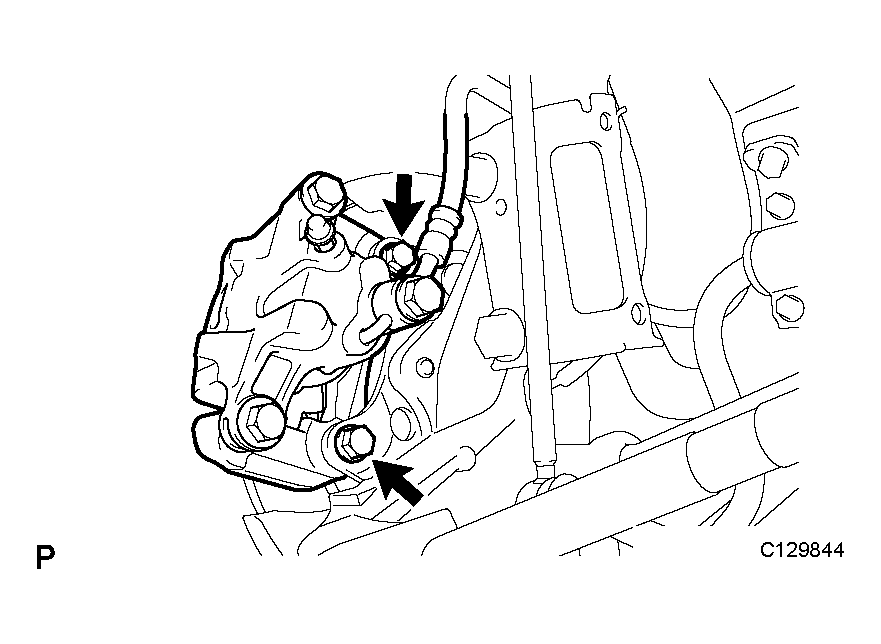

1. Remove the 2 bolts and separate the rear disc brake caliper assembly LH.
  HINT:

  Do not disconnect the flexible hose from the disc brake caliper assembly LH.

  Fig 1: Removing Bolts And Separate Rear Disc Brake Caliper Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR DISC
1. Release the parking brake.
2. Put matchmarks on the rear disc and the axle hub.

  Fig 2: Identifying Matchmarks On Rear Disc And Axle Hub
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the rear disc.
  HINT:

  If the disc cannot be removed easily, turn the shoe adjuster until the wheel turns freely.

  Fig 3: Turning Shoe Adjuster With Screw Driver
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE SHOE RETURN TENSION SPRING

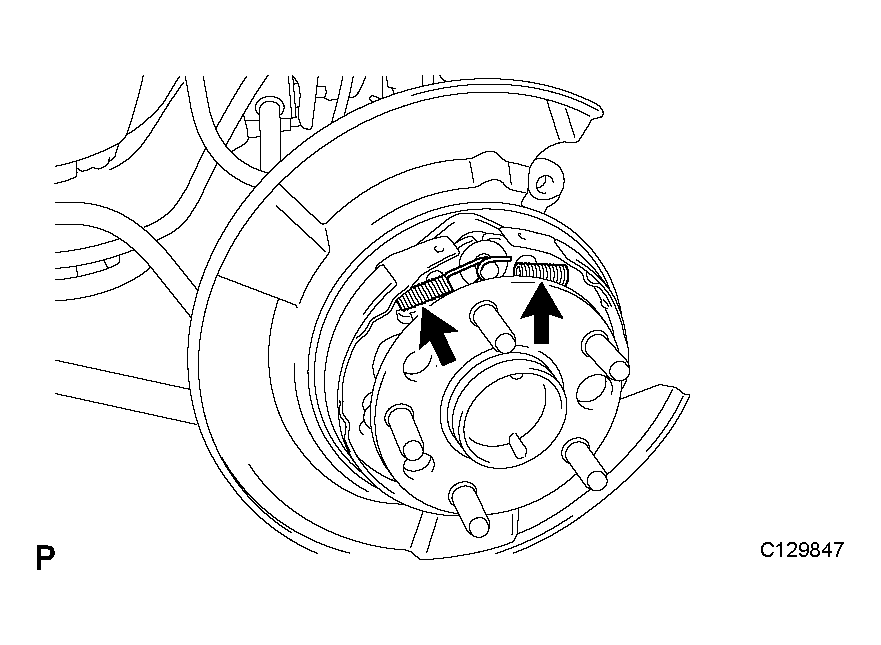

1. Using needle-nose pliers, remove the 2 return tension springs No.1.
REMOVE PARKING BRAKE SHOE STRUT LH
1. Remove the parking brake shoe strut LH and strut compression spring.

  Fig 4: Removing Return Tension Springs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE PARKING BRAKE SHOE
1. Release the spring cup claw and remove the parking brake shoe assembly LH No.2 and No.1.
2. Disconnect the parking brake cable assembly No.3 from the shoe lever.
3. Remove the return tension spring No.2 and adjusting screw set from the parking brake shoe assembly LH No.2 and No.1
4. Remove the 2 hold down compression springs, 4 hold down spring cups and 2 hold down spring pins.

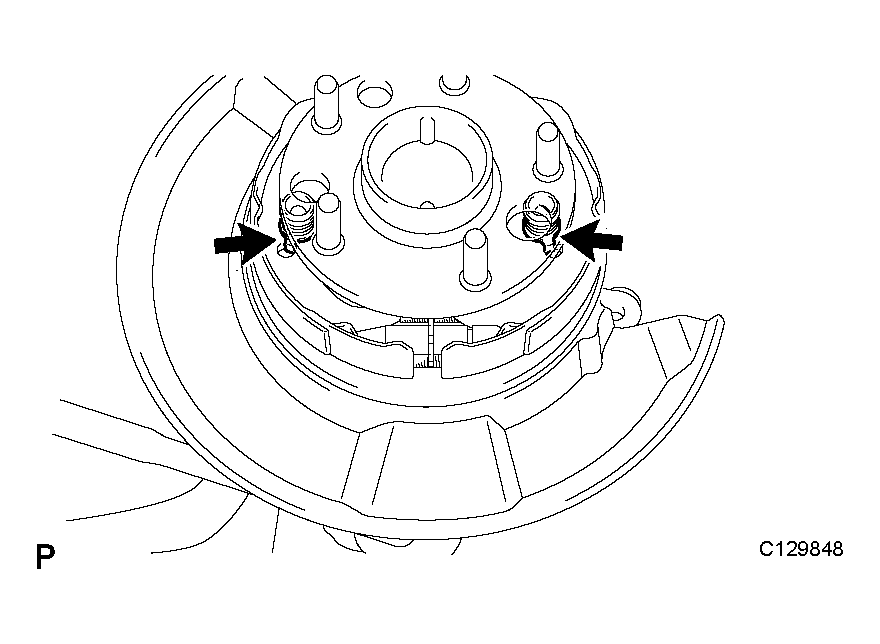

  Fig 5: Releasing Spring Cup Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a screwdriver, remove the C-washer.
6. Remove the shim and shoe lever from the parking brake shoe assembly LH No. 2.

  Fig 6: Removing Shim And Shoe Lever From Parking Brake Shoe Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
