Rear Brake Pad, Brake Caliper & Brake Rotor: Installation

1. Install the cylinder mounting LH with the 2 bolts.

   Torque: 62 N*m (630 kgf*cm, 46 ft.*lbf)

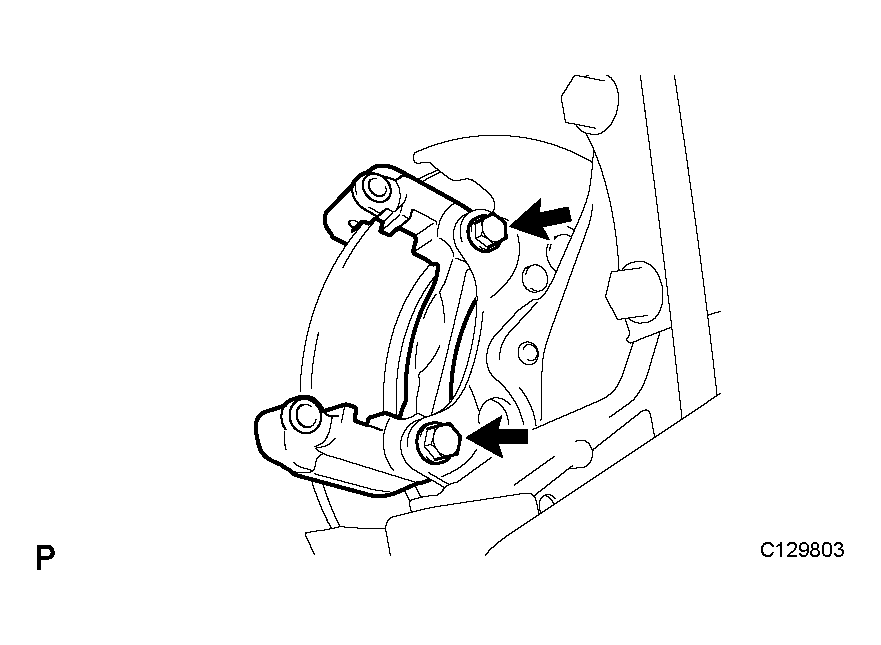

   Fig 1: Installing Rear Disc Brake Cylinder Mounting LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply lithium soap base glycol grease to the sealing surface of 2 new bush dust boots.
2. Install the 2 bush dust boots to the cylinder mounting LH.

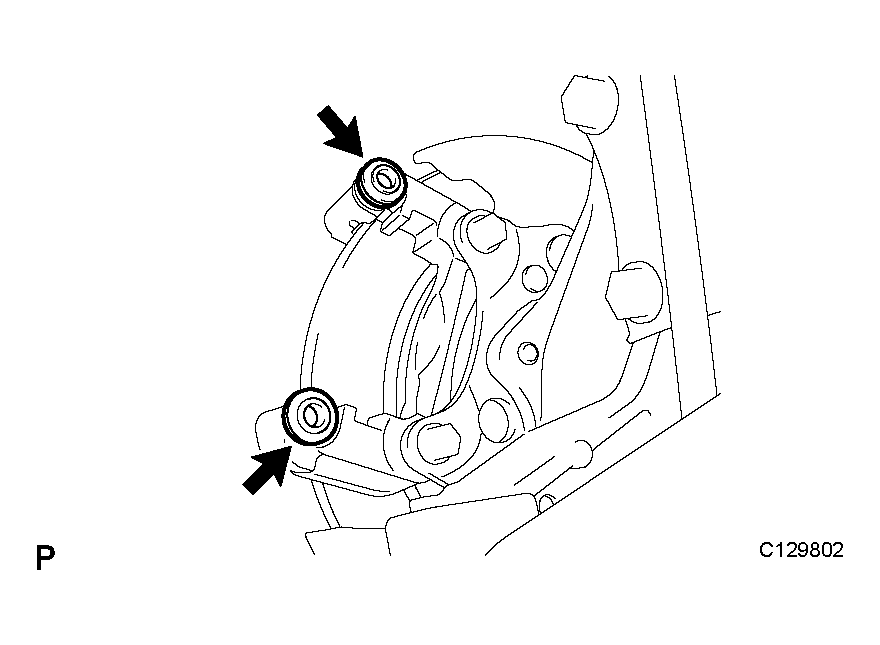

   Fig 2: Installing Rear Disc Brake Bush Dust Boot

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the pad support plate (No.1) to the cylinder mounting LH.

1. Install the pad support plate (No.2) to the cylinder mounting LH.

1. Apply disc brake grease to anti-squeal shim No.1 and No.4 and install them to each pad.
   NOTE:

   • When replacing worn pads, replace the antisqueal shims together with the pads.
   • Install the anti-squeal shims in the correct positions and directions.
2. Install anti-squeal shim No.2 and No.3 to each pad.
   NOTE: Install the anti-squeal shims in the correct positions and directions.
3. Install the pad wear indicator plate to the inner pad.
   NOTE: Install the pad wear indicator plate in the correct position and direction.

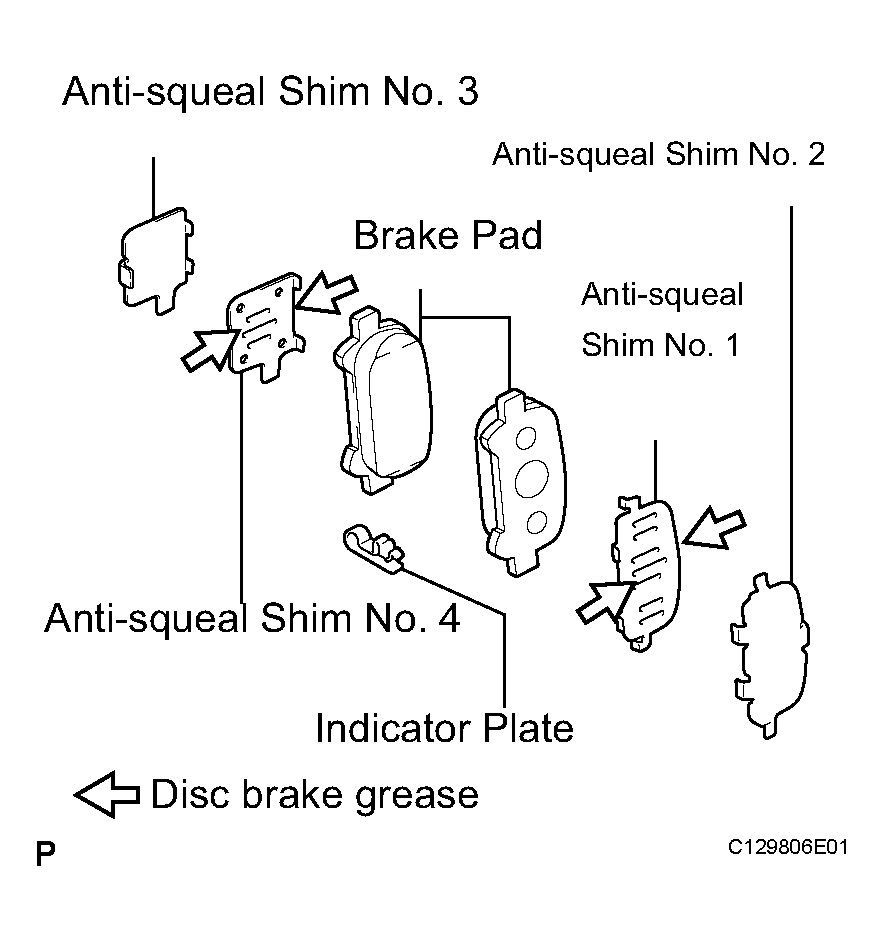

   Fig 3: Installing Pad Wear Indicator Plate To Inner Pad

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the 2 brake pads with the anti-squeal shims.
   NOTE:

   • There should be no oil or grease on the friction surface of the pads and the disc.
   • Install the inner pad with indicator plate facing downward.

1. Apply lithium soap base glycol grease to a new cylinder slide bush.
2. Install the cylinder slide bush to the cylinder slide pin (lower).

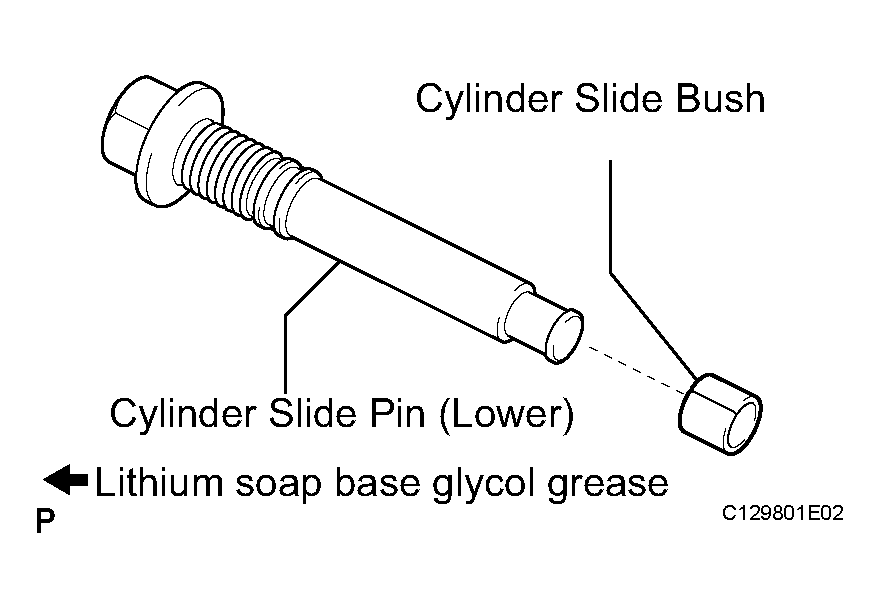

   Fig 4: Installing Cylinder Slide Bush To Cylinder Slide Pin

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply lithium soap base glycol grease to the sliding part and the seal surfaces of the cylinder slide pins.
2. Install the disc brake cylinder assembly rear with the 2 cylinder slide pins.

   Torque: 43 N*m (440 kgf*cm, 32 ft.*lbf)

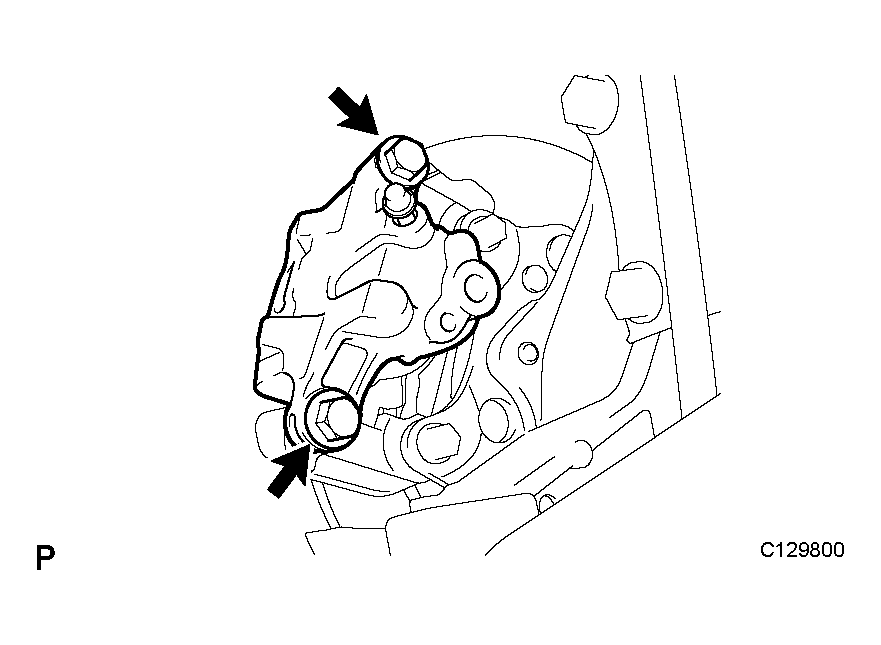

   Fig 5: Installing Disc Brake Cylinder Assembly Rear With Cylinder Slide Pins

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the flexible hose with the union bolt and 2 new gaskets.

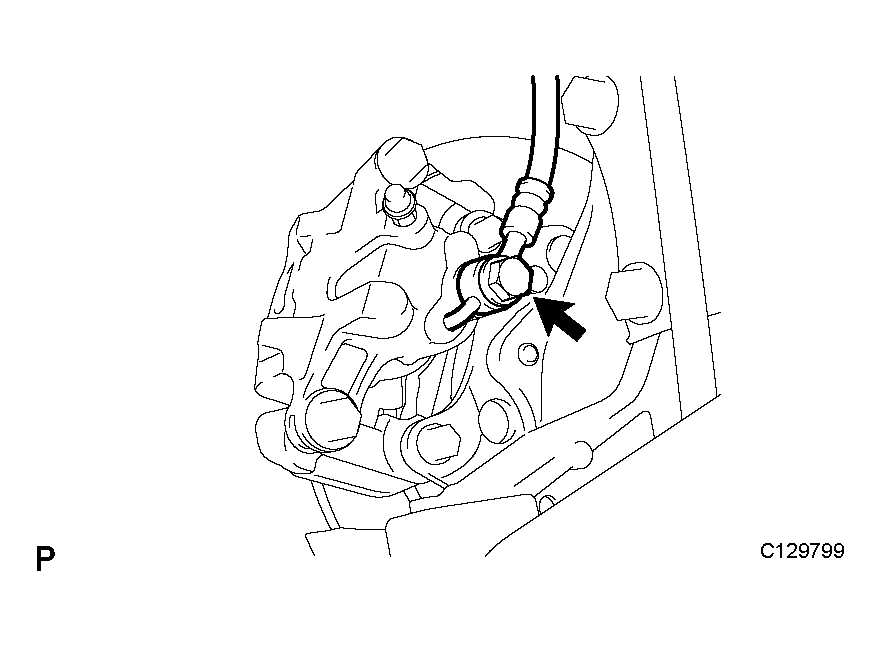

   Fig 6: Installing Flexible Hose Lock

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 29 N*m (300 kgf*cm, 22 ft.*lbf)

   NOTE: Install the flexible hose lock securely in the lock hole in the disc brake cylinder assembly rear.

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)
