Rear Brake Pad, Brake Caliper & Brake Rotor: Disassembly

REMOVE CYLINDER BOOT
1. Using a screwdriver, remove the set ring and cylinder boot.
  NOTE: Do not damage the piston groove and cylinder groove.

  HINT:

  Tape the screwdriver tip before use.

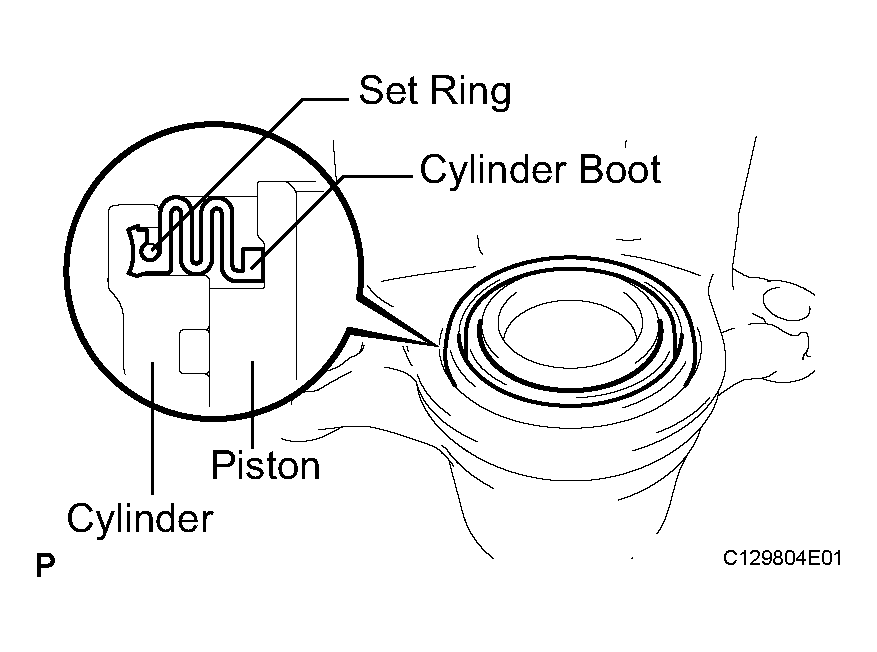

  Fig 1: Removing Cylinder Boot
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR DISC BRAKE PISTON
1. Place a shop rag or a piece of cloth between the piston and the disc brake cylinder.
2. Use compressed air to remove the piston from the disc brake cylinder.
  CAUTION: Do not place your fingers in front of the piston when using compressed air.

  NOTE: Do not spatter the brake fluid.

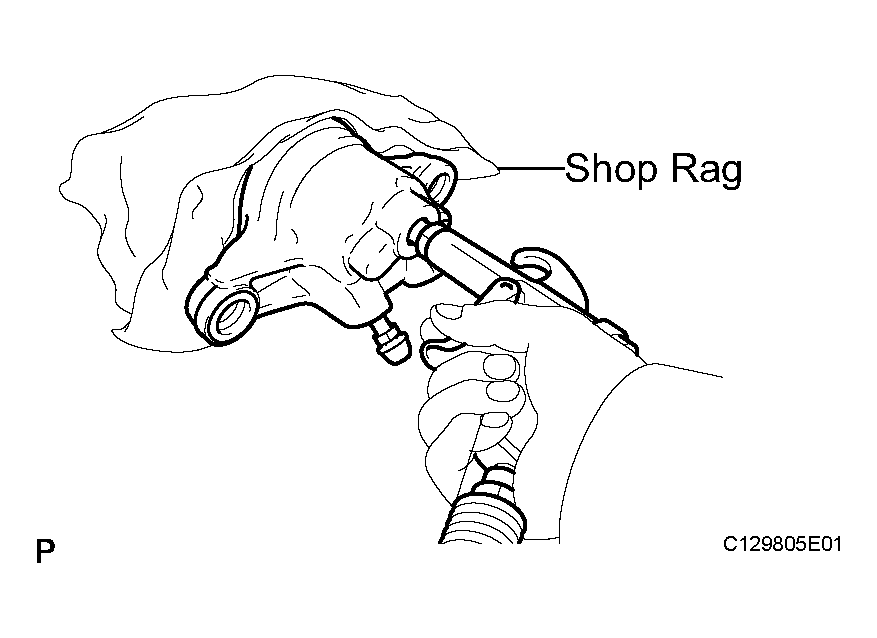

  Fig 2: Removing Rear Disc Brake Piston
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

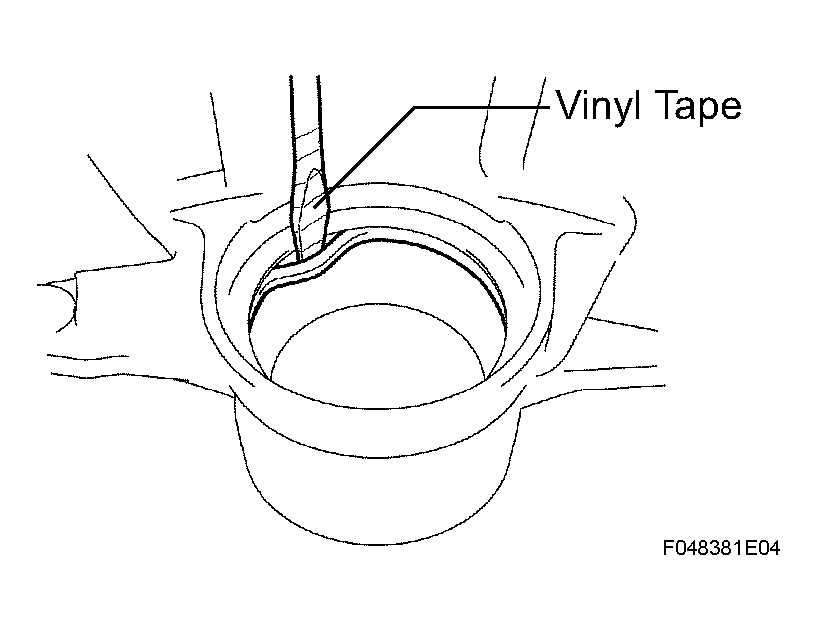

REMOVE PISTON SEAL
1. Using a screwdriver, remove the piston seal from the brake cylinder.

  Fig 3: Removing Rear Disc Brake Bleeder Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Do not damage the inner cylinder and the cylinder groove.

  HINT:

  Tape the screwdriver tip before use.
REMOVE REAR DISC BRAKE BLEEDER PLUG CAP
REMOVE REAR DISC BRAKE BLEEDER PLUG
